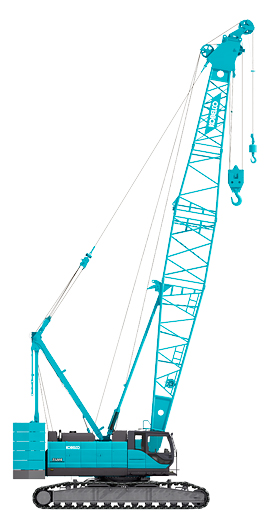

7120S

7120S

Multi-Purpose Crawler Cranes
Operationeel gewicht + 50 t
SPECIFICATIONS

Key specifications for 7120S

Weights
Operating Weight 120000 kg
Counterweight 53110 kg
Base Machine Weight 34800 kg
Ground Pressure 93.6 kPa
Performance
Swing Speed 2.1 rpm
Travel Speed Low 0.9 kph
Travel Speed High 1.3 kph
Max Line Speed 120 m/min
Rated Line Pull 118 kN
Wire Rope Diameter 26 mm
Main Rope Length 275 m
Auxiliary Rope Length 255 m
Hydraulic System
Main Pump Max Flow 4 L/min
Hydraulic System Max Pressure 319 bar
Capacities
Fuel Tank Capacity 400 L
Hydraulic Tank Capacity 455 L
Dimensions
Transportation Width 6310 mm
Transportation Height 3215 mm
Crawler Width 6310 mm
Crawler Length 7895 mm
Tail Swing Radius 4950 mm
Shoe Width 910 mm
Engine
Engine Manufacturer Hino
Engine Model P11C-VH
Engine Power 271 kW
Rated Speed 1850
Displacement 10.52 L
Cooling Water
Aspiration Turbocharged
Charged Air Cooling Intercooler
Cylinders 6
Main Boom
Main Boom Length 61 m
Main Boom Max Lifting Capacity 120000 kg
Fixed Jib
Fixed Jib Length 30.5 m
Fixed Jib Max Lifting Capacity 12000 kg
