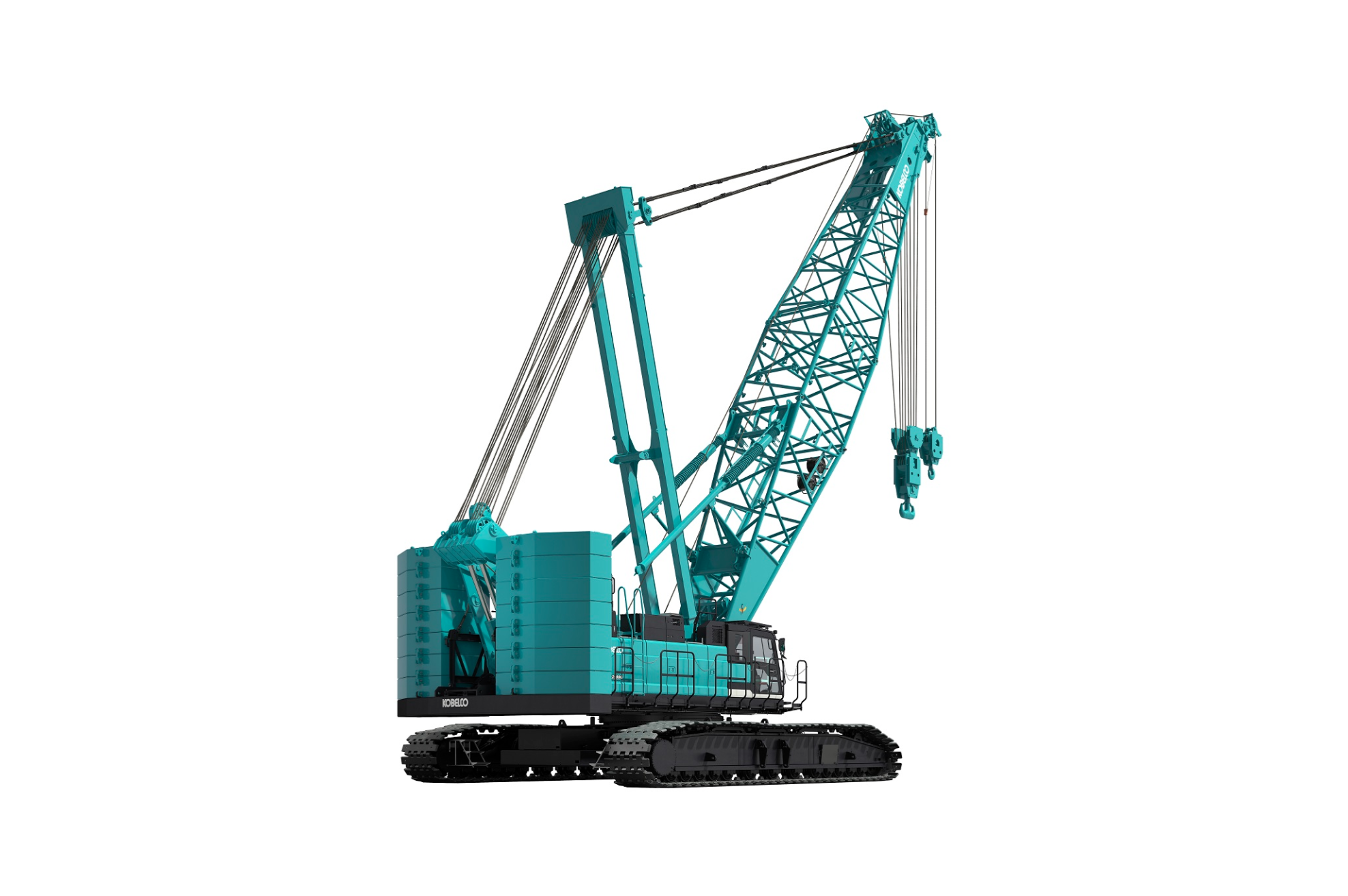

CKE2500G-4

CKE2500G-4

Cranes
Operationeel gewicht + 50 t
SPECIFICATIONS

Key specifications for CKE2500G-4

Weights
Operating Weight 222800 kg
Counterweight 91000 kg
Base Machine Weight 44770 kg
Ground Pressure 113.4 kPa
Performance
Swing Speed 2.2 rpm
Travel Speed Low 0.5 kph
Travel Speed High 1 kph
Max Line Speed 110 m/min
Rated Line Pull 132 kN
Wire Rope Diameter 26 mm
Main Rope Length 460 m
Auxiliary Rope Length 390 m
Hydraulic System
Main Pump Max Flow 4 L/min
Hydraulic System Max Pressure 319 bar
Capacities
Fuel Tank Capacity 400 L
Hydraulic Tank Capacity 550 L
DEF Capacity 30 L
Counterweight
Self Removal Device Standard
Dimensions
Transportation Width 7620 mm
Transportation Height 3360 mm
Crawler Width 7620 mm
Crawler Length 8970 mm
Tail Swing Radius 6000 mm
Shoe Width 1220 mm
Engine
Engine Manufacturer Isuzu
Engine Model 6UZ1
Engine Power 270 kW
Rated Speed 2000
Displacement 9.839 L
Cooling Water
Aspiration Turbocharged
Charged Air Cooling Intercooler
Cylinders 6
Main Boom
Main Boom Length 15.2 m
Main Boom Max Lifting Capacity 250000 kg
