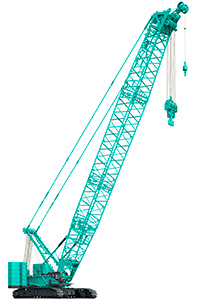

CKS3000

CKS3000

Multi-Purpose Crawler Cranes
Operationeel gewicht + 50 t
SPECIFICATIONS

Key specifications for CKS3000

Weights
Operating Weight 325000 kg
Counterweight 120000 - 160000 kg
Base Machine Weight 41340 kg
Ground Pressure 148 kPa
Performance
Swing Speed 1.7 rpm
Travel Speed Low 0.6 kph
Travel Speed High 1 kph
Rated Line Pull 147 kN
Wire Rope Diameter 28 mm
Main Rope Length 600 m
Hydraulic System
Hydraulic System Max Pressure 319 bar
Capacities
Fuel Tank Capacity 600 L
Hydraulic Tank Capacity 860 L
Counterweight
Self Removal Device Optional
Dimensions
Transportation Width 2990 mm
Transportation Height 3400 mm
Crawler Width 8000 mm
Crawler Length 10000 mm
Tail Swing Radius 7300 mm
Shoe Width 1220 mm
Engine
Engine Manufacturer Scania
Engine Model DC13 76A
Engine Power 331 kW
Rated Speed 2100
Displacement 12.7 L
Cooling Water
Cylinders 6
Main Boom
Main Boom Length 24 - 72 m
Main Boom Max Lifting Capacity 26500 - 300000 kg
Fixed Jib
Fixed Jib Length 12.2 m
Luffing Jib
Luffing Jib Length 24 m
Other
Attribute 15338 30 m
Attribute 15340 40000 kg
