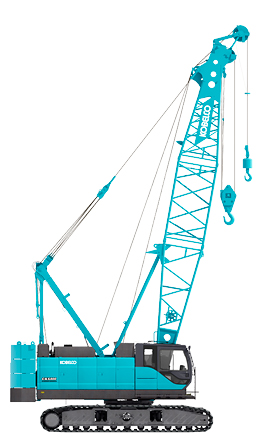

CKS800

CKS800

Multi-Purpose Crawler Cranes

The KOBELCO CKS800 is a compact lattice boom crawler crane designed for efficient lifting and foundation work in confined spaces. It delivers reliable lifting performance, robust durability and flexible configurations, making it ideal for civil engineering, piling and general construction projects where manoeuvrability and stability are key.

Industry Foundation General lifting
Operating weight + 50 t
SPECIFICATIONS

Key specifications for CKS800

Weights
Operating Weight 75100 kg
Counterweight 27200 kg
Base Machine Weight 39850 kg
Ground Pressure 84.7 kPa
Performance
Swing Speed 4 rpm
Travel Speed Low 1.1 kph
Travel Speed High 1.7 kph
Max Line Speed 120 m/min
Rated Line Pull 78 kN
Wire Rope Diameter 22 mm
Main Rope Length 220 m
Auxiliary Rope Length 130 m
Hydraulic System
Main Pump Max Flow 3 L/min
Hydraulic System Max Pressure 319 bar
Capacities
Fuel Tank Capacity 400 L
Hydraulic Tank Capacity 375 L
Counterweight
Self Removal Device Optional
Dimensions
Transportation Width 3500 mm
Transportation Height 3300 mm
Crawler Width 5130 mm
Crawler Length 6280 mm
Tail Swing Radius 4300 mm
Shoe Width 800 mm
Engine
Engine Manufacturer Hino
Engine Model J08E-VM
Engine Power 213 kW
Rated Speed 2100
Displacement 7.684 L
Cooling Water
Aspiration Turbocharged
Charged Air Cooling Intercooler
Cylinders 6
Main Boom
Main Boom Length 54.9 m
Main Boom Max Lifting Capacity 80000 kg
Fixed Jib
Fixed Jib Length 18.3 m
Fixed Jib Max Lifting Capacity 7000 kg
For more detailed information, please download the brochure and specifications.
