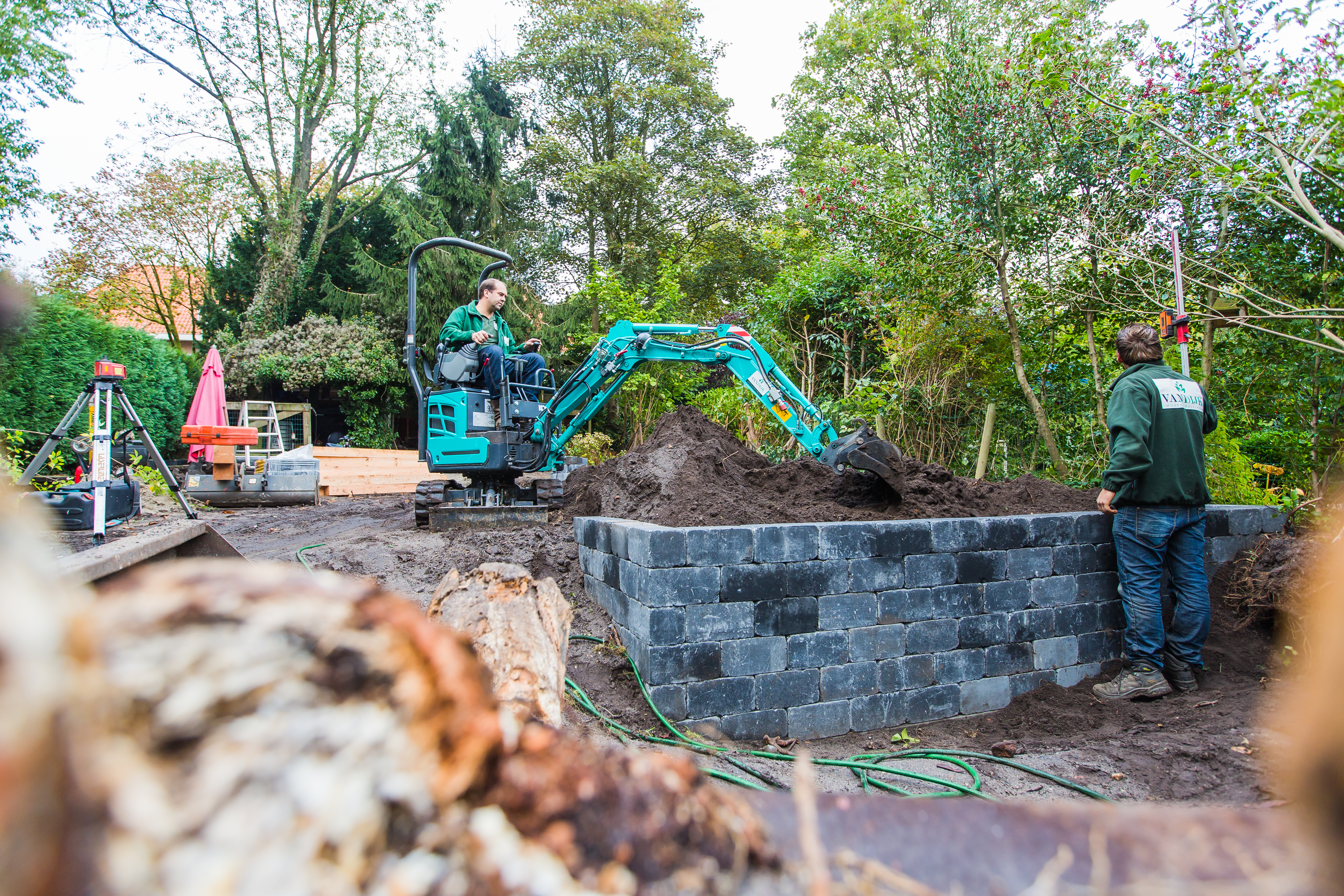

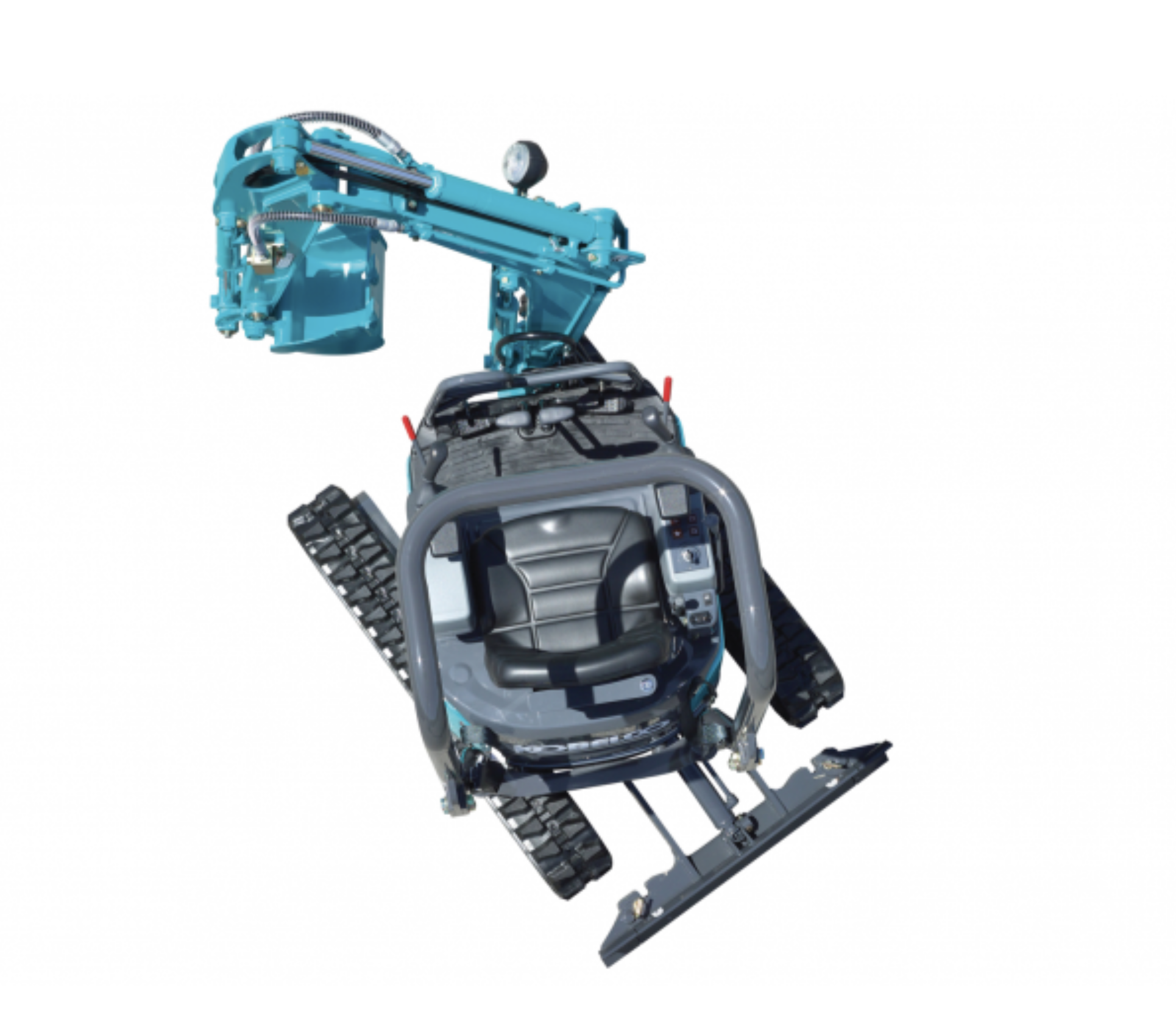

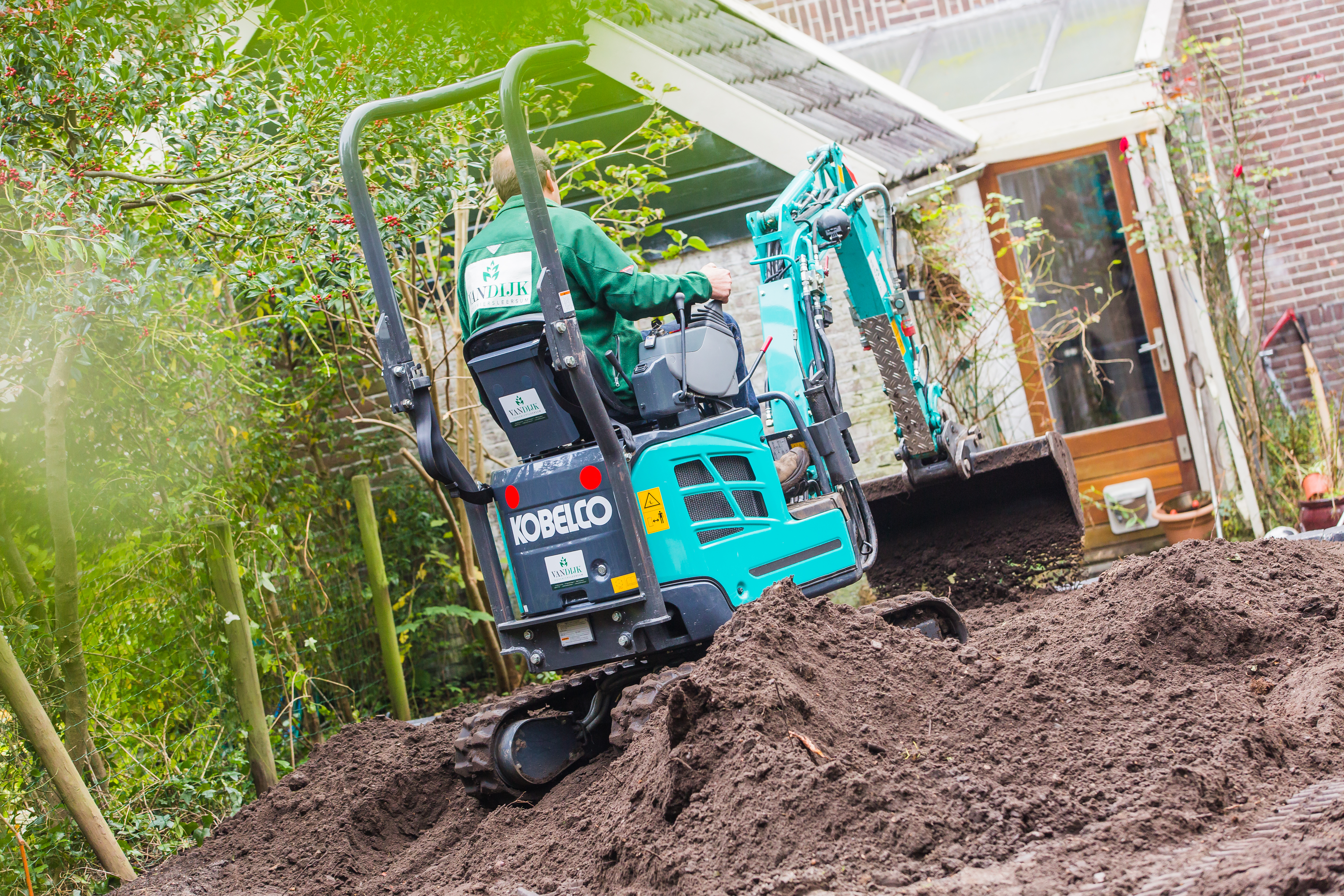

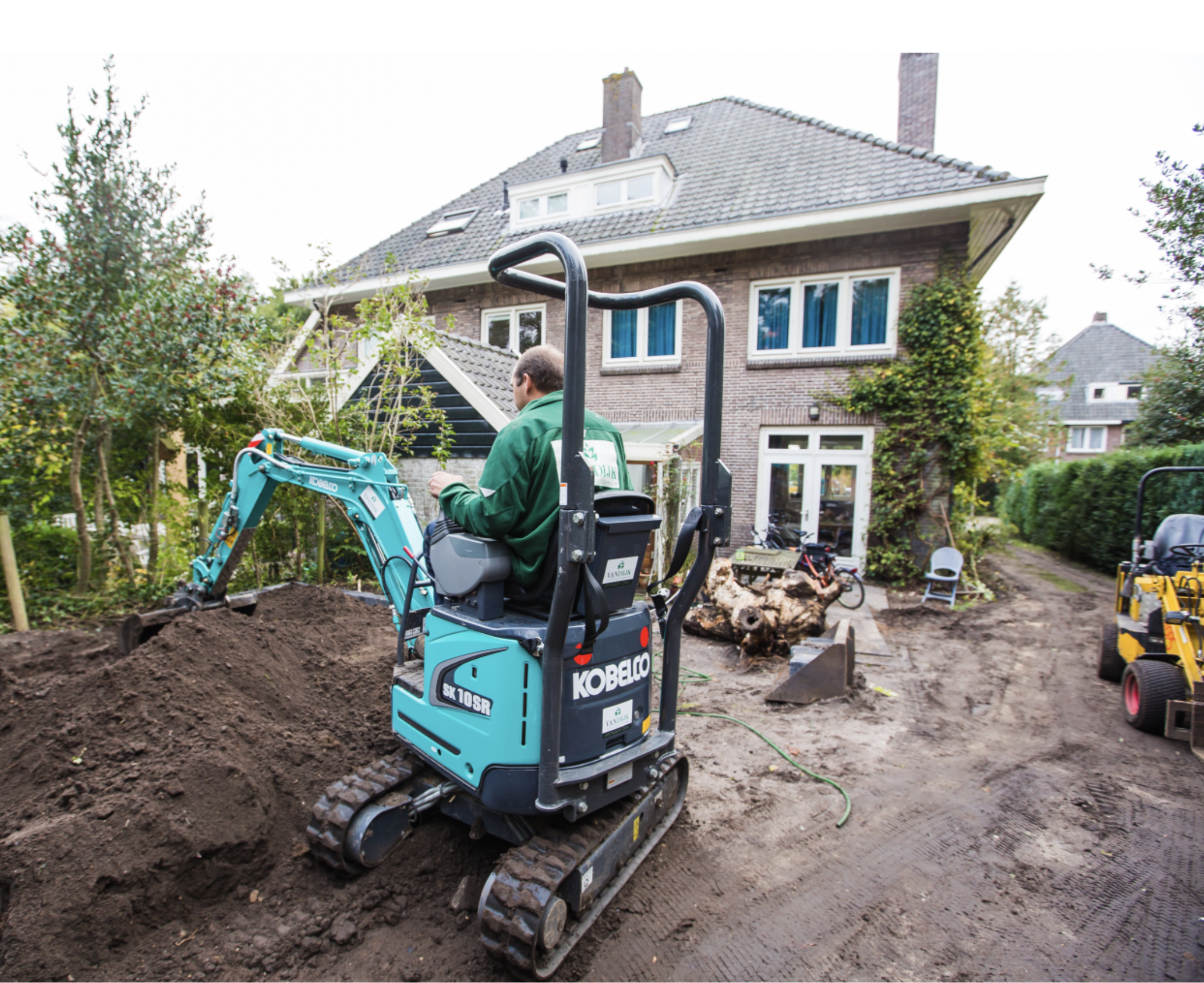

SK10SR-2E

Mini Excavators

Operationeel gewicht 0 - 6 t

SPECIFICATIONS

Key specifications for SK10SR-2E

Description

Driveline

Dimensions

Mono Boom	2880 mm
Mono Boom - Longest Dipper	2880 mm
Without Boom	1540 mm
Max Length	3090 mm
Without Boom	2190 mm
Max Height	2190 mm
Superstructure	750 mm
Undercarriage	800 mm
Overall Width	980 mm
Track Length On Ground	1010 mm
Undercarriage Length	1340 mm
Tailswing Radius	750 mm
Tail Length	665 mm
Tail Swing Overhang (Rear)	80 mm
Zero Tailswing	No
Canopy	2190 mm
Counterweight Clearance	390 mm
Ground Clearance	150 mm
Capacity Rating Standard	ISO 7451
Reference Capacity	0.022 m³
Available	Standard
Type	Straight
Height	200 mm
Retracted Width	750 mm
Extended Width	980 mm
Raised Height	190 mm
Dig Depth	240 mm
Variable Undercarriage Available	Yes
Track Gauge - Retracted	570 mm
Track Gauge - Extended	750 mm
Track Width - Retracted	800 mm
Track Width - Extended	980 mm
Tailswing Within Retracted Tracks	No
Tailswing Within Extended Tracks	No
Tail Swing Overhang (Side)	260 mm
Digging Reach	3300 mm
Ground Level Reach	3210 mm
Dig Height	3160 mm
Dump Height	2320 mm
Vertical Wall	1460 mm
Dig Depth	1750 mm
Front Slew Radius	1390 mm
Boom Swing - Left	80 °
Boom Swing - Right	50 °
Left Digging Offset	525 mm
Right Digging Offset	480 mm
Rating Standard	ISO 10567
Standard Dipper	925 mm
Longest Dipper	925 mm
Track Shoe Width	180 mm
Reach At Ground Level	2.76 m

Capacities

Performance

Ground Bearing Pressure	28 kPa
Standard Shoe Width	180 mm
Ground Bearing Pressure - No Cab	28 kPa
Slew Speed	9 rpm
Slew Torque	1.61 kNm
Travel Alarm	Yes
Travel Speed - Low	2 kph
Travel Speed - High	3.7 kph
Tractive Force	10.2 kN
Dipper Tearout	6.2 kN
Bucket Breakout	10.8 kN
Gradeability	30 °
Gradeability	58 %
Lift Quoted With Bucket	No
Lift Quoted With Dozer-Up/Down	Up
End Lift - 2.0m	200 kg
Side Lift - 2.0m	170 kg
End Lift - Max	120 kg
Side Lift - Max	100 kg
End Lift - Longest Dipper Max	120 kg
Side Lift - Longest Dipper Max	100 kg
Type	Variable axial piston
Main Pumps	2
Auxiliary Pump	Gear
Per Pump	11 L/min
Main Pump - Total	22 L/min
Auxiliary	6 L/min
Boom	206 bar
Dipper	206 bar
Attachment	206 bar
Travel	206 bar
Track	2 Speed Axial Piston Auto Shift
Per Side	1
Slew	Fixed axial piston
Slew Motors	1
Sensing Type	Load Sensed
Centre	Pressure and Flow compensation

Weights

Canopy	1065 kg
