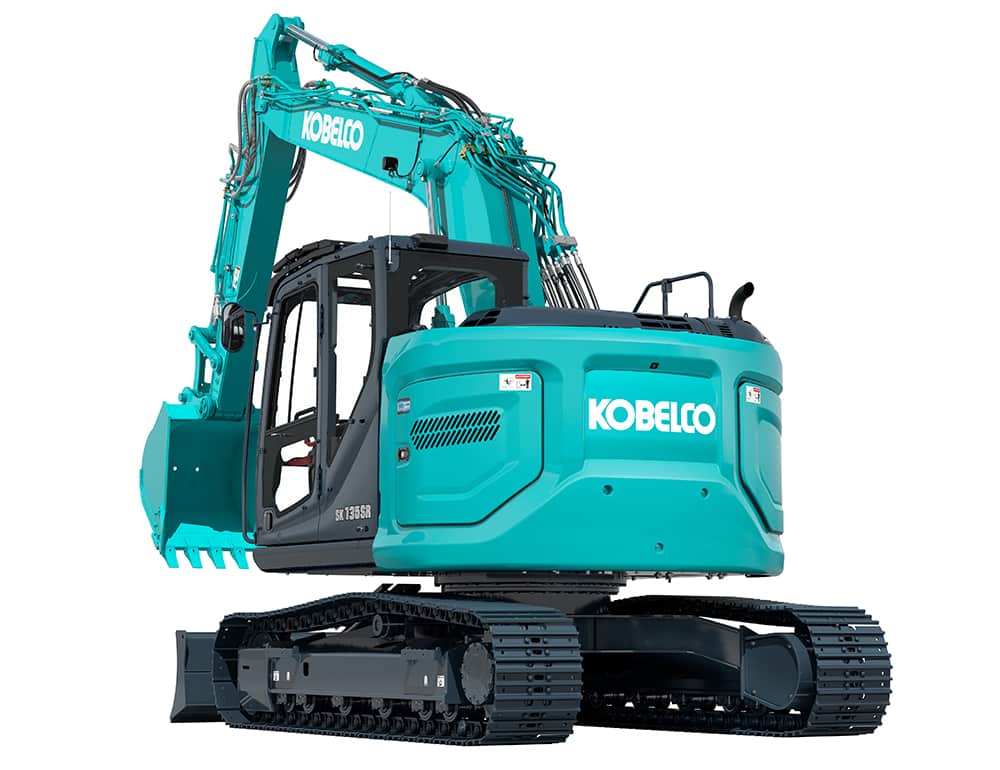

SK135SR-7
SK135SR-7
SK135SR-7

SK135SR-7

SR Series
Operationeel gewicht 10 - 18 t
SPECIFICATIONS

Key specifications for SK135SR-7

Description
Number Of Boom Options 1
Rear View Camera Yes
Number Of Mono Booms 1
Boom Size 4.68 m
Number Of Dipper Options 2
Min Dipper Length 2380 mm
Max Dipper Length 2840 mm
Dipper Length 2380 mm
Operating Weight 14000 kg
Counterweight 3150 kg
Telematics
Available Yes
Driveline
Manufacturer Isuzu
Model 4JJ1XDJA
Aspiration Turbo, charge air cooled
Cooling Water
Cylinders 4
Displacement 2.999 L
Rated Speed 2000 rpm
Net Rating Standard ISO 9249
Net Output 35.4 kW
Gross Rating Standard ISO 14396
Gross Output 73 kW
Torque 365 Nm
Torque Rated Speed 1600 rpm
Carrier Rollers Per Side 1
Track Rollers Per Side 6
Shoe Width 500 mm
Shoe Type Triple grouser
Track Shoes Per Side 44
Dimensions
Mono Boom 7430 mm
Over Boom 2740 mm
Without Boom 2810 mm
Max Height 3140 mm
Superstructure 2480 mm
Undercarriage 2490 mm
Overall Width 2690 mm
Track Length On Ground 2870 mm
Undercarriage Length 3580 mm
Tailswing Radius 1490 mm
Tail Length 1490 mm
Zero Tailswing No
Cab 2810 mm
Counterweight Clearance 870 mm
Ground Clearance 440 mm
Capacity Rating Standard ISO
Reference Capacity 0.5 m³
Min Capacity 0.24 m³
Max Capacity 0.57 m³
Reference Weight 390 kg
Min Weight 280 kg
Max Weight 410 kg
Available Optional
Width Over Tracks 2490 mm
Track Gauge 1990 mm
Variable Undercarriage Available No
Digging Reach 8370 mm
Ground Level Reach 8210 mm
Dig Height 9180 mm
Dump Height 6750 mm
Vertical Wall 4500 mm
Dig Depth - 2.44m (8ft) Flat Bottom 5290 mm
Dig Depth 5520 mm
Front Slew Radius 2130 mm
Rating Standard BS 1757: 1986
Reach At Ground Level 6.94 m
Capacities
Fuel Tank 186 L
Engine Oil 17 L
Cooling System 17 L
Hydraulic Tank 89.9 L
Hydraulic System 176 L
Performance
Ground Bearing Pressure 44 kPa
Slew Speed 11 rpm
Travel Speed - Low 3.4 kph
Travel Speed - High 5.6 kph
Tractive Force 141 kN
Boost Pressure Used For Breakout Unlisted
Dipper Tearout 64 kN
Bucket Breakout 105.4 kN
Gradeability 35 °
Gradeability 70 %
Lift Quoted With Bucket No
Lift Quoted With Quick-Hitch No
End Lift - 3.0m 6040 kg
Side Lift - 3.0m 5010 kg
End Lift - 4.5m 4290 kg
Side Lift - 4.5m 2780 kg
End Lift - 6.0m 2820 kg
Side Lift - 6.0m 1880 kg
End Lift - Max 2000 kg
Side Lift - Max 1530 kg
Main Pumps 2
Main Pump - Total 160 L/min
Boom 343 bar
Dipper 343 bar
Attachment 343 bar
Weights
Mono Boom 14000 kg
