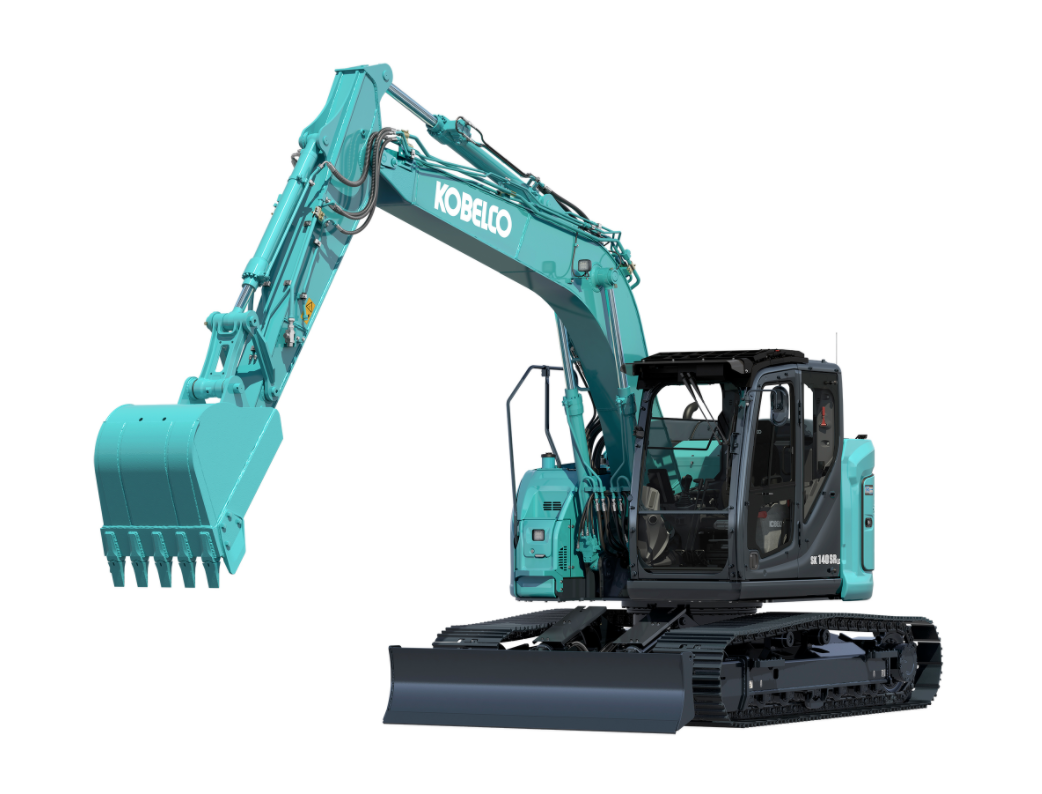

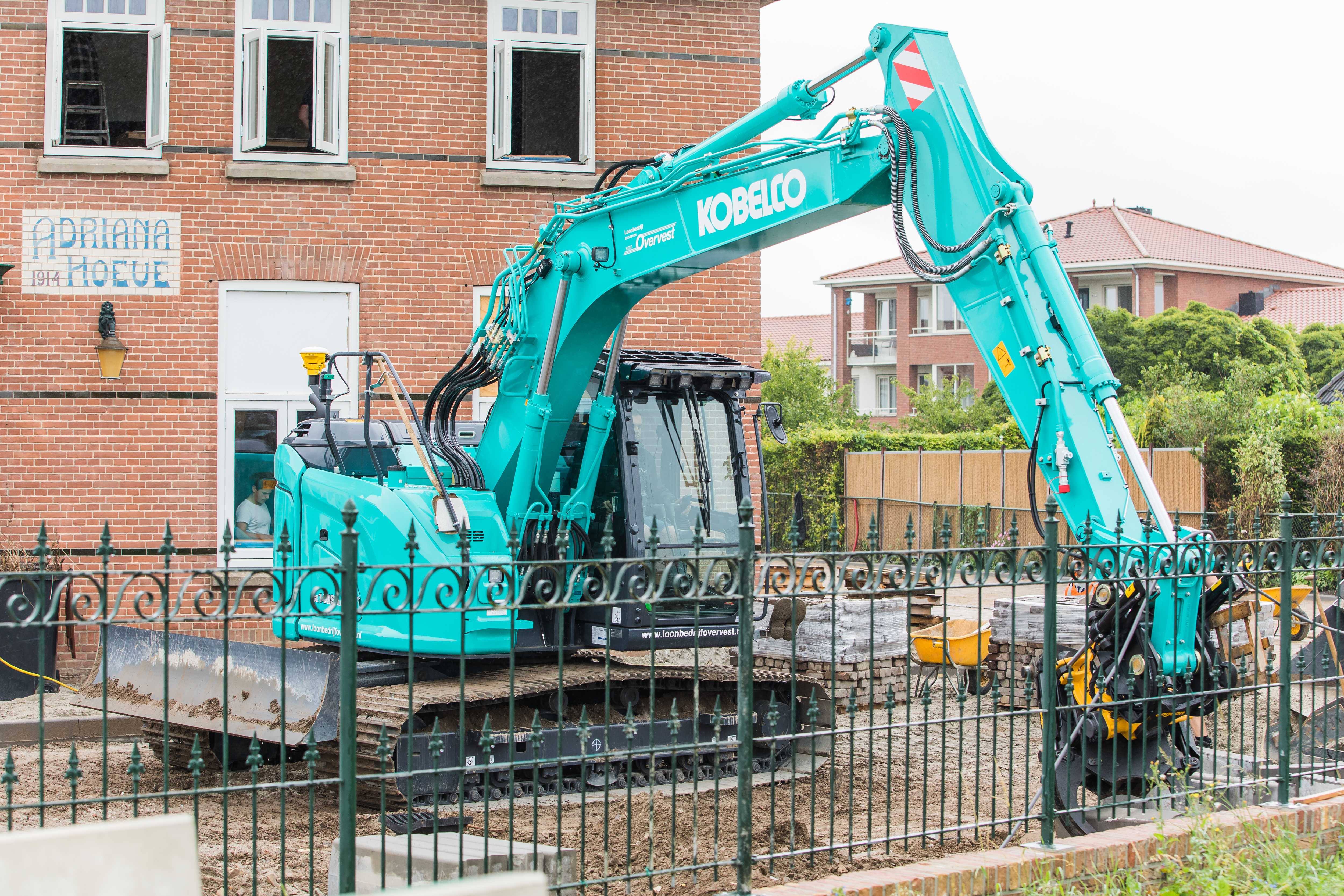

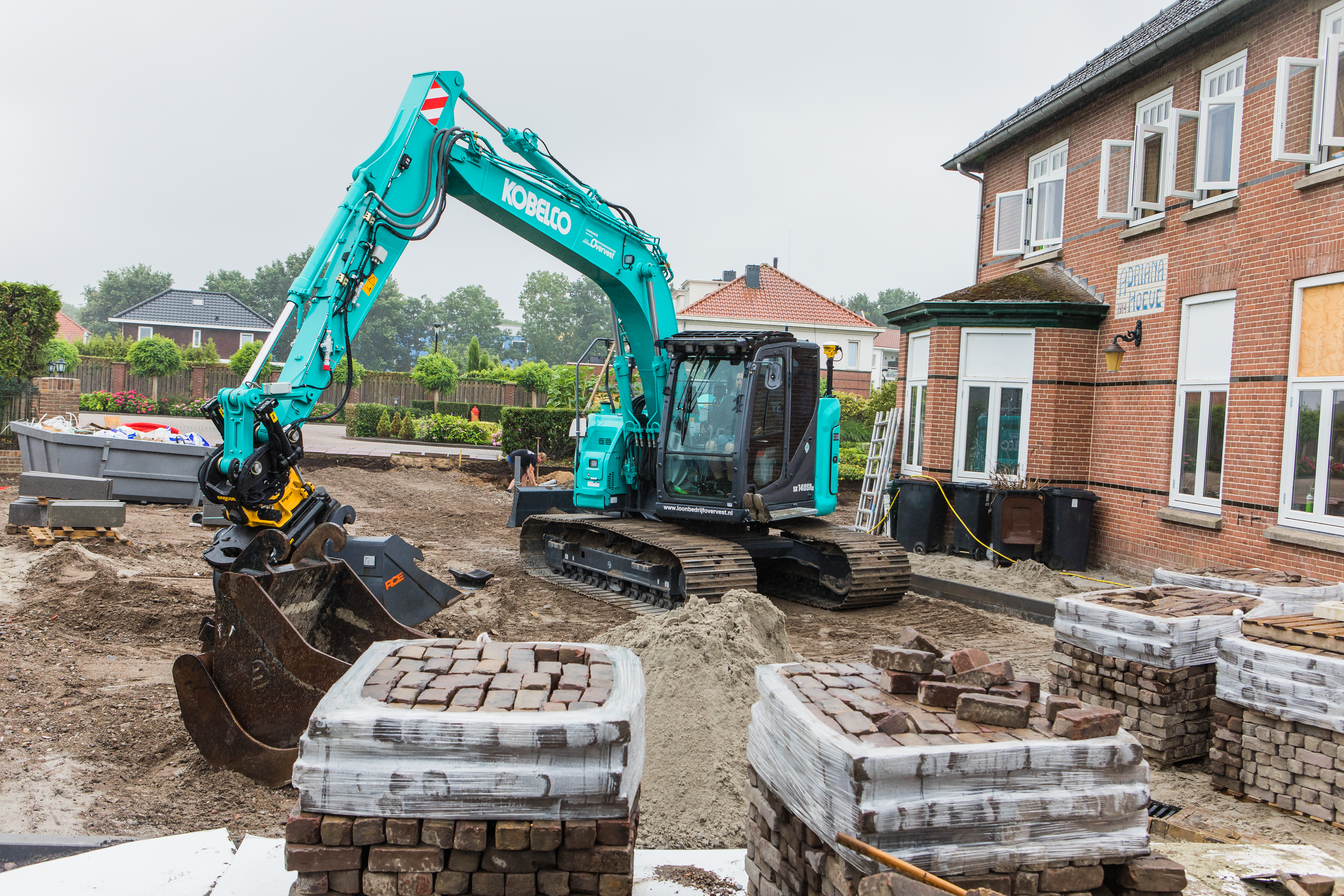

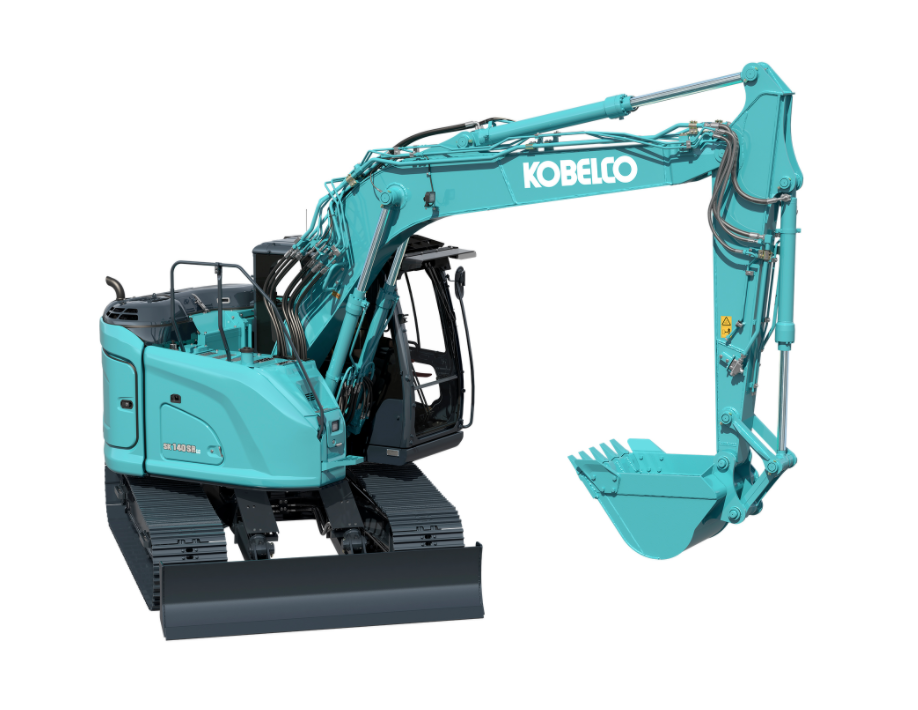

SK140SRLC-7
SK140SRLC-7
SK140SRLC-7
SK140SRLC-7
SK140SRLC-7
SK140SRLC-7
SK140SRLC-7

SK140SRLC-7

SR Series
Operationeel gewicht 10 - 18 t
SPECIFICATIONS

Key specifications for SK140SRLC-7

Description
Number Of Boom Options 1 - 2
Rear View Camera Yes
Number Of Mono Booms 1
Boom Size 4.68 m
Number Of Dipper Options 2
Min Dipper Length 2380 mm
Max Dipper Length 2840 mm
Number Of Articulated Booms 1
Number Of Dipper Options 2
Min Dipper Length 2380 mm
Max Dipper Length 2840 mm
Dipper Length 2840 mm
Operating Weight 15400 - 16100 kg
Counterweight 3150 kg
Telematics
Available Yes
Driveline
Emission Rating Stage V
Manufacturer Isuzu
Model 4JJ1XDDV A01
Aspiration Turbo
SCR Yes
Cooling Water
Cylinders 4
Displacement 2.999 L
Rated Speed 2200 rpm
Net Rating Standard ISO 9249
Net Output 78.6 kW
Gross Rating Standard ISO 14396
Gross Output 86 kW
Torque 375 Nm
Torque Rated Speed 1800 rpm
Carrier Rollers Per Side 2
Track Rollers Per Side 7
Shoe Width 600 mm
Shoe Type Triple grouser
Track Shoes Per Side 46
Dimensions
Mono Boom 7550 mm
Articulated Boom 8080 mm
Over Boom 3140 mm
Without Boom 2870 mm
Max Height 3140 mm
Over Articulated Boom 3090 mm
Superstructure 2480 mm
Undercarriage 2590 mm
Overall Width 2590 mm
Track Length On Ground 3040 mm
Undercarriage Length 3780 mm
Tailswing Radius 1490 mm
Tail Length 1490 mm
Zero Tailswing No
Cab 2870 mm
Counterweight Clearance 880 mm
Ground Clearance 425 mm
Capacity Rating Standard ISO
Reference Capacity 0.38 m³
Min Capacity 0.24 m³
Max Capacity 0.7 m³
Reference Weight 340 kg
Min Weight 280 kg
Max Weight 440 kg
Available Optional
Type Straight
Width 2590 mm
Raised Height 515 mm
Dig Depth 575 mm
Width Over Tracks 2590 mm
Track Gauge 1990 mm
Variable Undercarriage Available No
Digging Reach 8810 mm
Ground Level Reach 8660 mm
Dig Height 9560 mm
Dump Height 7120 mm
Vertical Wall 4940 mm
Dig Depth - 2.44m (8ft) Flat Bottom 5770 mm
Dig Depth 5970 mm
Front Slew Radius 2520 mm
Digging Reach 9270 mm
Ground Level Reach 9120 mm
Dig Height 9880 mm
Dump Height 7460 mm
Vertical Wall 5100 mm
Dig Depth - 2.44m (8ft) Flat Bottom 6040 mm
Dig Depth 6150 mm
Front Slew Radius 2550 mm
Rating Standard ISO 10567
Reach At Ground Level 7.4 m
Reach At Ground Level 7.86 m
Capacities
Fuel Tank 186 L
DEF Tank 20.7 L
Engine Oil 17 L
Cooling System 17 L
Hydraulic Tank 89.9 L
Hydraulic System 182 L
Performance
Ground Bearing Pressure 38.2 - 39.9 kPa
Slew Speed 11 rpm
Slew Torque 40.4 kNm
Travel Speed - Low 3.4 kph
Travel Speed - High 5.6 kph
Tractive Force 140 kN
Boost Pressure Used For Breakout Unlisted
Dipper Tearout 58 kN
Bucket Breakout 105.4 kN
Gradeability 35 °
Gradeability 70 %
Internal Noise - LpA 74 dB(A)
External Noise - LwA 99 dB(A)
Lift Quoted With Bucket No
Lift Quoted With Quick-Hitch No
End Lift - 3.0m 6220 kg
Side Lift - 3.0m 5320 kg
End Lift - 4.5m 5070 kg
Side Lift - 4.5m 2950 kg
End Lift - 6.0m 3280 kg
Side Lift - 6.0m 1970 kg
End Lift - Max 1850 kg
Side Lift - Max 1460 kg
End Lift - 3.0m 4140 kg
Side Lift - 3.0m 4140 kg
End Lift - 4.5m 5290 kg
Side Lift - 4.5m 3410 kg
End Lift - 6.0m 3740 kg
Side Lift - 6.0m 2310 kg
End Lift - 7.5m 2710 kg
Side Lift - 7.5m 1680 kg
End Lift - Max 1930 kg
Side Lift - Max 1570 kg
Main Pumps 2
Per Pump 142 L/min
Main Pump - Total 284 L/min
Boom 343 bar
Dipper 343 bar
Attachment 343 bar
Weights
Mono Boom 15400 - 16100 kg
Articulated Boom 16100 kg
