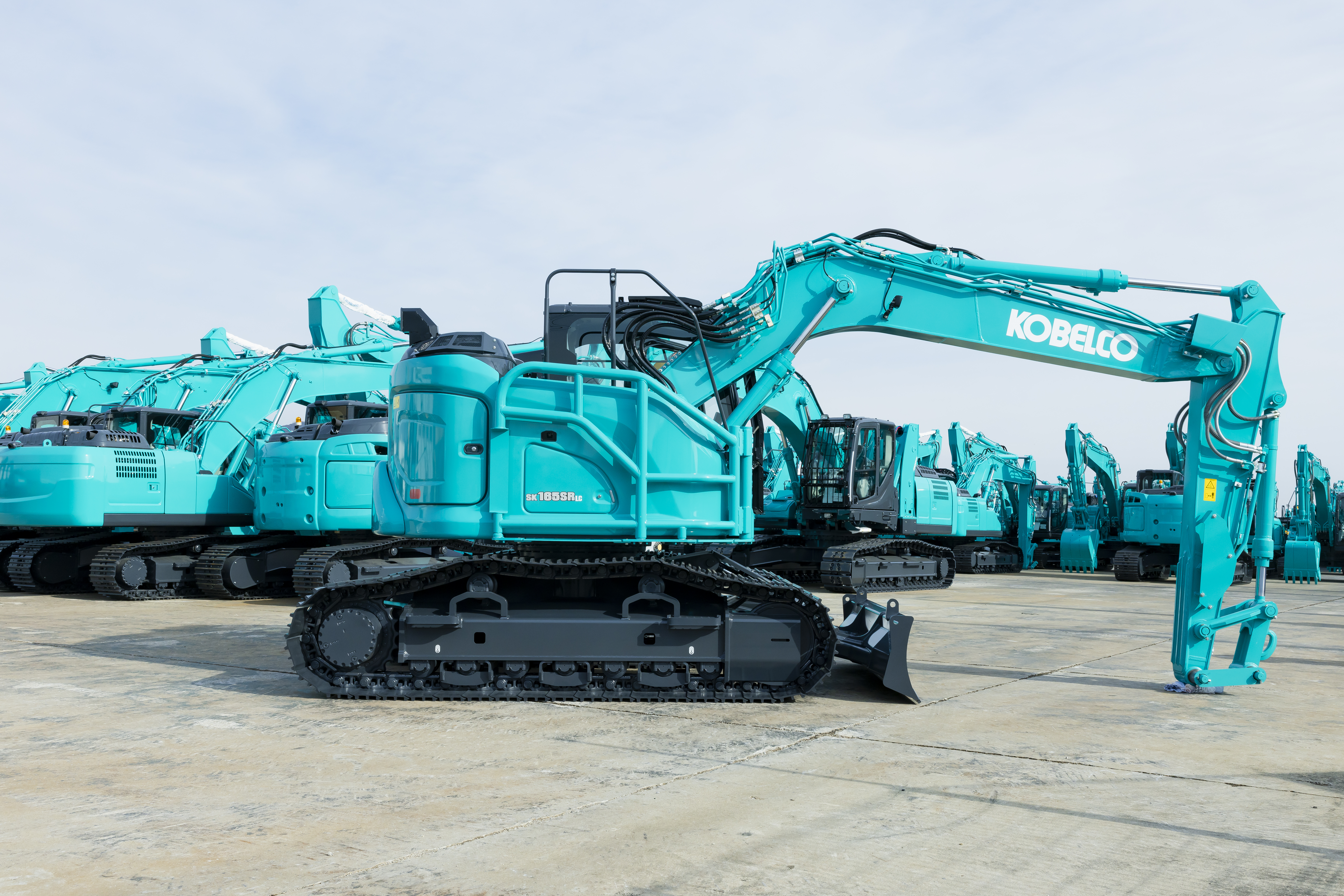

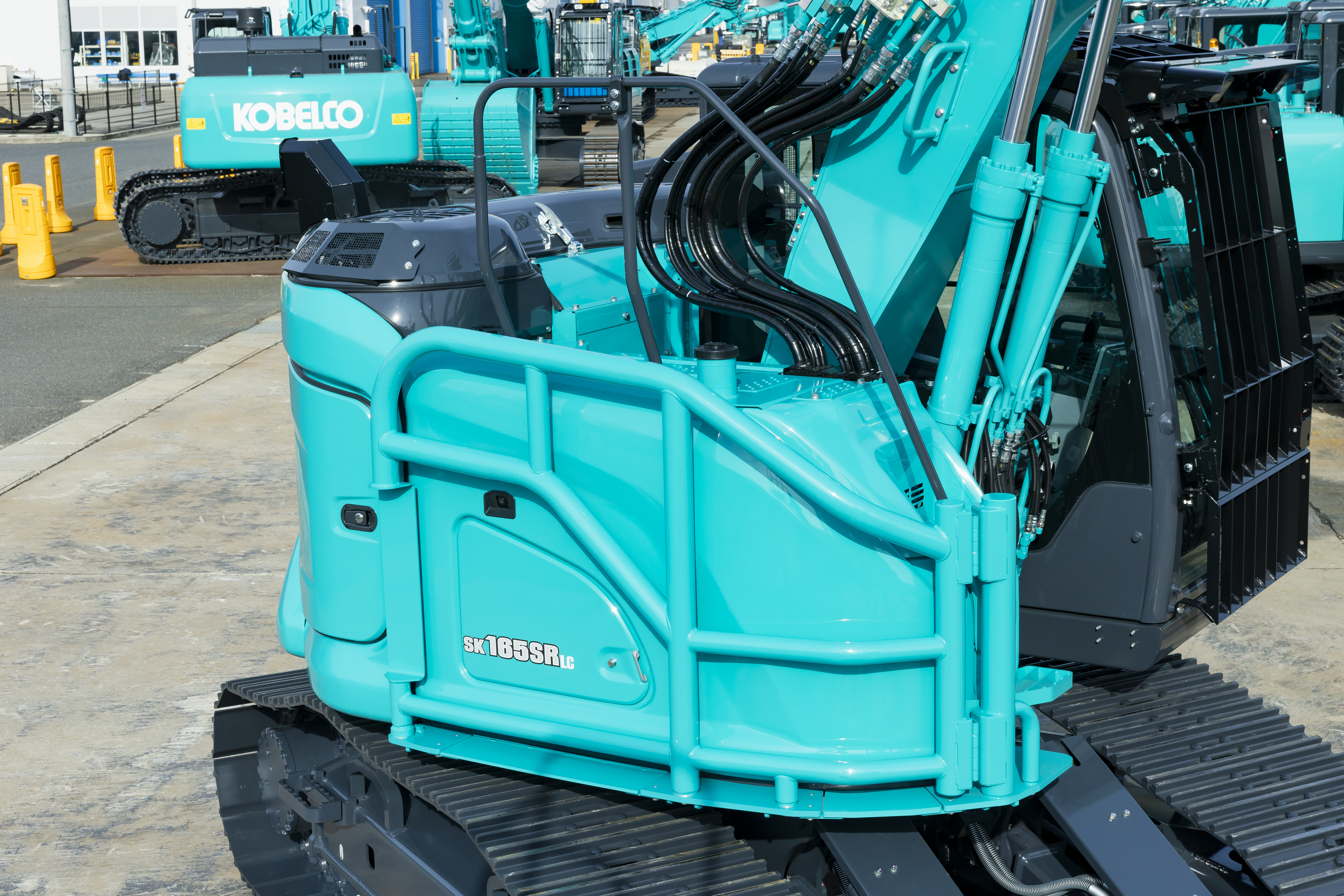

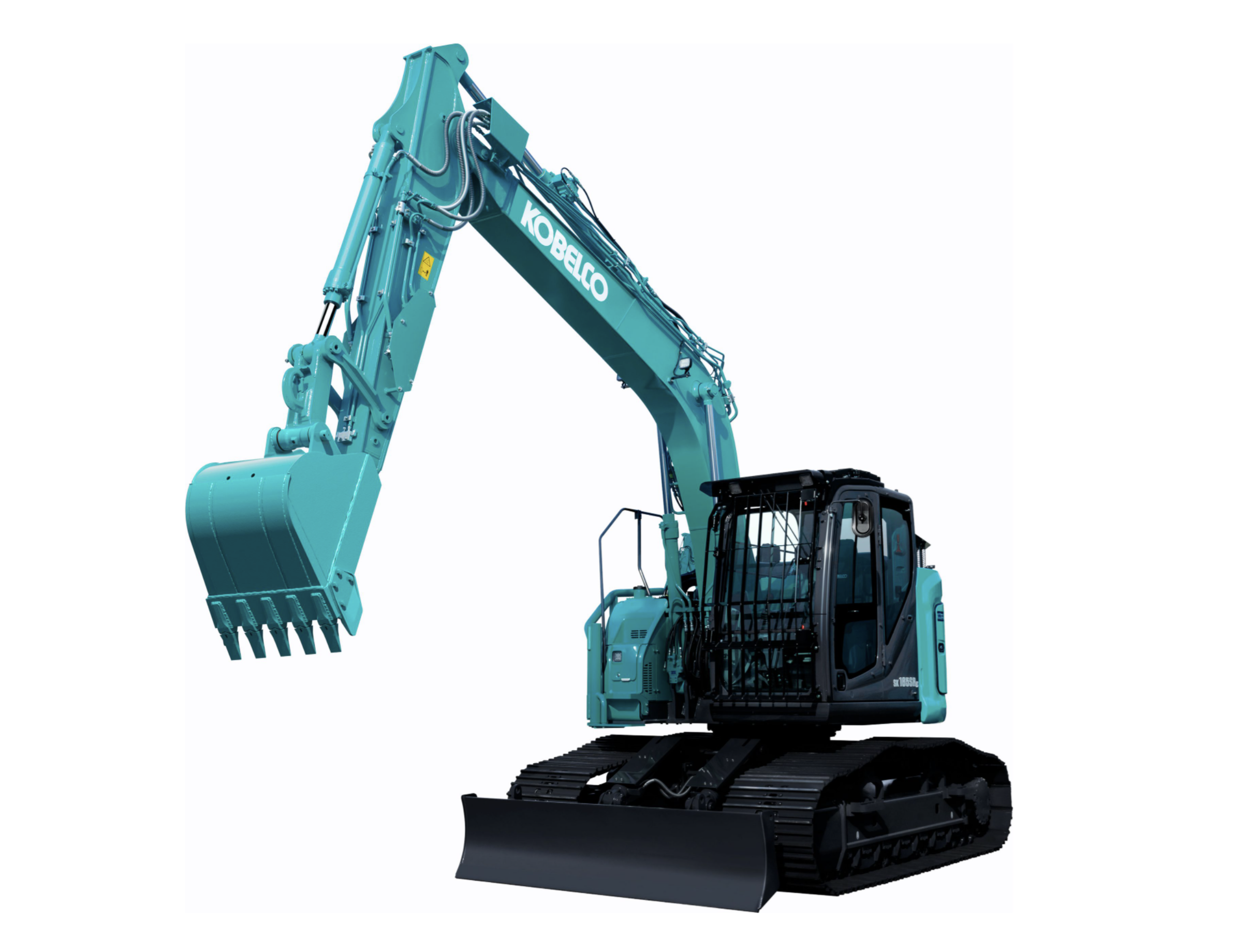

SK165SRLC-7

SR Series

Operationeel gewicht 10 - 18 t

SPECIFICATIONS

Key specifications for SK165SRLC-7

Description

Telematics

Available	Standard

Driveline

Dimensions

Mono Boom	8010 mm
Over Boom	2870 mm
Without Boom	3050 mm
Max Height	3050 mm
Superstructure	2480 mm
Undercarriage	2490 mm
Overall Width	2490 mm
Track Length On Ground	2990 mm
Undercarriage Length	3780 mm
Tailswing Radius	1490 mm
Tail Length	1490 mm
Zero Tailswing	No
Cab	3050 mm
Counterweight Clearance	1060 mm
Ground Clearance	500 mm
Capacity Rating Standard	ISO
Reference Capacity	0.5 m³
Min Capacity	0.38 m³
Max Capacity	0.5 m³
Reference Weight	390 kg
Min Weight	340 kg
Max Weight	390 kg
Available	Yes
Type	Straight
Height	575 mm
Width	2490 mm
Raised Height	630 mm
Dig Depth	315 mm
Width Over Tracks	2490 mm
Track Gauge	1990 mm
Variable Undercarriage Available	No
Digging Reach	8370 mm
Ground Level Reach	8170 mm
Dig Height	9370 mm
Dump Height	6940 mm
Vertical Wall	4310 mm
Dig Depth - 2.44m (8ft) Flat Bottom	5100 mm
Dig Depth	5330 mm
Front Slew Radius	2130 mm
Rating Standard	ISO 10567
Reach At Ground Level	6.9 m

Capacities

Performance

Ground Bearing Pressure	50 kPa
Slew Speed	11 rpm
Slew Torque	40.4 kNm
Travel Speed - Low	2.4 kph
Travel Speed - High	4.7 kph
Tractive Force	195 kN
Boost Pressure Used For Breakout	Unlisted
Dipper Tearout	64 kN
Bucket Breakout	105.4 kN
Gradeability	35 °
Gradeability	70 %
Internal Noise - LpA	74 dB(A)
External Noise - LwA	99 dB(A)
Lift Quoted With Bucket	No
Lift Quoted With Quick-Hitch	No
Lift Quoted With Dozer-Up/Down	Up
End Lift - 3.0m	6320 kg
Side Lift - 3.0m	6040 kg
End Lift - 4.5m	5620 kg
Side Lift - 4.5m	3320 kg
End Lift - 6.0m	3660 kg
Side Lift - 6.0m	2230 kg
End Lift - Max	1980 kg
Side Lift - Max	1840 kg
Main Pumps	2
Main Pump - Total	284 L/min
Auxiliary	66 L/min
Pilot	22 L/min
Boom	343 bar
Dipper	343 bar
Attachment	343 bar
Slew	280 bar
Pilot	50 bar

Weights

Mono Boom	17600 kg
