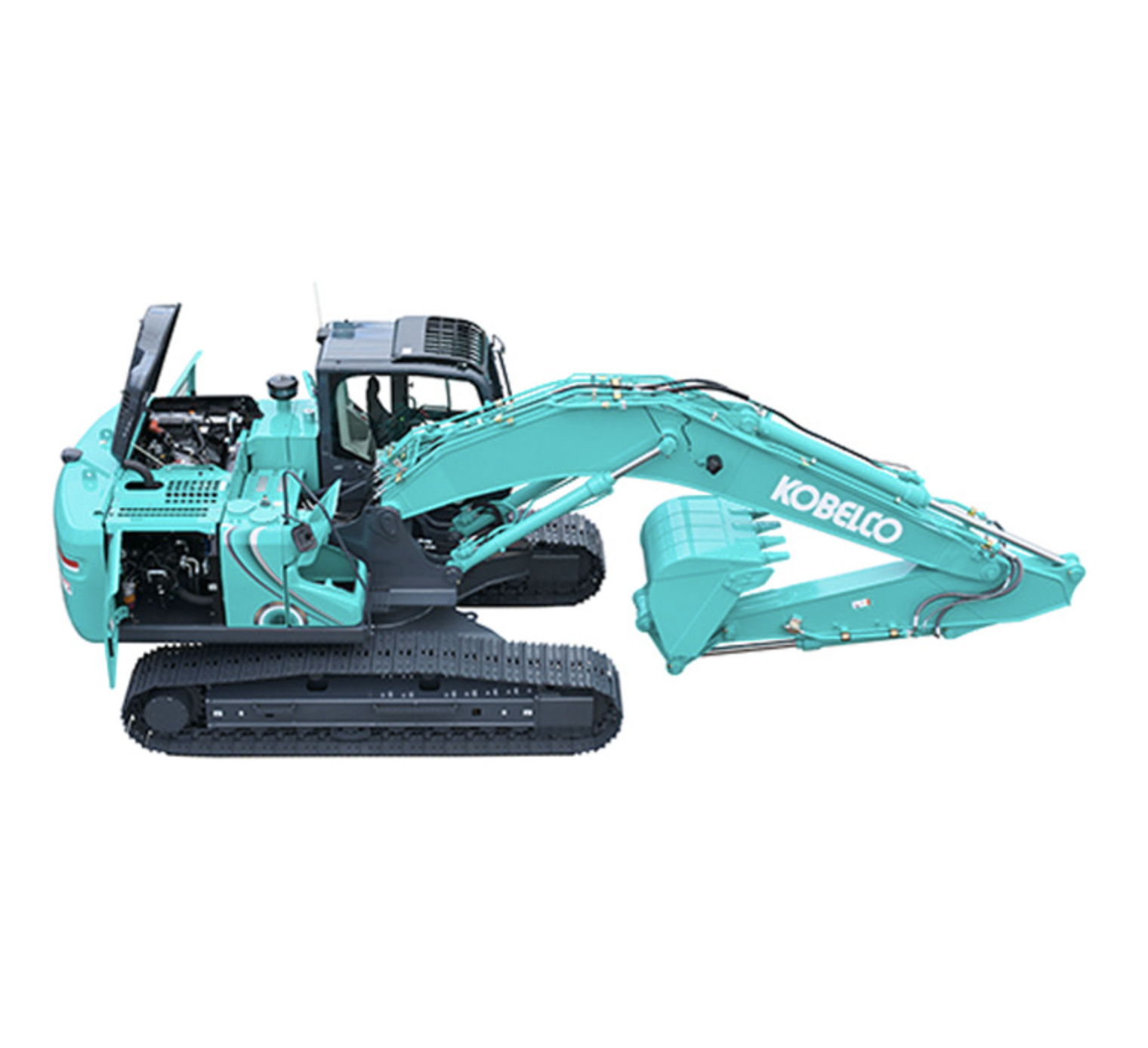

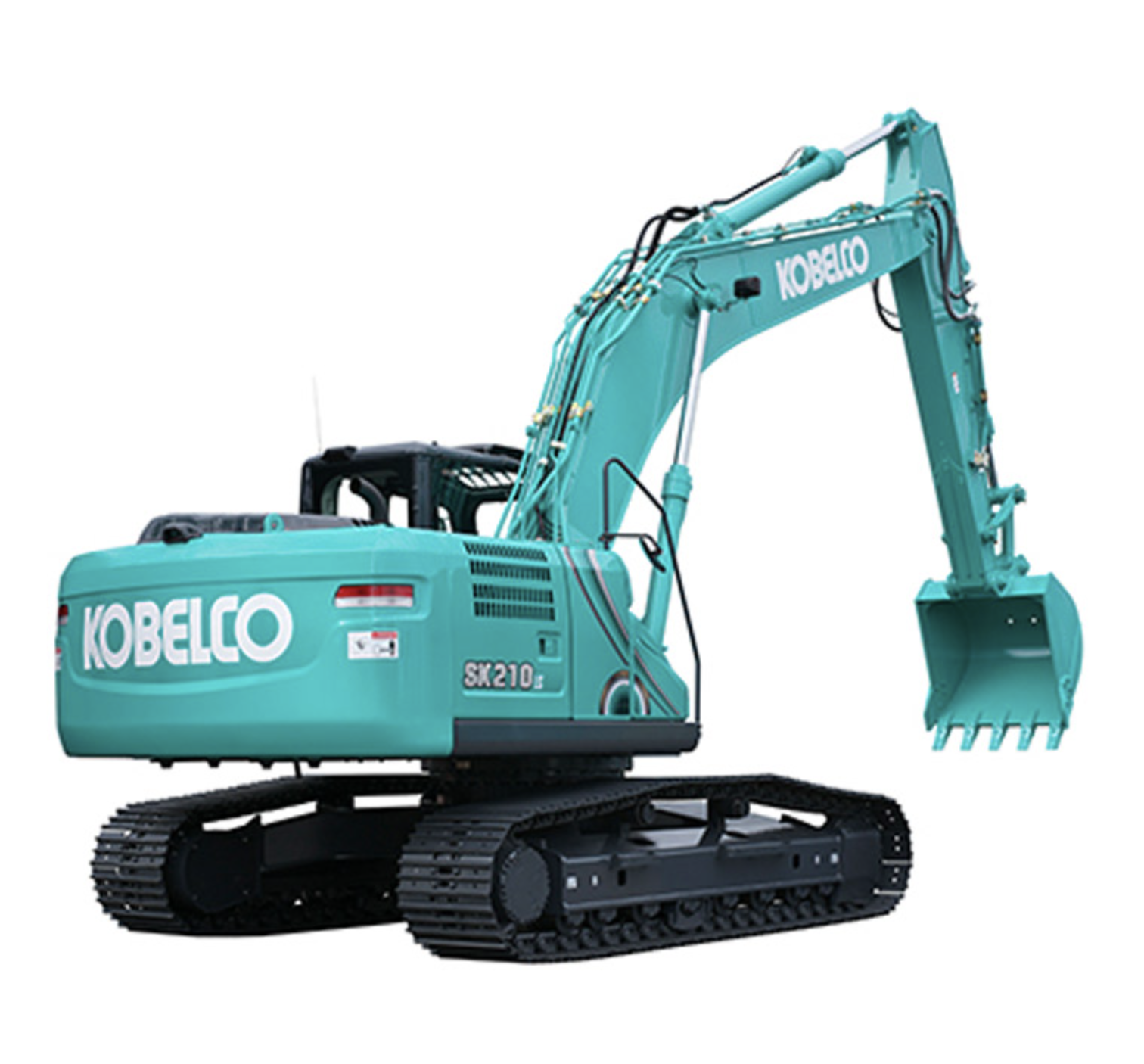

SK210LC-10
SK210LC-10

SK210LC-10

Conventional Excavators
Operationeel gewicht 18 - 30 t
SPECIFICATIONS

Key specifications for SK210LC-10

Description
Number Of Boom Options 1
Rear View Camera Optional
Number Of Mono Booms 1
Number Of Dipper Options 2
Min Dipper Length 2400 mm
Max Dipper Length 2940 mm
Dipper Length 2940 mm
Operating Weight 21200 kg
Counterweight 4300 kg
Telematics
Available Yes
Driveline
Manufacturer Hino
Model J05ETG-KSSP
Aspiration Turbo
Charged Air Cooling Intercooler
Cooling Water
Cylinders 4
Displacement 5.123 L
Rated Speed 2000 rpm
Net Rating Standard Unlisted
Net Output 114 kW
Gross Rating Standard ISO 14396
Gross Output 118 kW
Torque 592 Nm
Torque Rated Speed 1600 rpm
Shoe Width 600 mm
Shoe Type Triple grouser
Track Shoes Per Side 49
Dimensions
Mono Boom 9600 mm
Over Boom 2980 mm
Without Boom 3010 mm
Max Height 3010 mm
Superstructure 2710 mm
Undercarriage 2990 mm
Overall Width 2990 mm
Track Length On Ground 3660 mm
Undercarriage Length 4450 mm
Tailswing Radius 2910 mm
Tail Length 2900 mm
Zero Tailswing No
Cab 3010 mm
Counterweight Clearance 1060 mm
Ground Clearance 450 mm
Reference Capacity 0.8 m³
Reference Weight 720 kg
Width Over Tracks 2990 mm
Track Gauge 2390 mm
Variable Undercarriage Available No
Digging Reach 9900 mm
Ground Level Reach 9730 mm
Dig Height 9720 mm
Dump Height 6910 mm
Vertical Wall 6100 mm
Dig Depth - 2.44m (8ft) Flat Bottom 6520 mm
Dig Depth 6700 mm
Front Slew Radius 3550 mm
Rating Standard ISO 10567
Reach At Ground Level 8.25 m
Capacities
Fuel Tank 320 L
Engine Oil 20.5 L
Cooling System 18 L
Hydraulic Tank 140 L
Hydraulic System 244 L
Performance
Ground Bearing Pressure 44 kPa
Slew Speed 13.3 rpm
Travel Speed - Low 3.6 kph
Travel Speed - High 6 kph
Tractive Force 228 kN
Boost Pressure Used For Breakout Yes
Dipper Tearout 112 kN
Bucket Breakout 157 kN
Gradeability 35 °
Gradeability 70 %
Lift Quoted With Bucket No
End Lift - 3.0m 5780 kg
Side Lift - 3.0m 5780 kg
End Lift - 4.5m 10670 kg
Side Lift - 4.5m 6600 kg
End Lift - 6.0m 7160 kg
Side Lift - 6.0m 4420 kg
End Lift - 7.5m 5150 kg
Side Lift - 7.5m 3250 kg
End Lift - Max 4190 kg
Side Lift - Max 2860 kg
Main Pumps 2
Main Pump - Total 440 L/min
Boom 343 bar
Dipper 343 bar
Attachment 343 bar
Boost 378 bar
Weights
Mono Boom 21200 kg
