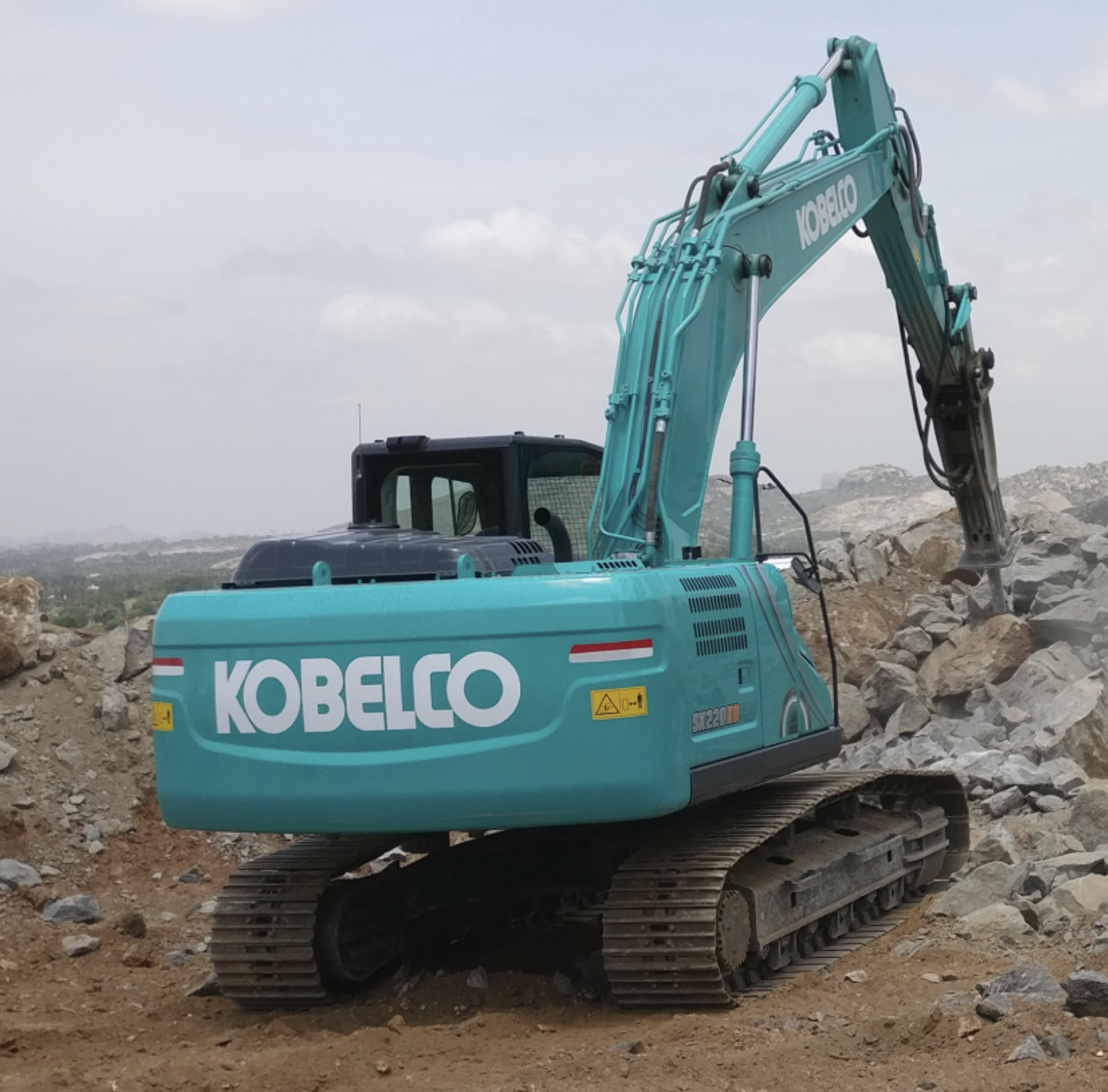

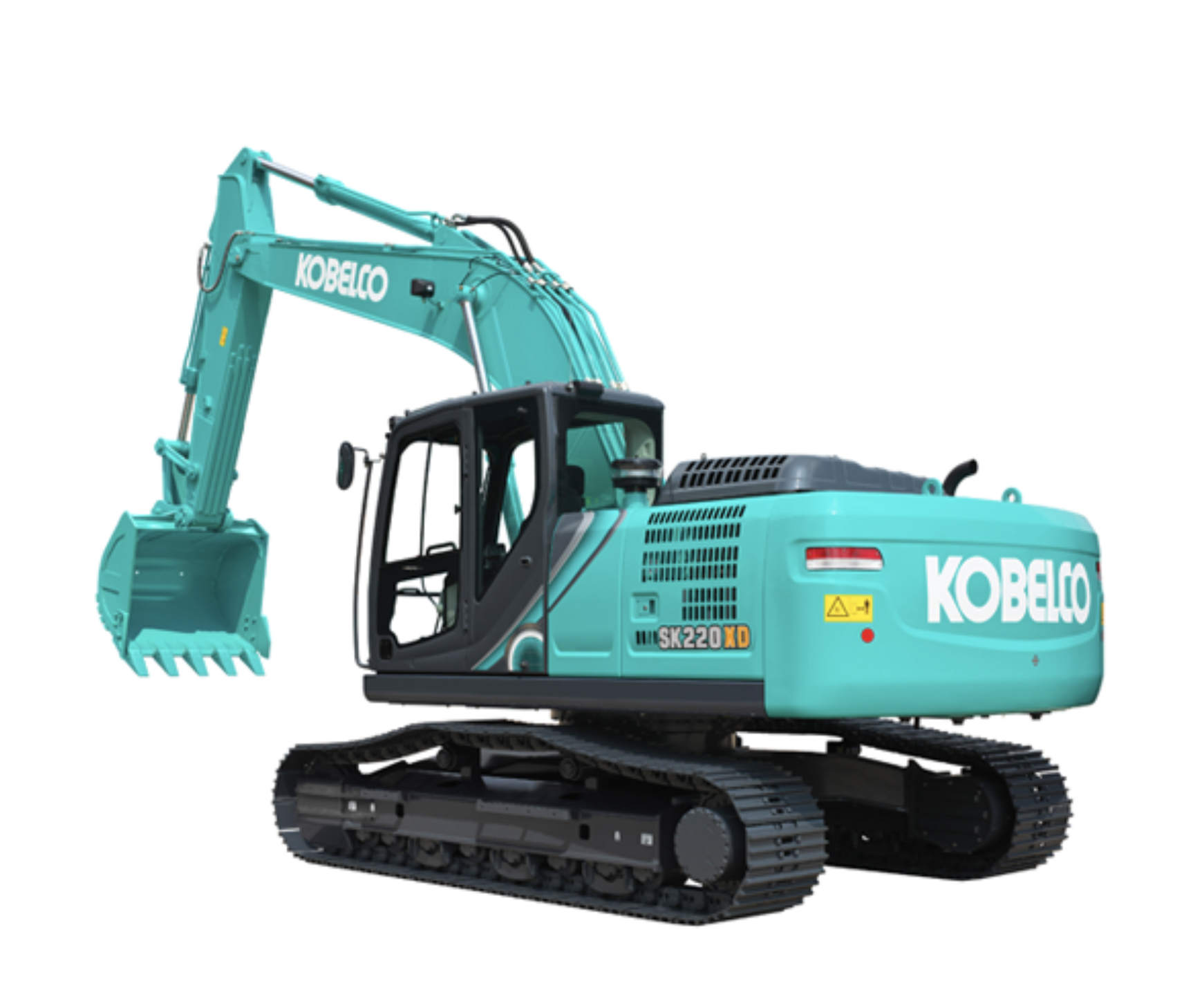

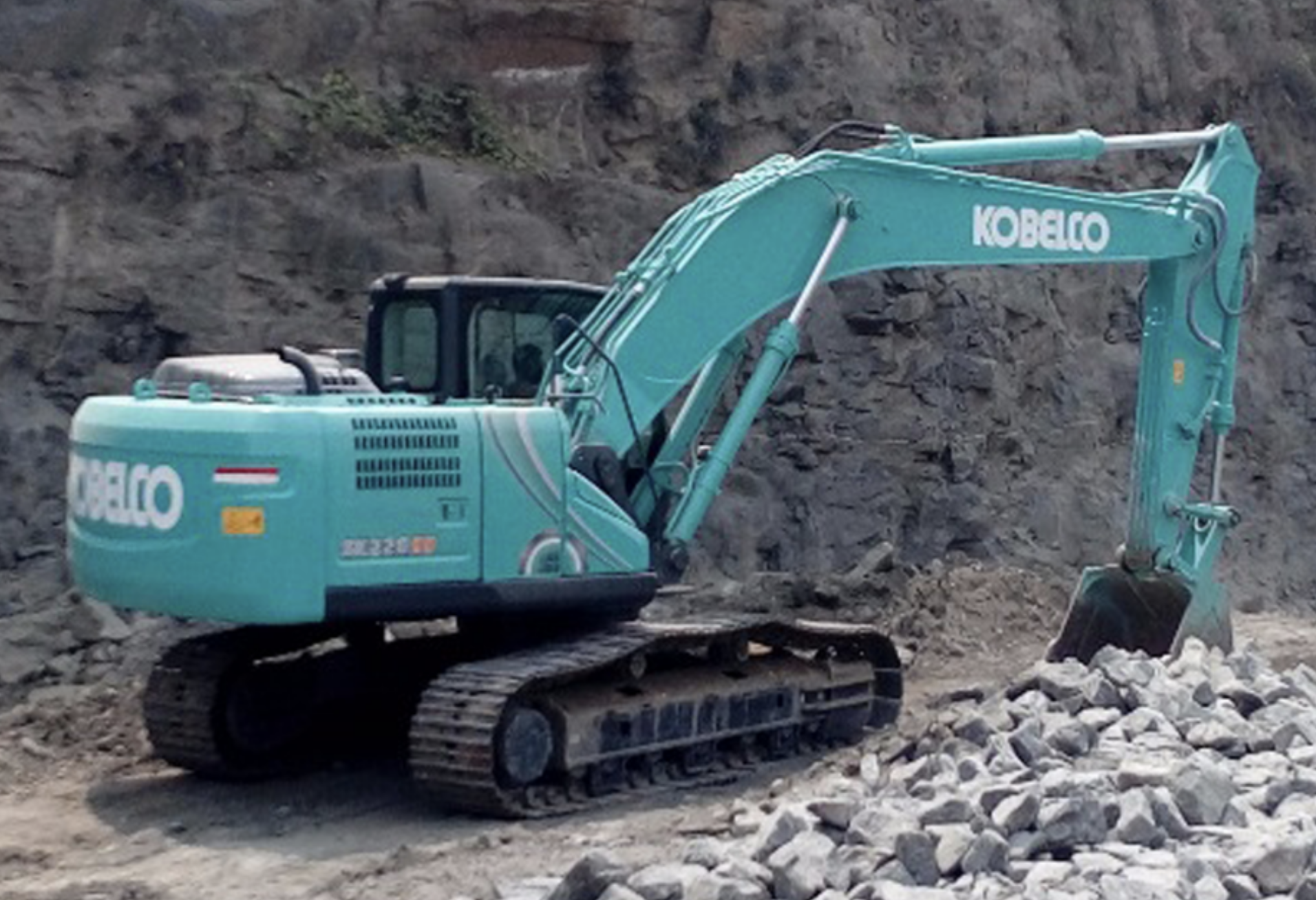

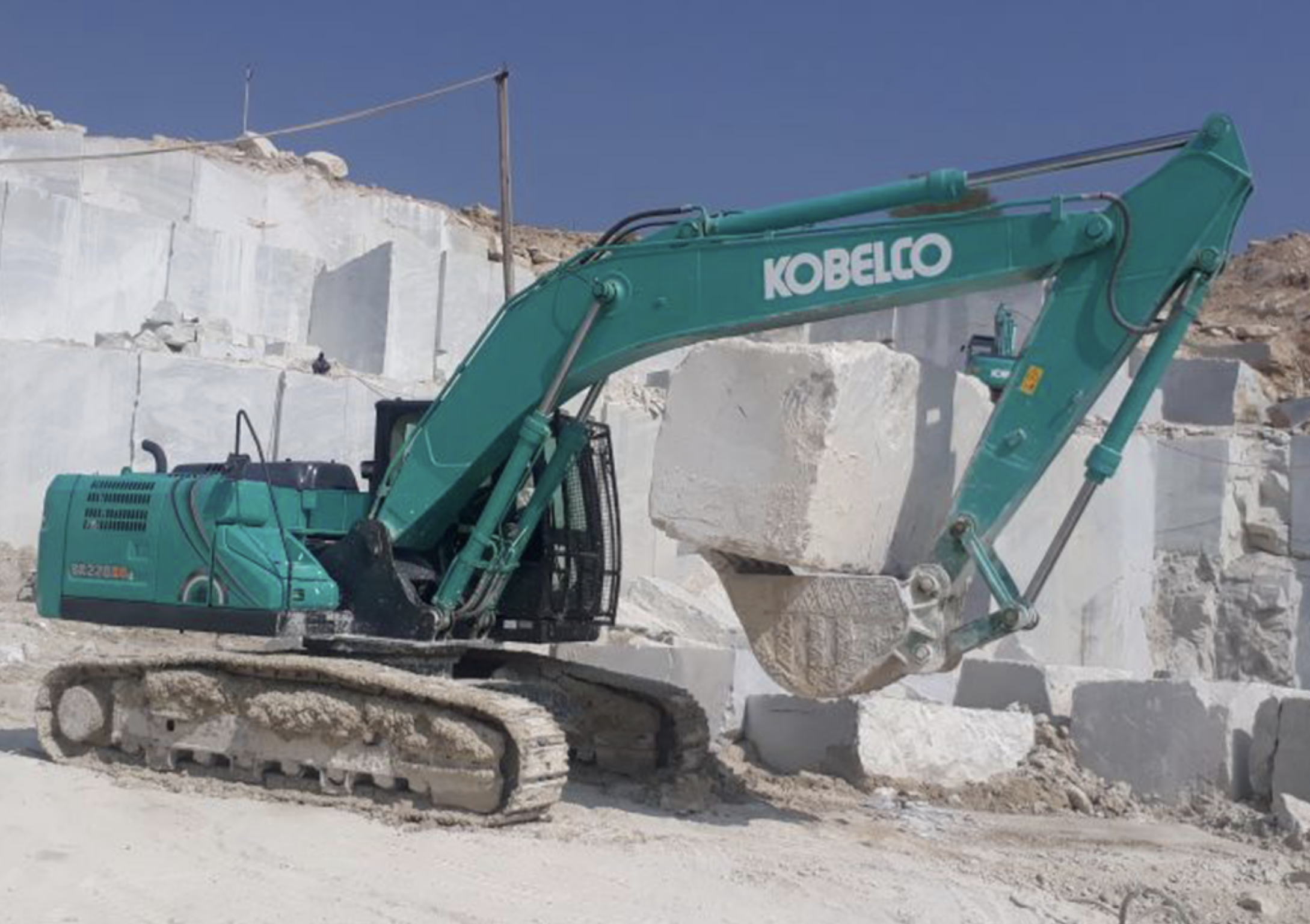

SK220XDLC-10
SK220XDLC-10
SK220XDLC-10
SK220XDLC-10

SK220XDLC-10

Conventional Excavators
Operationeel gewicht 18 - 30 t
SPECIFICATIONS

Key specifications for SK220XDLC-10

Description
Number Of Boom Options 1
Rear View Camera Optional
Number Of Mono Booms 1
Boom Size 5.65 m
Number Of Dipper Options 2
Min Dipper Length 2400 mm
Max Dipper Length 2940 mm
Dipper Length 2940 mm
Operating Weight 22000 kg
Telematics
Available Yes
Driveline
Manufacturer Hino
Model J05ETG
Aspiration Turbo
Charged Air Cooling Intercooler
Cooling Water
Cylinders 4
Displacement 5.123 L
Rated Speed 2000 rpm
Net Rating Standard ISO 9249
Net Output 114 kW
Gross Rating Standard ISO 14396
Gross Output 118 kW
Torque 592 Nm
Torque Rated Speed 1600 rpm
Carrier Rollers Per Side 2
Track Rollers Per Side 8
Shoe Width 600 mm
Shoe Type Triple grouser
Track Shoes Per Side 49
Dimensions
Mono Boom 9600 mm
Over Boom 2980 mm
Without Boom 3020 mm
Max Height 3020 mm
Superstructure 2710 mm
Undercarriage 2990 mm
Overall Width 2990 mm
Track Length On Ground 3660 mm
Undercarriage Length 4460 mm
Tailswing Radius 2910 mm
Tail Length 2900 mm
Zero Tailswing No
Cab 3020 mm
Counterweight Clearance 1070 mm
Ground Clearance 435 mm
Reference Capacity 0.8 m³
Reference Weight 780 kg
Width Over Tracks 2990 mm
Track Gauge 2390 mm
Variable Undercarriage Available No
Digging Reach 9900 mm
Ground Level Reach 9730 mm
Dig Height 9720 mm
Dump Height 2430 mm
Vertical Wall 6100 mm
Dig Depth - 2.44m (8ft) Flat Bottom 6520 mm
Dig Depth 6700 mm
Front Slew Radius 3540 mm
Rating Standard ISO 10567
Reach At Ground Level 8.25 m
Capacities
Fuel Tank 320 L
Engine Oil 20.5 L
Cooling System 18 L
Hydraulic Tank 140 L
Hydraulic System 244 L
Performance
Ground Bearing Pressure 46 kPa
Slew Speed 13.3 rpm
Travel Speed - Low 3.6 kph
Travel Speed - High 6 kph
Tractive Force 228 kN
Boost Pressure Used For Breakout Yes
Dipper Tearout 112 kN
Bucket Breakout 157 kN
Gradeability 35 °
Gradeability 70 %
Lift Quoted With Bucket No
End Lift - 3.0m 5750 kg
Side Lift - 3.0m 5750 kg
End Lift - 4.5m 10540 kg
Side Lift - 4.5m 6600 kg
End Lift - 6.0m 7200 kg
Side Lift - 6.0m 4410 kg
End Lift - 7.5m 5180 kg
Side Lift - 7.5m 3240 kg
End Lift - Max 4150 kg
Side Lift - Max 2840 kg
Main Pumps 2
Main Pump - Total 440 L/min
Boom 343 bar
Dipper 343 bar
Attachment 343 bar
Boost 378 bar
Weights
Mono Boom 22000 kg
