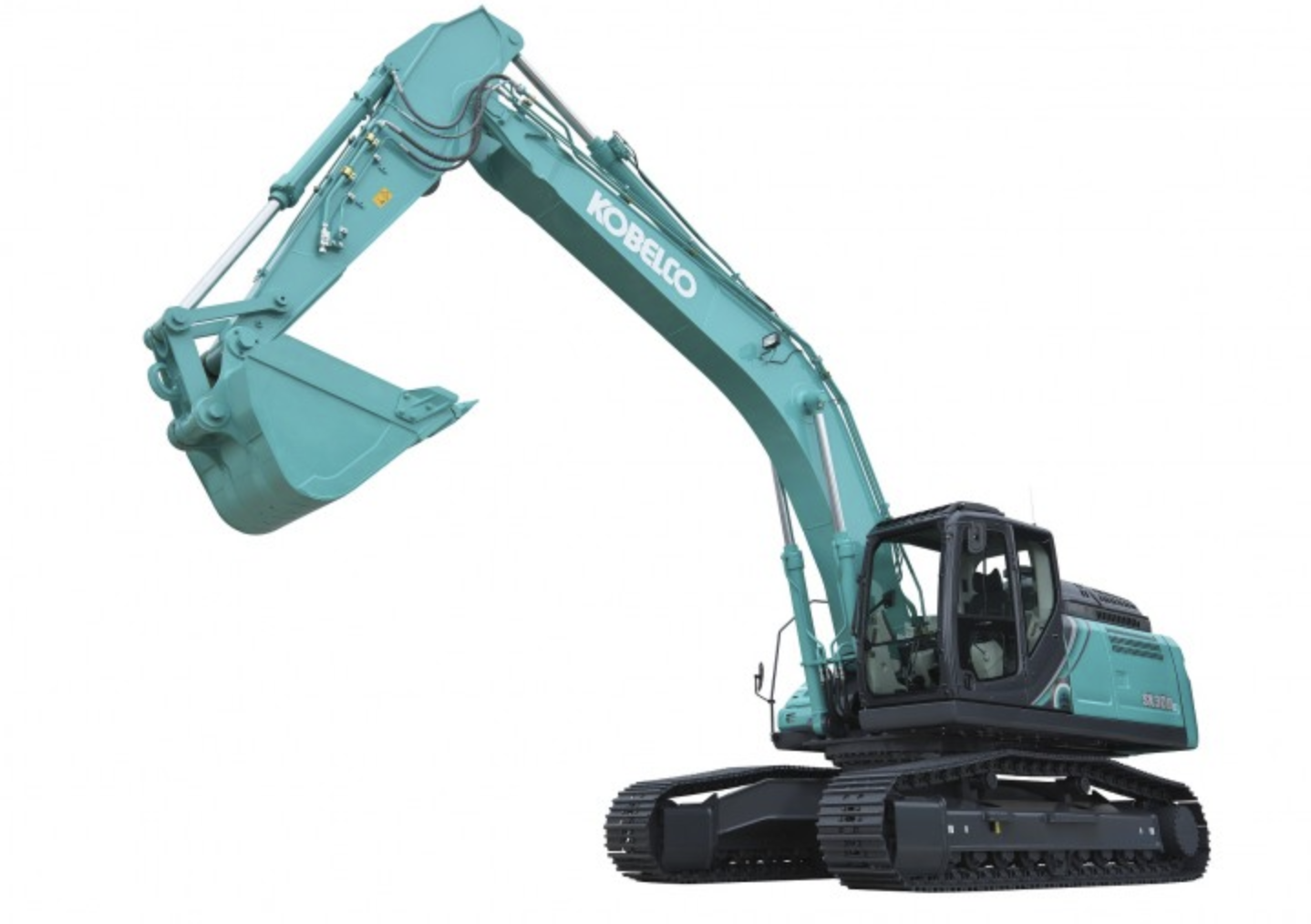

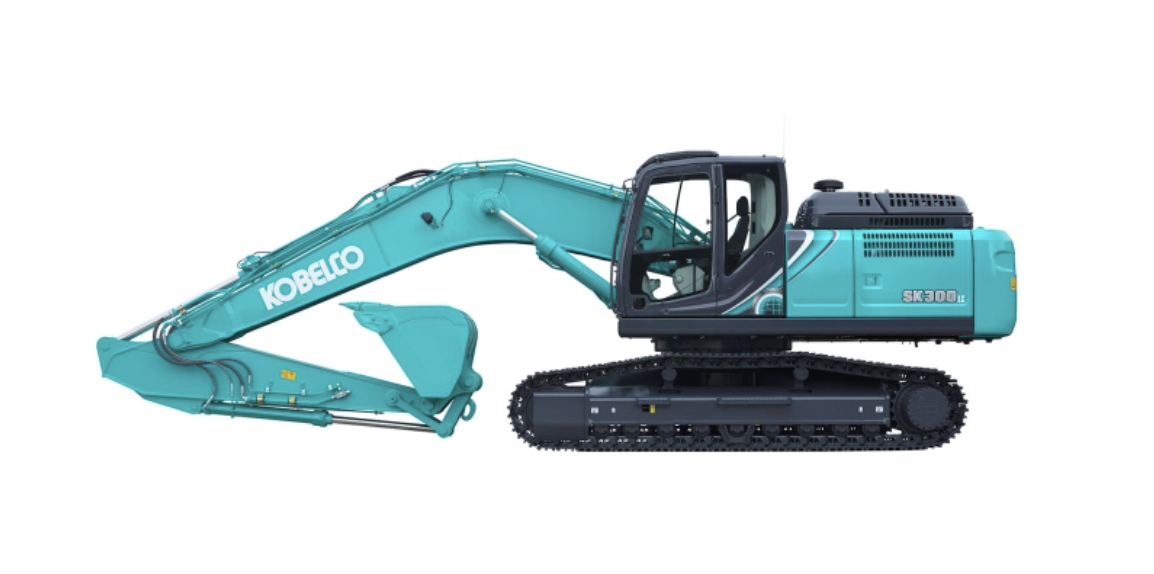

SK300LC-10
SK300LC-10
SK300LC-10
SK300LC-10

SK300LC-10

Conventional Excavators
Operationeel gewicht 30 - 50 t
SPECIFICATIONS

Key specifications for SK300LC-10

Description
Number Of Boom Options 1
Rear View Camera Optional
Number Of Mono Booms 1
Boom Size 6.2 m
Number Of Dipper Options 2
Min Dipper Length 2400 mm
Max Dipper Length 3100 mm
Dipper Length 3100 mm
Operating Weight 30600 kg
Telematics
Available Yes
Driveline
Manufacturer Hino
Model J08E
Aspiration Turbo
Charged Air Cooling Intercooler
Cooling Water
Cylinders 6
Displacement 7.684 L
Rated Speed 2100 rpm
Net Rating Standard ISO 9249
Net Output 173 kW
Gross Rating Standard ISO 14396
Gross Output 185 kW
Torque 998 Nm
Torque Rated Speed 1600 rpm
Carrier Rollers Per Side 2
Track Rollers Per Side 9
Shoe Width 600 mm
Shoe Type Triple grouser
Track Shoes Per Side 50
Dimensions
Mono Boom 10710 mm
Over Boom 3200 mm
Without Boom 3160 mm
Max Height 3200 mm
Superstructure 2980 mm
Undercarriage 3190 mm
Overall Width 3190 mm
Track Length On Ground 4000 mm
Undercarriage Length 4870 mm
Tailswing Radius 3300 mm
Tail Length 3270 mm
Zero Tailswing No
Cab 3160 mm
Counterweight Clearance 1200 mm
Ground Clearance 510 mm
Reference Capacity 1.4 m³
Reference Weight 1140 kg
Width Over Tracks 3190 mm
Track Gauge 2590 mm
Variable Undercarriage Available No
Digging Reach 10870 mm
Ground Level Reach 10680 mm
Dig Height 10010 mm
Dump Height 7110 mm
Vertical Wall 6230 mm
Dig Depth - 2.44m (8ft) Flat Bottom 7040 mm
Dig Depth 7200 mm
Front Slew Radius 4420 mm
Rating Standard ISO 10567
Reach At Ground Level 9.06 m
Capacities
Fuel Tank 503 L
Engine Oil 28.5 L
Cooling System 35 L
Hydraulic Tank 245 L
Hydraulic System 410 L
Performance
Ground Bearing Pressure 58 kPa
Slew Speed 10.3 rpm
Travel Speed - Low 3.1 kph
Travel Speed - High 5.2 kph
Tractive Force 280 kN
Boost Pressure Used For Breakout Yes
Dipper Tearout 139 kN
Bucket Breakout 208 kN
Gradeability 35 °
Gradeability 70 %
Lift Quoted With Bucket No
End Lift - 4.5m 14220 kg
Side Lift - 4.5m 10340 kg
End Lift - 6.0m 10110 kg
Side Lift - 6.0m 6890 kg
End Lift - 7.5m 7960 kg
Side Lift - 7.5m 5080 kg
End Lift - 9.0m 5090 kg
Side Lift - 9.0m 3960 kg
End Lift - Max 4280 kg
Side Lift - Max 3920 kg
Main Pumps 2
Main Pump - Total 490 L/min
Boom 343 bar
Dipper 343 bar
Attachment 343 bar
Boost 378 bar
Sensing Type Negative control
Weights
Mono Boom 30600 kg
