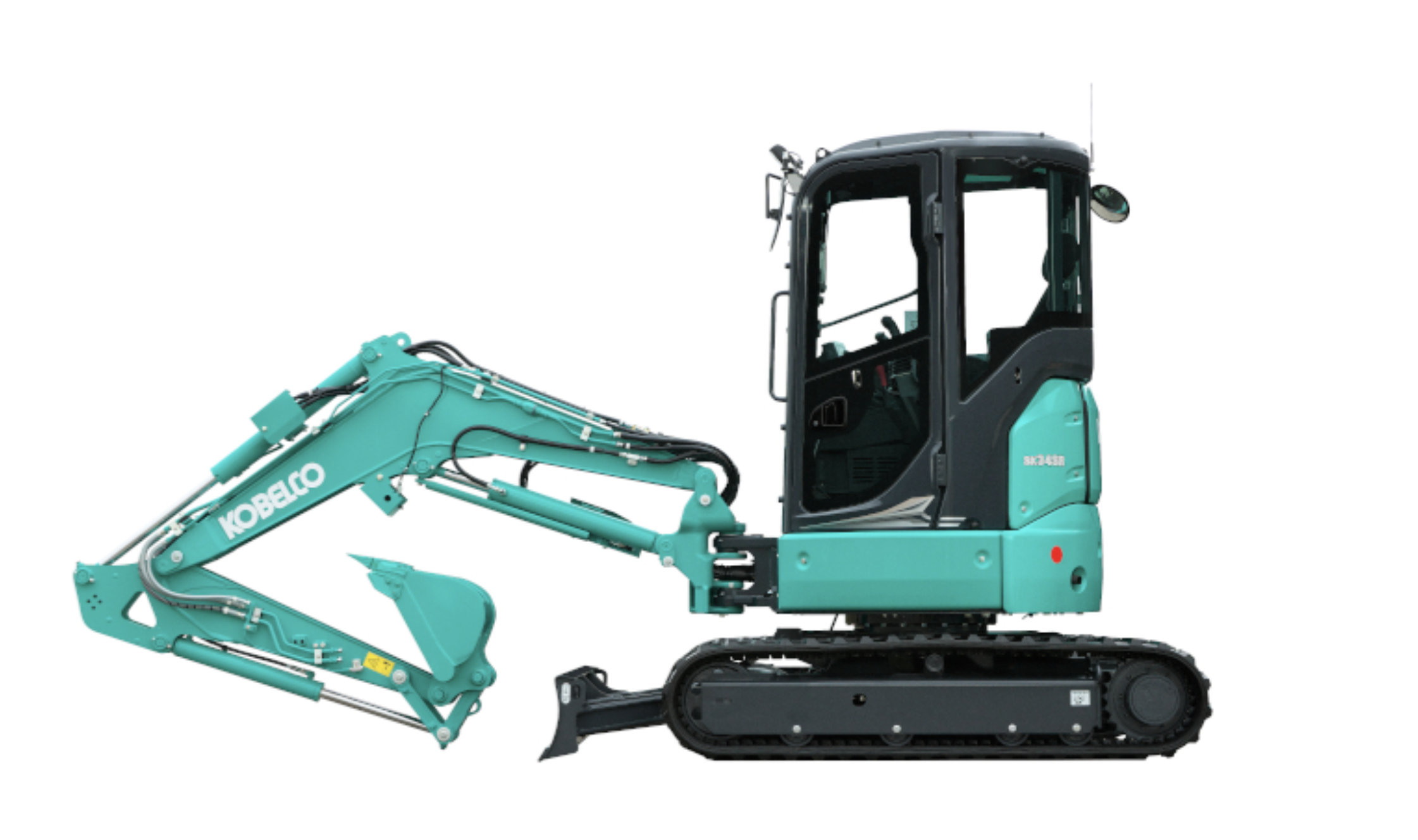

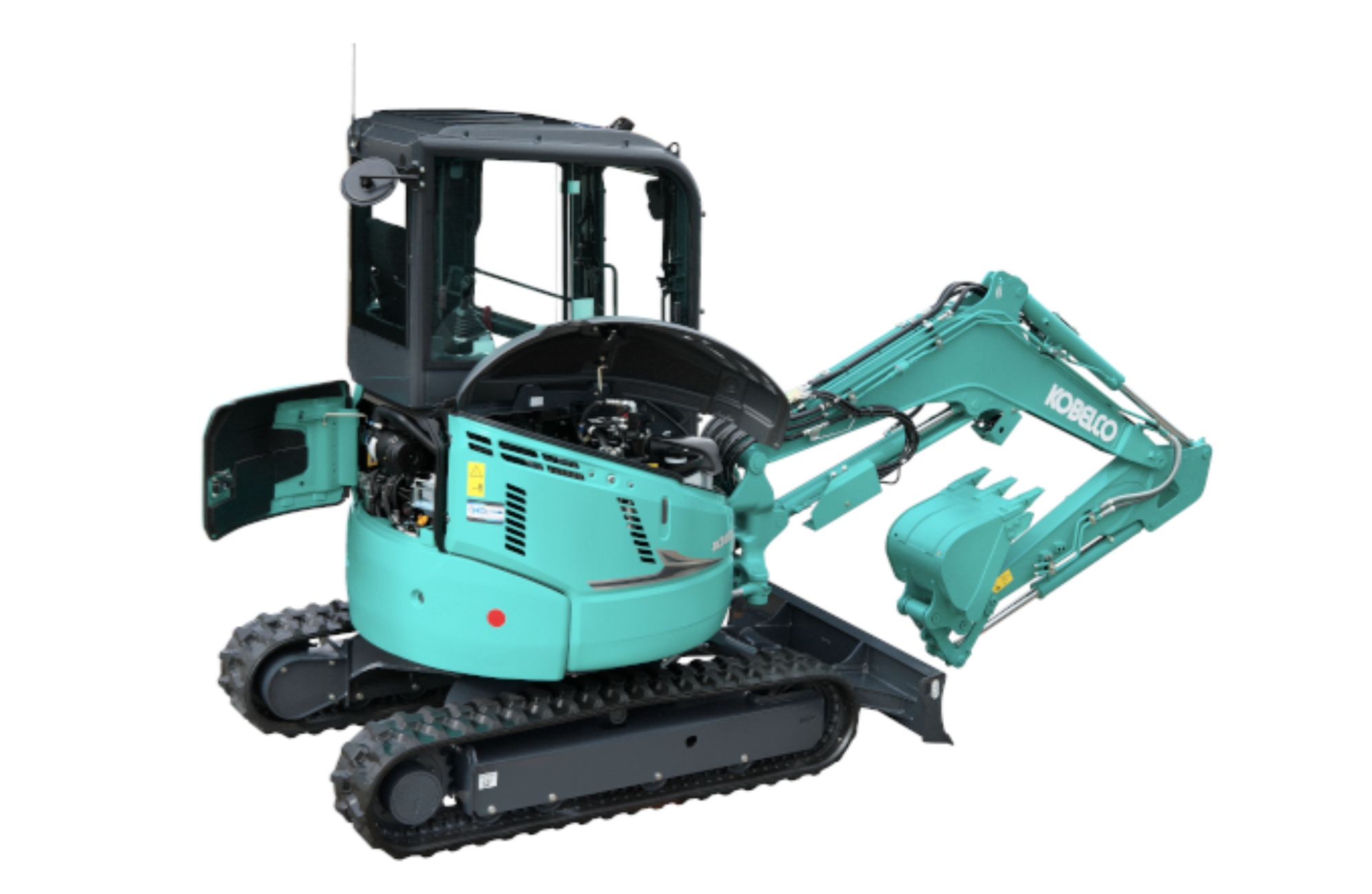

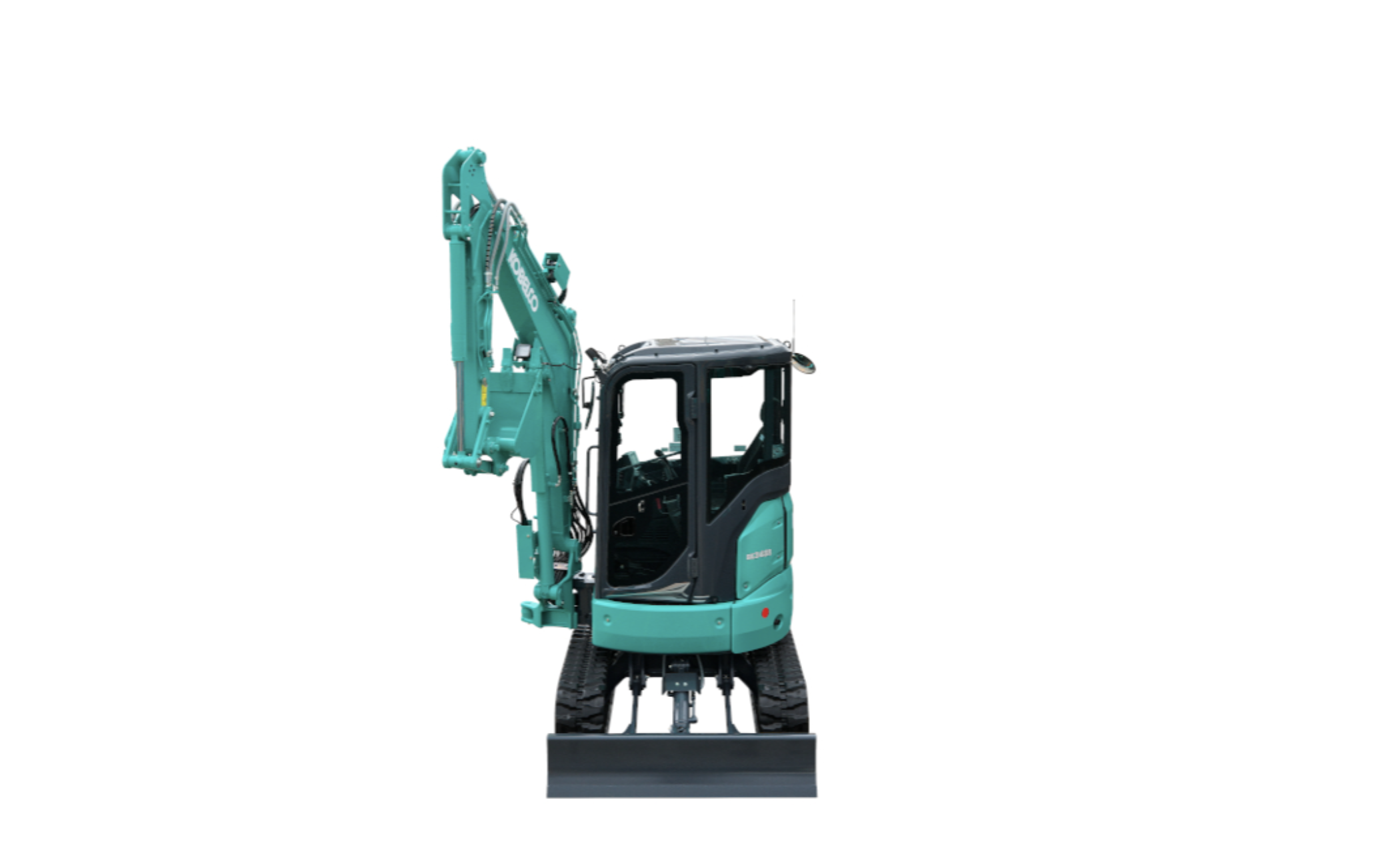

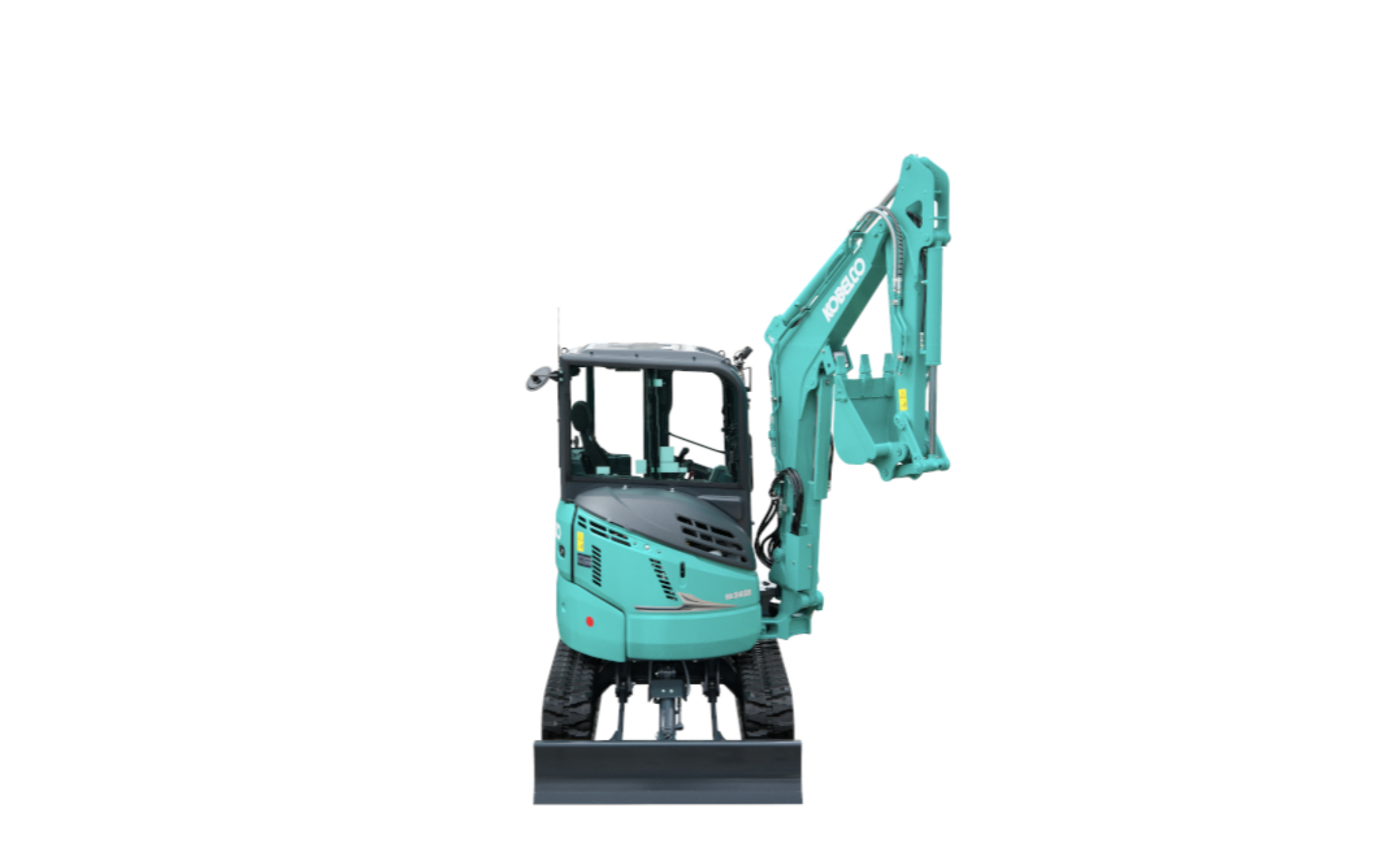

SK34SR-7

Mini Excavators

Operationeel gewicht 0 - 6 t

SPECIFICATIONS

Key specifications for SK34SR-7

Description

Telematics

Available	Yes

Driveline

Dimensions

Mono Boom	4730 mm
Without Boom	2510 - 2550 mm
Max Height	2510 - 2550 mm
Superstructure	1530 mm
Undercarriage	1550 mm
Overall Width	1550 mm
Track Length On Ground	1700 mm
Undercarriage Length	2160 mm
Tailswing Radius	775 mm
Tail Length	775 mm
Zero Tailswing	Yes
Cab	2550 mm
Canopy	2510 mm
Counterweight Clearance	575 mm
Capacity Rating Standard	ISO 7451
Reference Capacity	0.09 m³
Reference Weight	80 kg
Available	Yes
Type	Straight
Height	345 mm
Width	1550 mm
Raised Height	470 mm
Dig Depth	390 mm
Width Over Tracks	1550 mm
Track Gauge	1250 mm
Variable Undercarriage Available	No
Digging Reach	5200 mm
Ground Level Reach	5040 mm
Dig Height	4790 - 5050 mm
Dump Height	3410 - 3640 mm
Vertical Wall	2370 mm
Dig Depth - 2.44m (8ft) Flat Bottom	2310 - 2360 mm
Dig Depth	2780 - 2830 mm
Front Slew Radius	2190 - 2300 mm
Front Slew Radius - Swing Boom	1810 - 1910 mm
Boom Swing - Left	70 °
Boom Swing - Right	60 °
Left Digging Offset	720 mm
Right Digging Offset	725 mm
Rating Standard	ISO 10567
Reach At Ground Level	4.3 m

Capacities

Performance

Ground Bearing Pressure	29.7 - 31.1 kPa
Slew Speed	8.2 rpm
Slew Torque	7 kNm
Travel Speed - Low	2.5 kph
Travel Speed - High	4.4 kph
Tractive Force	38.2 - 38.3 kN
Boost Pressure Used For Breakout	Unlisted
Dipper Tearout	19.1 kN
Bucket Breakout	32.2 kN
Gradeability	30 °
Gradeability	58 %
Internal Noise - LpA	81 dB(A)
External Noise - LwA	93 dB(A)
Lift Quoted With Bucket	No
Lift Quoted With Dozer-Up/Down	Up
End Lift - 2.0m	1230 - 1320 kg
Side Lift - 2.0m	890 - 950 kg
End Lift - 3.0m	640 - 680 kg
Side Lift - 3.0m	480 - 520 kg
End Lift - 4.0m	420 - 450 kg
Side Lift - 4.0m	320 - 350 kg
End Lift - Max	380 - 410 kg
Side Lift - Max	290 - 320 kg
Main Pumps	2
Main Pump - Total	76.8 L/min
Boom	230 bar
Dipper	230 bar
Attachment	230 bar

Weights

Mono Boom	3380 - 3550 kg
