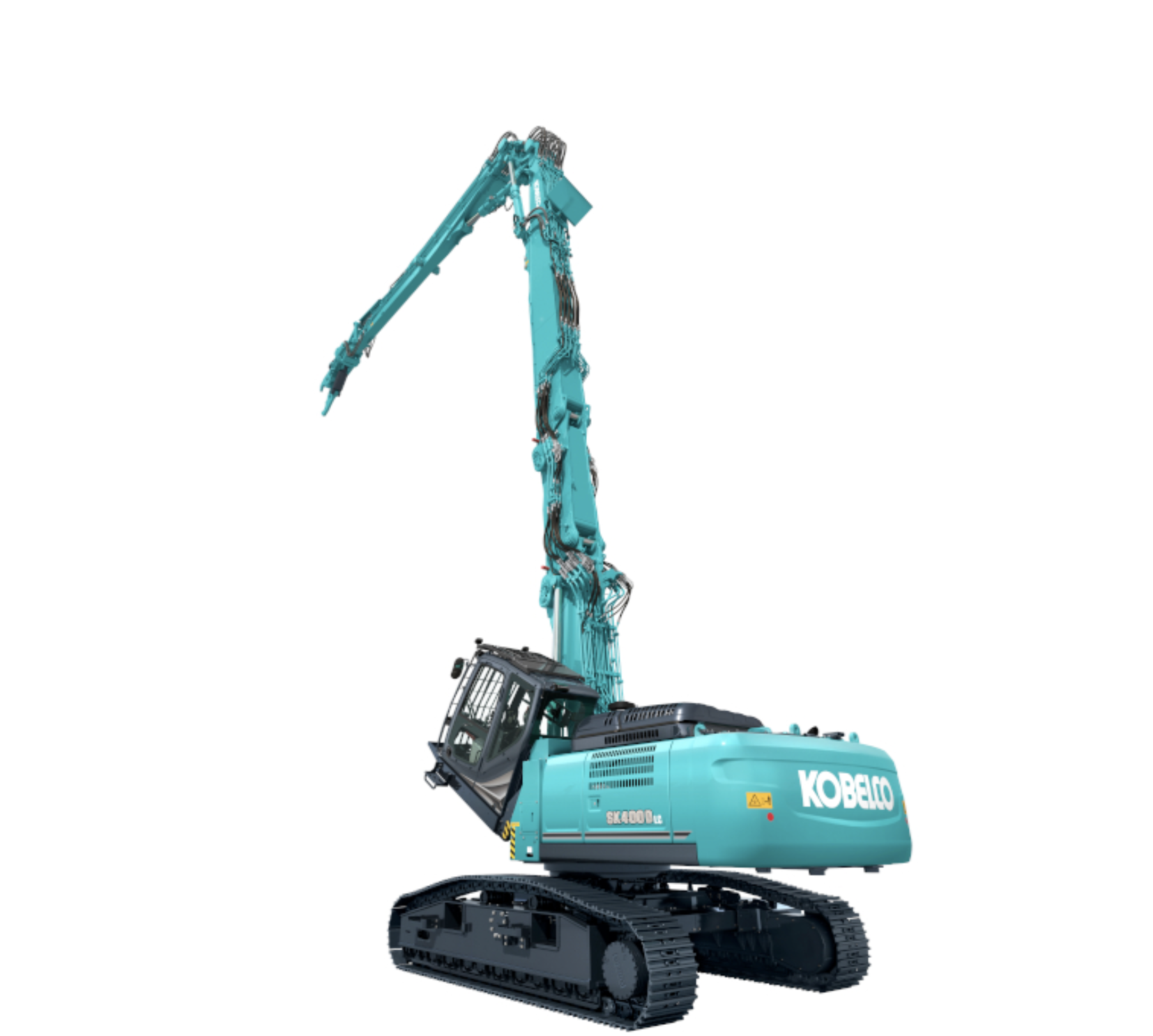

SK400DLC-11E

SK400DLC-11E

Demolition and Recycling
Operationeel gewicht + 50 t
SPECIFICATIONS

Key specifications for SK400DLC-11E

Description
Telematics Available Yes
Rear View Camera Yes
Cab Tilt 30 °
Dipper Type Straight demolition
Number Of Booms 4
Boom Size 6.1 - 8.7 m
Cab Riser Hydraulic tilt back
Engine
Engine Manufacturer Isuzu
Engine Model 6HK1
Cylinders 6
Aspiration Turbo intercooler
Exhaust System DOC-DPF-SCR
Cooling Water
Displacement 7.79 L
Rated Speed 1900 rpm
Gross Rating Standard ISO 14396
Gross Output 210 kW
Torque 1080 Nm
Driveline
Number Of Speeds 2
Variable Undercarriage Available Yes
Track Width - Retracted 2980 mm
Track Width - Extended 3480 mm
Shoe Type Triple grouser
Shoe Width 600 mm
Dimensions
Triple Articulated 12300 - 14510 mm
Demolition Boom 13350 mm
Over Triple Articulated Boom 2700 - 2760 mm
Over Demolition Boom 3320 mm
Overall Width 3720 mm
Max Machine Width 3720 mm
Tailswing Radius 3600 mm
Tail Length - Over End 1120 mm
Undercarriage Length 4960 mm
Min Cab Height 3330 mm
Ground Clearance 540 mm
Superstructure Width 2980 mm
Superstructure With Catwalks 3190 mm
Max Height 23730 - 24970 mm
Max Reach 11850 mm
Ground Level Reach 11500 mm
Max Height 13680 mm
Max Depth 6210 mm
Capacities
Fuel Tank 503 L
DEF Tank 83 L
Hydraulic Tank 245 L
Hydraulic System 410 L
Engine Oil 48.6 L
Final Drive Oil 16 L
Swing Oil 7.4 L
Cooling System 41.4 L
Performance
Slew Speed 5.5 - 10 rpm
Slew Torque 119.6 kNm
Drawbar Pull 315 kN
Travel Speed Low 3.3 kph
Travel Speed High 5.6 kph
Reverse Speed Low 3.3 kph
Reverse Speed High 5.6 kph
Hydraulic System
Pump Type Variable axial piston
Main Pumps 2
Max Flow Per Pump 294 L/min
Main Pumps Max Flow 588 L/min
Auxiliary Flow 42.6 L/min
Pilot Pump Flow 21 L/min
Hydraulic System Max Pressure 314 bar
Boost Pressure 343 bar
Travel Pressure 343 bar
Slew Pressure 290 bar
Attachment Pressure 314 bar
Weights
Operating Weight 49900 - 50300 kg
Ground Bearing Pressure 93 - 94 kPa
Triple Articulated Boom Specification Weight 49900 - 50300 kg
Triple Articulated Boom Ground Pressure 93 - 94 kPa
Demolition Boom Specification Weight 49900 kg
Demolition Boom Ground Pressure 93 kPa
Counterweight 10080 kg
Max Tool Weight For Demolition Boom 2600 - 4000 kg
Attachment Type Shear Jaws
Attachment Weight 2600 - 3800 kg
