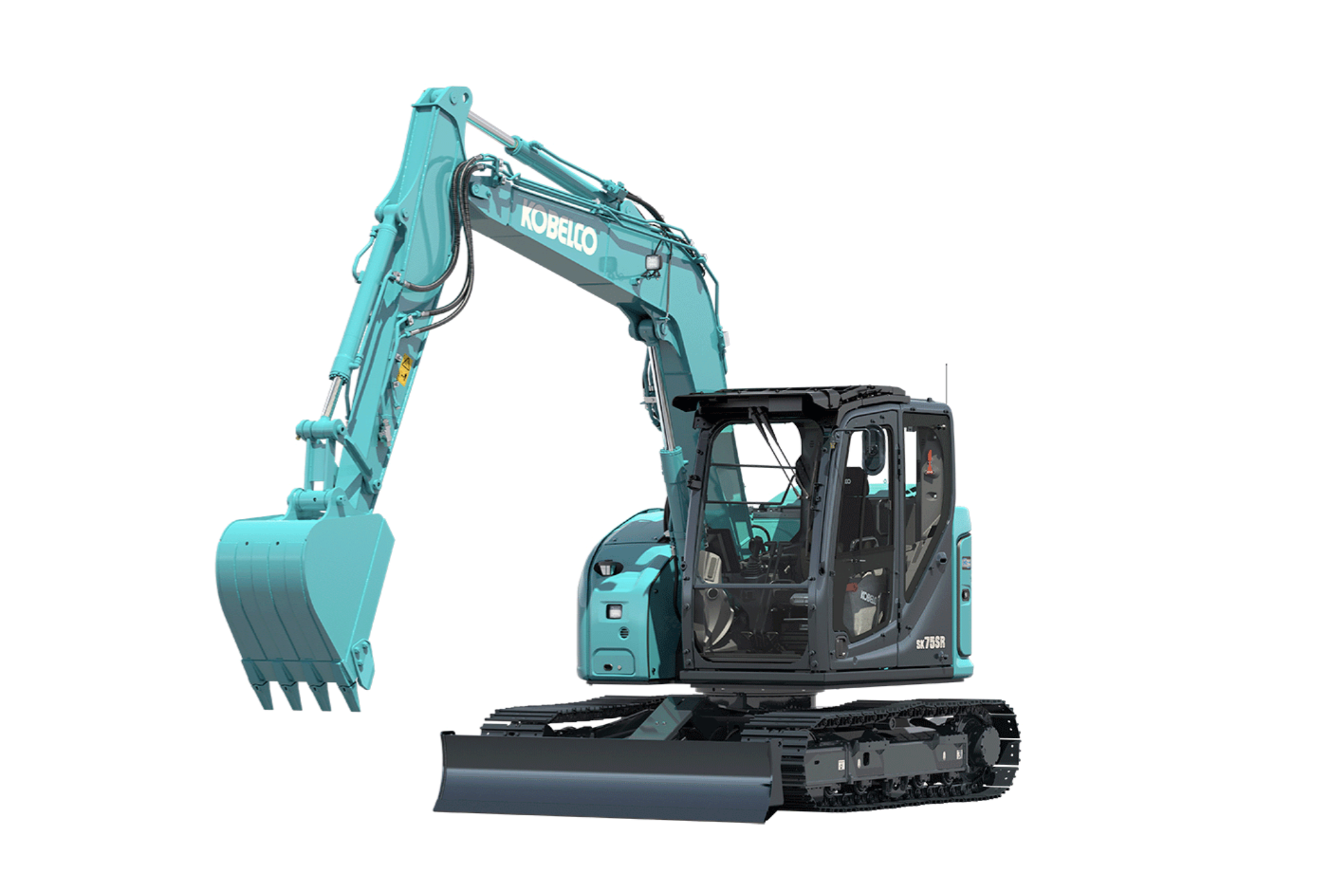

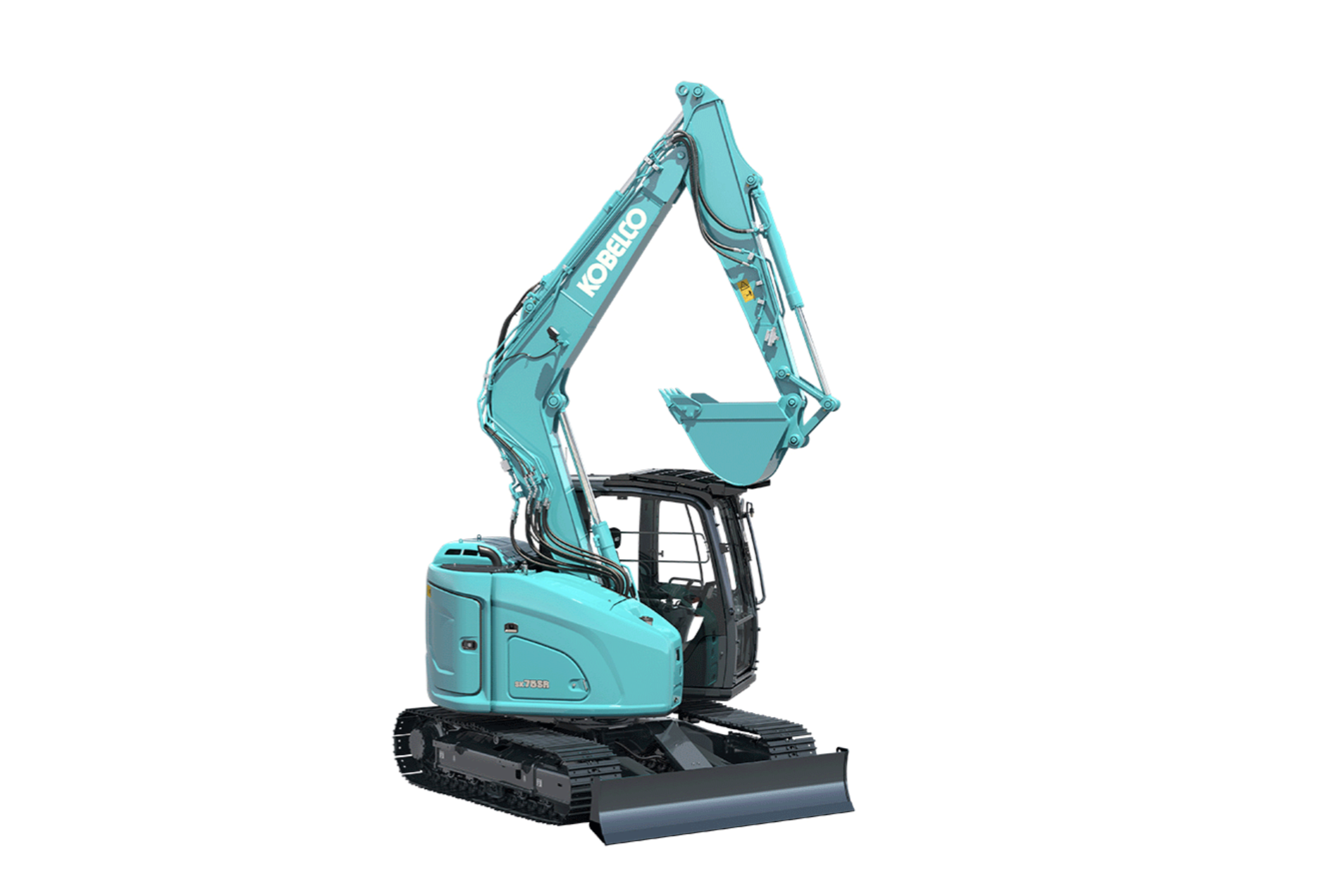

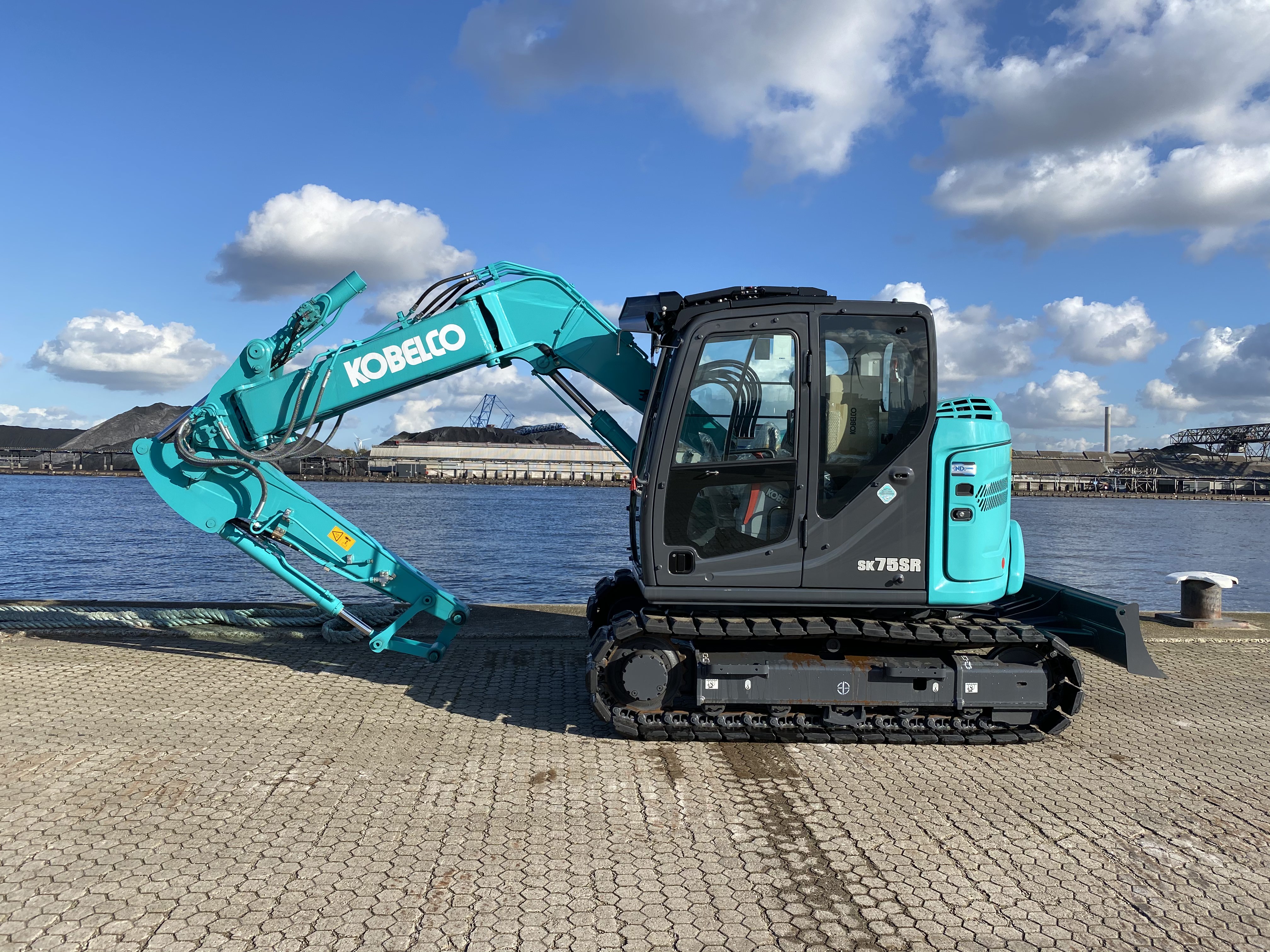

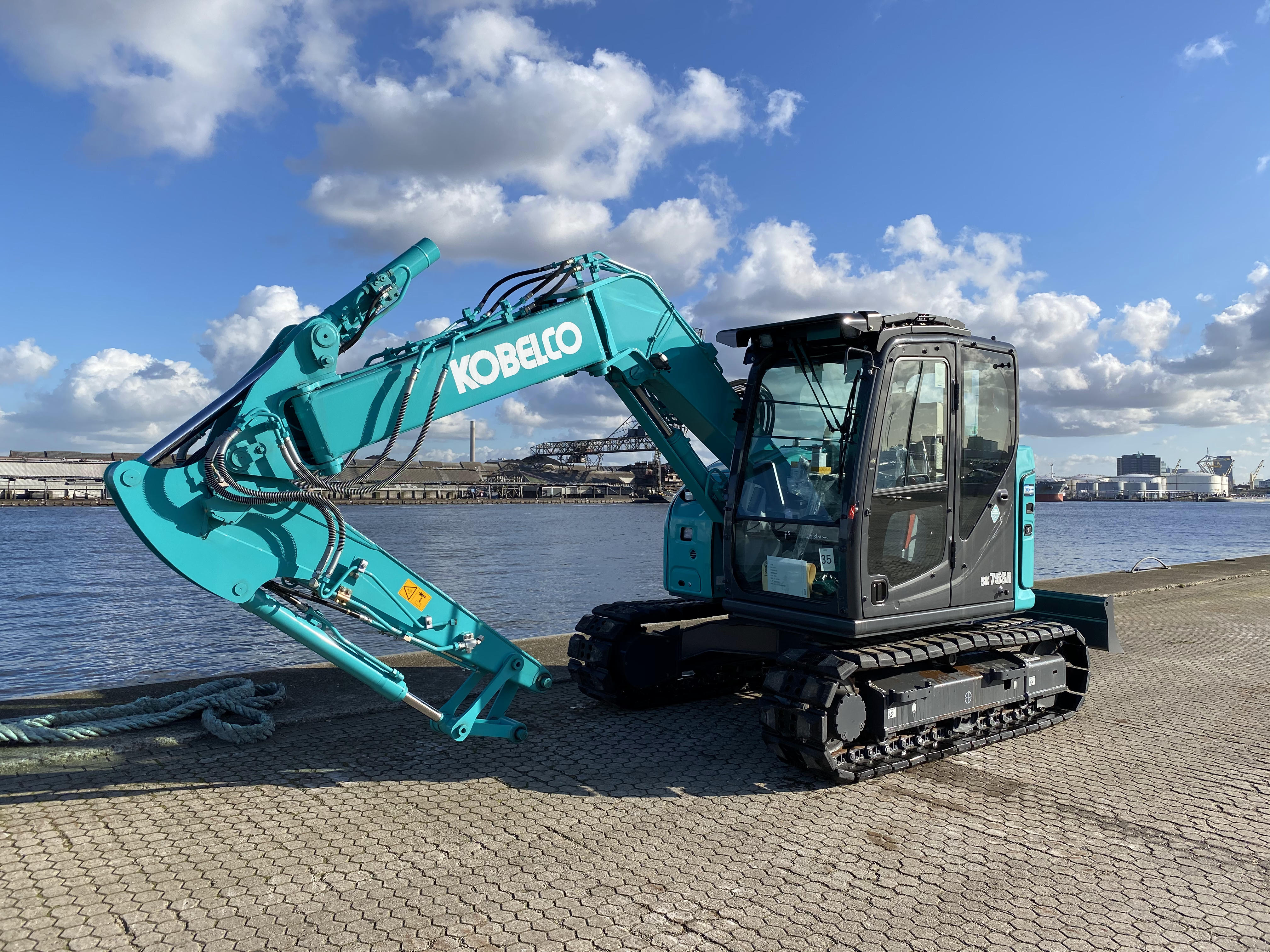

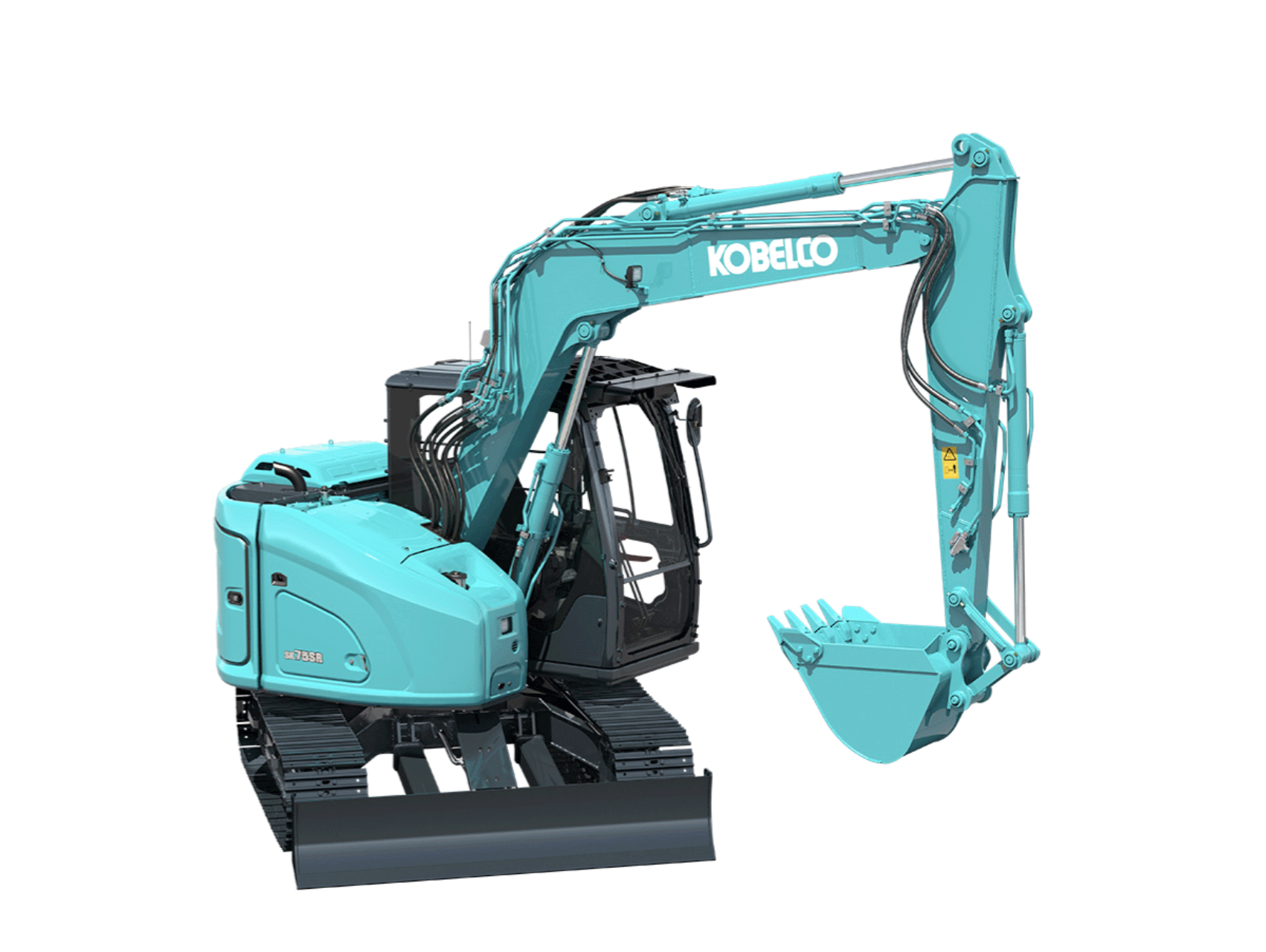

SK75SR-7E

SR Series

Operationeel gewicht 6 - 10 t

SPECIFICATIONS

Key specifications for SK75SR-7E

Description

Telematics

Available	Standard

Driveline

Dimensions

Mono Boom	6360 mm
Over Boom	2540 mm
Without Boom	2570 mm
Max Height	2570 mm
Superstructure	2300 mm
Undercarriage	2300 mm
Overall Width	2300 mm
Track Length On Ground	2210 mm
Undercarriage Length	2830 mm
Tailswing Radius	1380 mm
Tail Length	1380 mm
Zero Tailswing	No
Cab	2570 mm
Counterweight Clearance	720 mm
Ground Clearance	350 mm
Capacity Rating Standard	ISO
Reference Capacity	0.22 m³
Min Capacity	0.11 m³
Max Capacity	0.35 m³
Min Weight	150 kg
Max Weight	230 kg
Available	Yes
Type	Straight
Raised Height	360 mm
Dig Depth	250 mm
Width Over Tracks	2300 mm
Track Gauge	1850 mm
Variable Undercarriage Available	No
Digging Reach	6880 mm
Ground Level Reach	6760 mm
Dig Height	7750 mm
Dump Height	5670 mm
Vertical Wall	4140 mm
Dig Depth - 2.44m (8ft) Flat Bottom	4310 mm
Dig Depth	4580 mm
Front Slew Radius	2130 mm
Rating Standard	ISO 10567
Reach At Ground Level	5.68 m

Capacities

Performance

Ground Bearing Pressure	28 kPa
Slew Speed	11.5 rpm
Slew Torque	17 kNm
Travel Speed - Low	2.7 kph
Travel Speed - High	5 kph
Tractive Force	77.3 kN
Boost Pressure Used For Breakout	Unlisted
Dipper Tearout	35.2 kN
Bucket Breakout	60.2 kN
Gradeability	30 °
Gradeability	58 %
Internal Noise - LpA	73 dB(A)
External Noise - LwA	98 dB(A)
Lift Quoted With Bucket	No
Lift Quoted With Quick-Hitch	No
Lift Quoted With Dozer-Up/Down	Up
End Lift - 3.0m	2860 kg
Side Lift - 3.0m	2330 kg
End Lift - 4.5m	1530 kg
Side Lift - 4.5m	1290 kg
End Lift - Max	1090 kg
Side Lift - Max	930 kg
Main Pumps	2
Main Pump - Total	145 L/min
Boom	294 bar
Dipper	294 bar
Attachment	294 bar

Weights

Mono Boom	8230 kg
