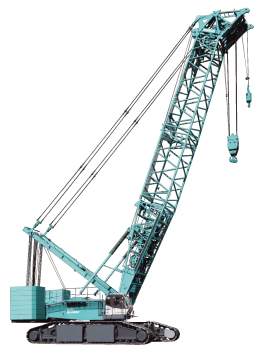

SL4500S

SL4500S

Large-Sized Crawler Cranes
Operationeel gewicht + 50 t
SPECIFICATIONS

Key specifications for SL4500S

Weights
Operating Weight 311000 - 400000 kg
Counterweight 151000 - 160000 kg
Base Machine Weight 60085 kg
Ground Pressure 134 - 173 kPa
Performance
Swing Speed 1.2 rpm
Travel Speed Low 0.6 kph
Travel Speed High 1 kph
Max Line Speed 110 m/min
Rated Line Pull 132 - 137 kN
Wire Rope Diameter 28 mm
Main Rope Length 720 m
Auxiliary Rope Length 280 m
Hydraulic System
Main Pump Max Flow 7 L/min
Hydraulic System Max Pressure 320 bar
Capacities
Fuel Tank Capacity 600 L
Hydraulic Tank Capacity 710 L
Dimensions
Transportation Width 2990 mm
Transportation Height 3405 mm
Crawler Width 8720 mm
Crawler Length 10515 mm
Tail Swing Radius 8215 mm
Shoe Width 1200 mm
Engine
Engine Manufacturer Hino
Engine Model E13C-WY
Engine Power 330 kW
Rated Speed 1800
Displacement 12.913 L
Cooling Water
Aspiration Turbocharged
Main Boom
Main Boom Length 78 m
Main Boom Max Lifting Capacity 300000 - 400000 kg
Luffing Jib
Luffing Jib Length 66 m
Luffing Jib Max Lifting Capacity 80000 - 113500 kg
