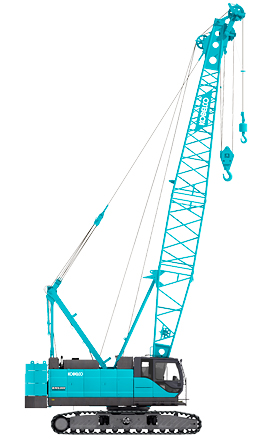

BMS800

BMS800

Heavy Duty Crawler Cranes

The KOBELCO BMS800 is a compact lattice boom crawler crane designed for foundation work and efficient lifting operations. It combines reliable lifting performance, flexible configurations and robust durability, making it ideal for piling, urban construction and civil engineering projects where space and stability are key.

Industry Foundation General lifting
Operating weight + 50 t
SPECIFICATIONS

Key specifications for BMS800

Weights
Operating Weight 76000 kg
Counterweight 25400 kg
Base Machine Weight 48630 kg
Ground Pressure 85.8 kPa
Performance
Swing Speed 4 rpm
Travel Speed Low 1.1 kph
Travel Speed High 1.7 kph
Max Line Speed 120 m/min
Rated Line Pull 108 kN
Wire Rope Diameter 26 mm
Main Rope Length 175 m
Auxiliary Rope Length 130 m
Hydraulic System
Main Pump Max Flow 3 L/min
Hydraulic System Max Pressure 319 bar
Capacities
Fuel Tank Capacity 400 L
Hydraulic Tank Capacity 375 L
Dimensions
Transportation Width 3500 mm
Transportation Height 3300 mm
Crawler Width 5130 mm
Crawler Length 6280 mm
Tail Swing Radius 4300 mm
Shoe Width 800 mm
Engine
Engine Manufacturer Hino
Engine Model P11C-VH
Engine Power 271 kW
Rated Speed 1850
Displacement 10.52 L
Cooling Water
Aspiration Turbocharged
Charged Air Cooling Intercooler
Cylinders 6
Main Boom
Main Boom Length 54.9 m
Main Boom Max Lifting Capacity 80000 kg
For more detailed information, please download the brochure and specifications.
