7250S

overview products

Images and videos

BMS Series, 7000S, 7055

Product specifications 7250S

Max. Lifting Capacity:

250 t × 4.6 m

Max. Length:

76.2 m

Max. combination lenght:

76.2 m + 30.5 m

Contact
Download PDF
Download Specs

Product specifications

Crane Boom

Max. Lifting Capacity:

250 t × 4.6 m

Max. Length:

76.2 m

Fixed Jib

Max. Lifting Capacity:

22.7 t × 15.0 m

Max. Combination:

76.2 m + 30.5 m

Main & Aux. Winch

Max. Line Speed:

110 m/min

Rated Line Pull (Single Line):

132 kN {13.5 tf}

Wire Rope Diameter:

28 mm

Wire Rope Length:

390 m (Main), 220 m (Aux.)

Brake Type:

Wet-type multiple disc brake (Optional)

Power Plant

Model:

HINO P11C-VH

Engine Output:

271 kW / 1,850 min-1

Fuel Tank Capacity:

400 liters

Working Speed

Swing Speed:

2.2 min-1 {rpm}

Travel Speed:

1.0 / 0.5 km/h

Hydraulic System

Main Pumps:

4 variable displacement

Max. Pressure:

31.9 MPa {325 kgf/cm2}

Hydraulic Tank Capacity:

650 liters

Weight

Operating Weight:

212t

Ground Pressure:

123 kPa

Counterweight:

97,1t

Transport Weight:

45,2t

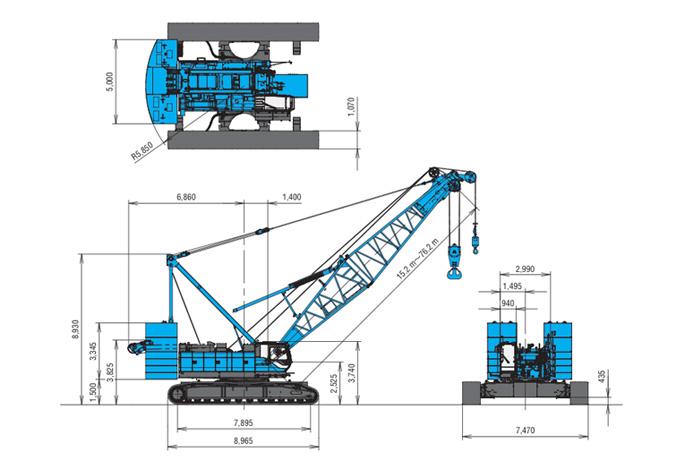

General Dimensions
