Product specifications BMS1000

Max. Lifting Capacity:

100 t × 3.8 m

Max. Length:

62.6 m

Contact
Download PDF
Download Specs

Product specifications

Crane Boom

Max. Lifting Capacity:

100 t × 3.8 m

Max. Length:

62.6 m

Fixed Jib

Main & Aux. Winch

Max. Line Speed:

110 m/min (1st layer)

Rated Line Pull (Single Line):

132 kN {13.5 tf}

Wire Rope Diameter:

28 mm × 200 m

Wire Rope Length:

175 m (Main), 130 m (Aux.)

Brake Type:

Wet-type multiple disc brake

Power Plant

Model:

HINO P11C-VH

Engine Output:

271 kW / 1,850 min-1

Fuel Tank Capacity:

400 liters

Working Speed

Swing Speed:

3.2 min-1 {rpm}

Travel Speed:

1.4 / 1.0 km/h

Hydraulic System

Main Pumps:

3 variable displacement

Max. Pressure:

31.9 MPa {325 kgf/cm2}

Hydraulic Tank Capacity:

440 liters

Weight

Operating Weight:

107 t

Ground Pressure:

108.8 kPa

Counterweight:

37,140 kg

Transport Weight:

31,000 kg

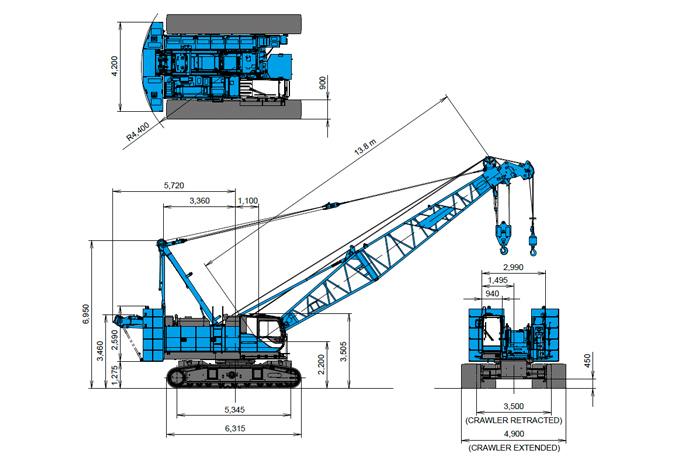

General Dimensions
