Product specifications BMS800

Max. Lifting Capacity:

80 t × 3.6 m

Max. Length:

54.9 m

Contact
Download PDF
Download Specs

Product specifications

Crane Boom

Max. Lifting Capacity:

80 t × 3.6 m

Max. Length:

54.9 m

Fixed Jib

Main & Aux. Winch

Max. Line Speed:

120 m/min (1st layer)

Rated Line Pull (Single Line):

108 kN {11.0 tf}

Wire Rope Diameter:

26 mm × 175 m

Wire Rope Length:

175 m (Main), 130 m (Aux.)

Brake Type:

Wet-type multiple disc brake

Power Plant

Model:

HINO P11C-VH

Engine Output:

271 kW / 1,850 min-1 {rpm}

Fuel Tank Capacity:

400 liters

Working Speed

Swing Speed:

4.0 min-1 {rpm}

Travel Speed:

1.7 / 1.2 km/h

Hydraulic System

Main Pumps:

3 variable displacement

Max. Pressure:

31.9 MPa {325 kgf/cm2}

Hydraulic Tank Capacity:

440 liters

Weight

Operating Weight:

77.0 t

Ground Pressure:

86.9 kPa

Counterweight:

25,400 kg

Transport Weight:

43,210 kg

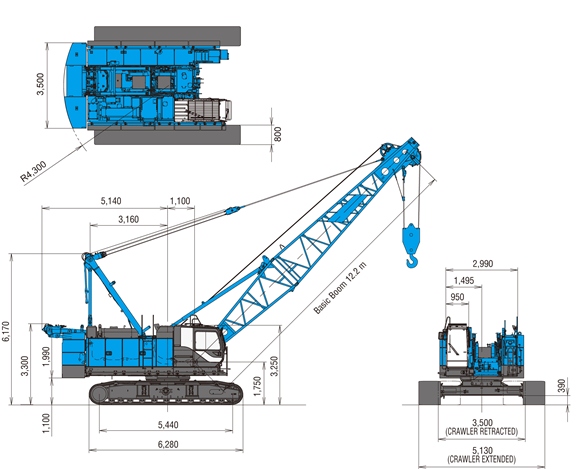

General Dimensions
