CKE800G-3

CKE-G Series, BME-G Series

Product specifications CKE800G-3
Max. Lifting Capacity:

80 t × 3.0 m

Max. Length:

54.9 m

Max. combination lenght:

42.7 m + 18.3 m
45.7 m + 12.2 m

Contact
Download PDF
Download Specs





Product specifications

Crane Boom

Max. Lifting Capacity:
80 t × 3.0 m
Max. Length:
54.9 m

Fixed Jib

Max. Lifting Capacity:
6.6 t × 20.0 m
Max. Combination:
42.7 m + 18.3 m, 45.7 m + 12.2 m

Main & Aux. Winch

Max. Line Speed:
120 m/min (1st layer)
Rated Line Pull (Single Line):
78 kN {8.0 tf}
Wire Rope Diameter:
22 mm × 220 m
Wire Rope Length:
220 m (Main), 130 m (Aux.)
Brake Type:
Wet-type multiple disc brake (Optional)

Power Plant

Model:
HINO J08E-YD
Engine Output:
213 kW / 2,100 min-1
Fuel Tank Capacity:
400 liters

Working Speed

Swing Speed:
4.0 min-1 {rpm}
Travel Speed:
1.73 / 1.1 km/h

Hydraulic System

Main Pumps:
3 variable displacement
Max. Pressure:
31.9 MPa {325 kgf/cm2}
Hydraulic Tank Capacity:
acity 440 liters

Weight

Operating Weight:
75.7 t
Ground Pressure:
84.8 kPa
Counterweight:
27,180 kg
Transport Weight:
39,780 kg

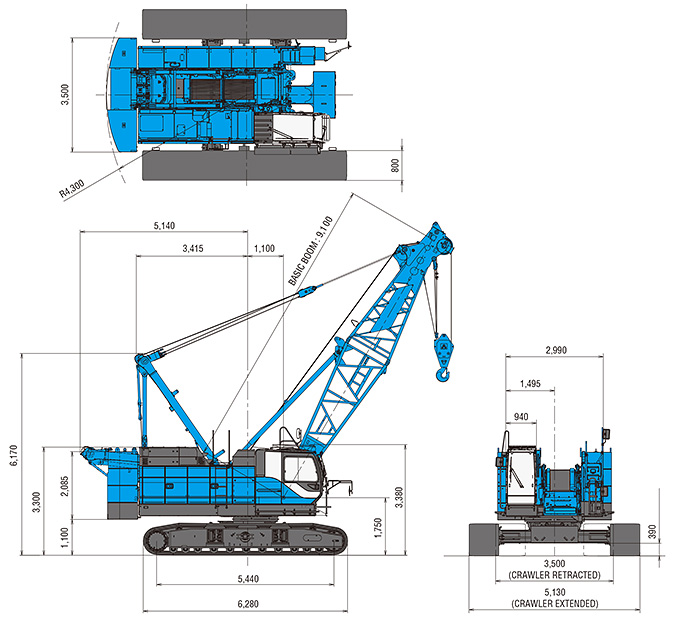

General Dimensions

General Dimensions
