CKS1100

overview products

Images and videos

CKS Series

Product specifications CKS1100

Max. Lifting Capacity:

110 t × 3.6 m

Max. Length:

70.1 m

Max. combination lenght:

61.0 m + 21.3 m

Contact
Download PDF
Download Specs

Product specifications

Crane Boom

Max. Lifting Capacity:

110 t × 3.6 m

Max. Length:

70.1 m

Fixed Jib

Max. Lifting Capacity:

10.9 t × 22.0 m

Max. Combination:

61.0 m + 21.3 m

Main & Aux. Winch

Max. Line Speed:

120 m/min (1st layer)

Rated Line Pull (Single Line):

108 kN {11.0 tf}

Wire Rope Diameter:

26 mm × 265 m

Wire Rope Length:

265 m (Main), 235 m (Aux.)

Brake Type:

Wet-type multiple disc brake (Optional)

Power Plant

Model:

HINO J08E-VM

Engine Output:

213 kW / 2,100 min-1

Fuel Tank Capacity:

400 liters

Working Speed

Swing Speed:

3.2 min-1 {rpm}

Travel Speed:

1.4 / 1.0 km/h

Hydraulic System

Main Pumps:

3 variable displacement

Max. Pressure:

31.9 MPa {325 kgf/cm2}

Hydraulic Tank Capacity:

535 liters

Weight

Operating Weight:

102 t

Ground Pressure:

95.4 kPa

Counterweight:

34,600 kg

Transport Weight:

57,410 kg

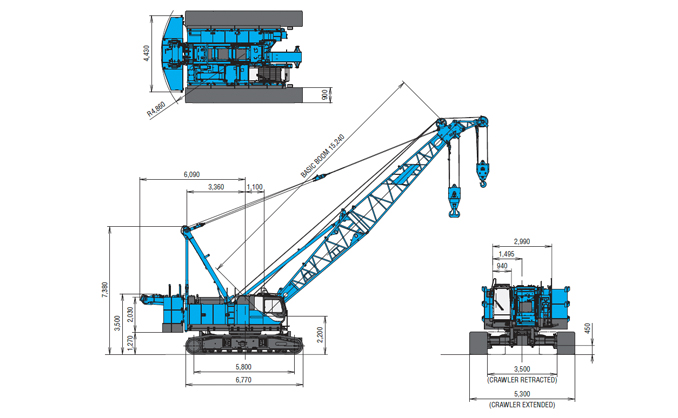

General Dimensions
