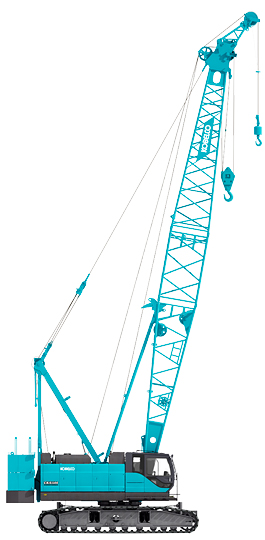

CKS1100

CKS1100

Multi-Purpose Crawler Cranes

The KOBELCO CKS1100 is a lattice boom crawler crane designed for reliable lifting and foundation work. It delivers strong lifting performance, durable construction and flexible configurations, making it ideal for civil engineering, piling and general construction projects where stability and efficiency are essential.

Industry Foundation General lifting
Operating weight 15t+
SPECIFICATIONS

Key specifications for CKS1100

Weights
Operating Weight 102000 kg
Counterweight 34600 kg
Base Machine Weight 57410 kg
Ground Pressure 95.4 kPa
Performance
Swing Speed 3.2 rpm
Travel Speed Low 1 kph
Travel Speed High 1.4 kph
Max Line Speed 120 m/min
Rated Line Pull 108 kN
Wire Rope Diameter 26 mm
Main Rope Length 265 m
Auxiliary Rope Length 235 m
Hydraulic System
Main Pump Max Flow 4 L/min
Hydraulic System Max Pressure 319 bar
Capacities
Fuel Tank Capacity 400 L
Hydraulic Tank Capacity 455 L
Dimensions
Transportation Width 3500 mm
Transportation Height 3500 mm
Crawler Width 5300 mm
Crawler Length 6770 mm
Tail Swing Radius 4860 mm
Shoe Width 900 mm
Engine
Engine Manufacturer Hino
Engine Model J08E-VM
Engine Power 213 kW
Rated Speed 2100
Displacement 7.684 L
Cooling Water
Aspiration Turbocharged
Charged Air Cooling Intercooler
Cylinders 6
Main Boom
Main Boom Length 70.1 m
Main Boom Max Lifting Capacity 110000 kg
Fixed Jib
Fixed Jib Length 21.3 m
Fixed Jib Max Lifting Capacity 10900 kg
For more detailed information, please download the brochure and specifications.
