CKS1350

CKS1350

Multi-Purpose Crawler Cranes

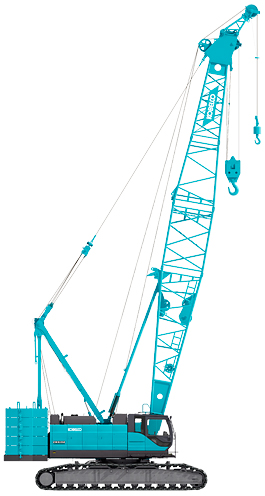

The KOBELCO CKS1350 is a lattice boom crawler crane designed for heavy lifting and foundation work. It combines powerful lifting capacity, robust durability and flexible configurations, making it ideal for civil engineering, piling and large construction projects where stability and productivity are essential.

Industry Foundation General lifting
Operating weight + 50 t
SPECIFICATIONS

Key specifications for CKS1350

Weights
Operating Weight 136000 kg
Counterweight 55000 kg
Base Machine Weight 32430 kg
Ground Pressure 106 kPa
Performance
Swing Speed 2.1 rpm
Travel Speed Low 0.9 kph
Travel Speed High 1.3 kph
Max Line Speed 120 m/min
Rated Line Pull 132 kN
Wire Rope Diameter 26 mm
Main Rope Length 275 m
Auxiliary Rope Length 255 m
Hydraulic System
Main Pump Max Flow 4 L/min
Hydraulic System Max Pressure 319 bar
Capacities
Fuel Tank Capacity 400 L
Hydraulic Tank Capacity 455 L
Counterweight
Self Removal Device Standard
Dimensions
Transportation Width 6310 mm
Transportation Height 3215 mm
Crawler Width 6310 mm
Crawler Length 7895 mm
Tail Swing Radius 5500 mm
Shoe Width 910 mm
Engine
Engine Manufacturer Hino
Engine Model P11C-VH
Engine Power 271 kW
Rated Speed 1850
Displacement 10.52 L
Cooling Water
Aspiration Turbocharged
Charged Air Cooling Intercooler
Cylinders 6
Main Boom
Main Boom Length 76.2 m
Main Boom Max Lifting Capacity 135000 kg
Fixed Jib
Fixed Jib Length 30.5 m
Fixed Jib Max Lifting Capacity 26800 kg
Luffing Jib
Luffing Jib Length 53.3 m
For more detailed information, please download the brochure and specifications.
