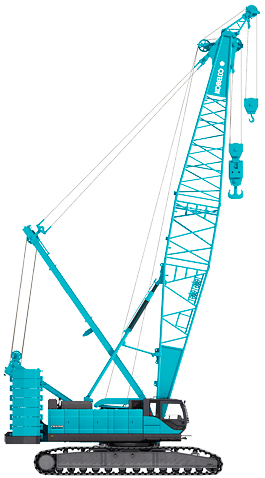

CKS2500

CKS2500

Multi-Purpose Crawler Cranes

The KOBELCO CKS2500 is a high-capacity lattice boom crawler crane engineered for heavy lifting and large-scale foundation work. It offers powerful lifting performance, robust durability and flexible configurations, making it ideal for major infrastructure, civil engineering and industrial projects where strength, stability and efficiency are critical.

Industry Foundation General lifting
Operating weight + 50 t
SPECIFICATIONS

Key specifications for CKS2500

Weights
Operating Weight 217000 kg
Counterweight 91000 kg
Base Machine Weight 44960 kg
Ground Pressure 111 kPa
Performance
Swing Speed 2.2 rpm
Travel Speed Low 0.5 kph
Travel Speed High 1 kph
Max Line Speed 110 m/min
Rated Line Pull 132 kN
Wire Rope Diameter 26 mm
Main Rope Length 460 m
Auxiliary Rope Length 390 m
Hydraulic System
Main Pump Max Flow 4 L/min
Hydraulic System Max Pressure 320 bar
Capacities
Fuel Tank Capacity 400 L
Hydraulic Tank Capacity 550 L
Counterweight
Self Removal Device Standard
Dimensions
Transportation Width 7620 mm
Transportation Height 3380 mm
Crawler Width 7620 mm
Crawler Length 8970 mm
Tail Swing Radius 6000 mm
Shoe Width 1220 mm
Engine
Engine Manufacturer Hino
Engine Model P11C-VH
Engine Power 271 kW
Rated Speed 1850
Displacement 10.52 L
Cooling Water
Aspiration Turbocharged
Charged Air Cooling Intercooler
Cylinders 6
Main Boom
Main Boom Length 91.4 m
Main Boom Max Lifting Capacity 250000 kg
Fixed Jib
Fixed Jib Length 30.5 m
Fixed Jib Max Lifting Capacity 27000 kg
Luffing Jib
Luffing Jib Length 61 m
For more detailed information, please download the brochure and specifications.
