SK1300DLC-11
SK1300DLC-11
SK1300DLC-11
SK1300DLC-11

SK1300DLC-11

Demolition and Recycling

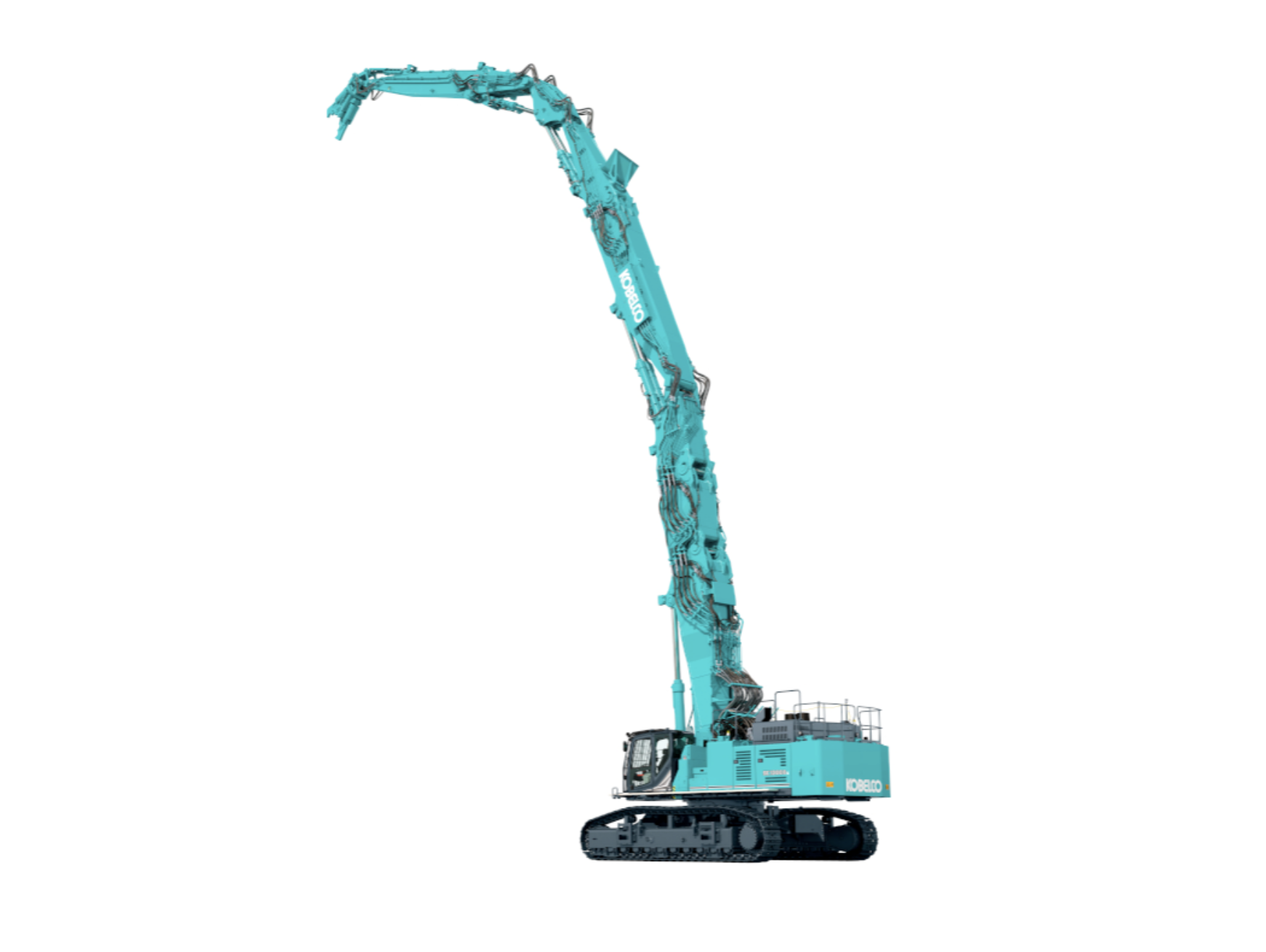

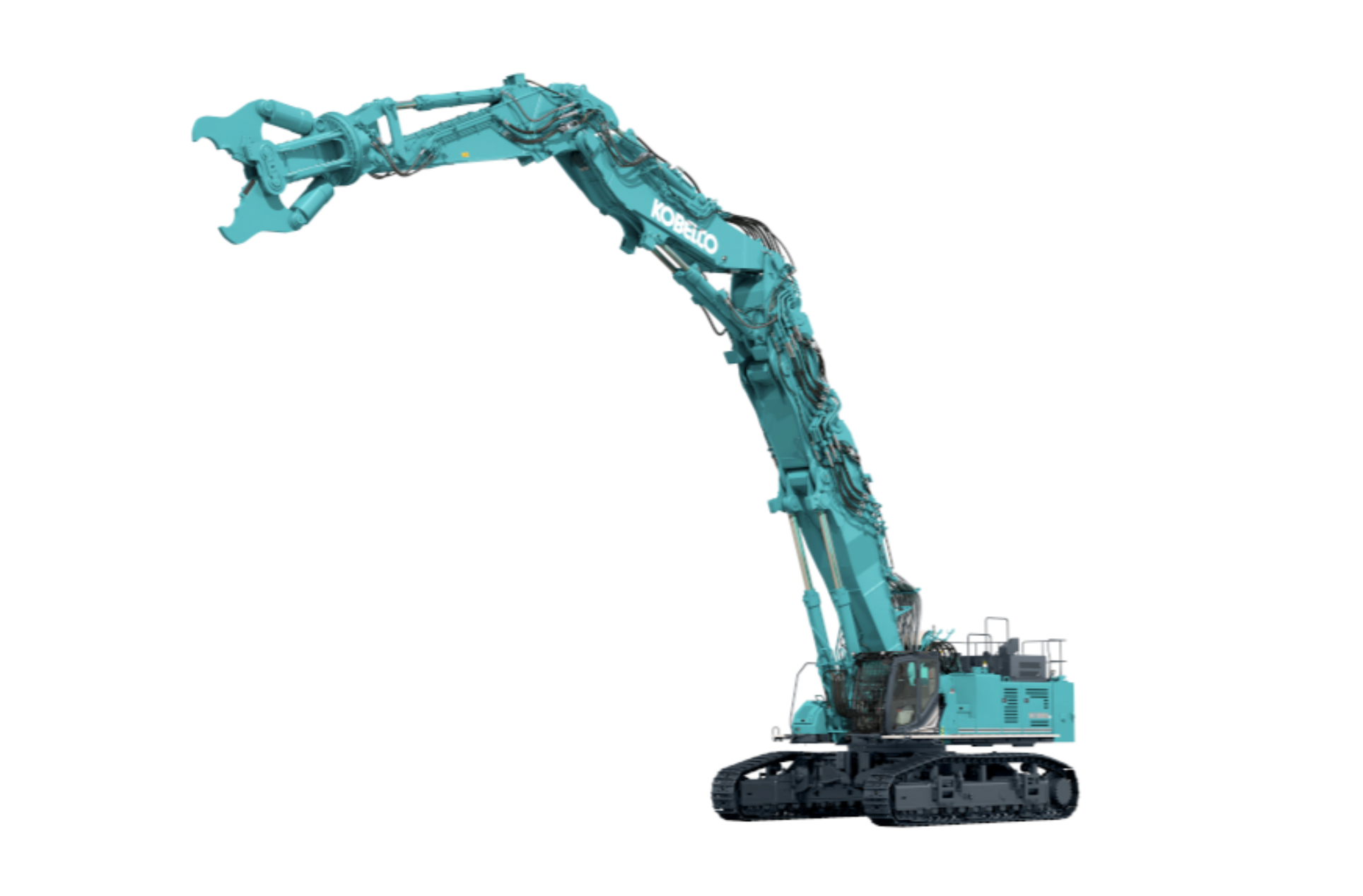

The KOBELCO SK1300DLC 11 is an ultra large demolition excavator (≈127–137 tonne class) engineered for high reach demolition and heavy structural dismantling. It is one of KOBELCO’s flagship demolition machines, combining extreme reach, high tool capacity and modular versatility for the toughest projects.

Industry Demolition
Operating weight + 50 t
Power 382 kW / 1,800 min-1
SPECIFICATIONS

Key specifications for SK1300DLC-11

Description
Telematics Available Yes
Rear View Camera Yes
Cab Tilt 30 °
Dipper Type Straight demolition
Number Of Booms 2
Cab Riser Tilt back
Engine
Engine Manufacturer Isuzu
Engine Model 6WG1
Cylinders 6
Aspiration Turbo
Exhaust System DOC-SCR
Cooling Water
Displacement 15.681 L
Rated Speed 1800 rpm
Gross Rating Standard ISO 14396
Gross Output 382 kW
Torque 2250 Nm
Driveline
Variable Undercarriage Available No
Width Over Tracks 5190 mm
Shoe Type Triple grouser
Shoe Width 650 mm

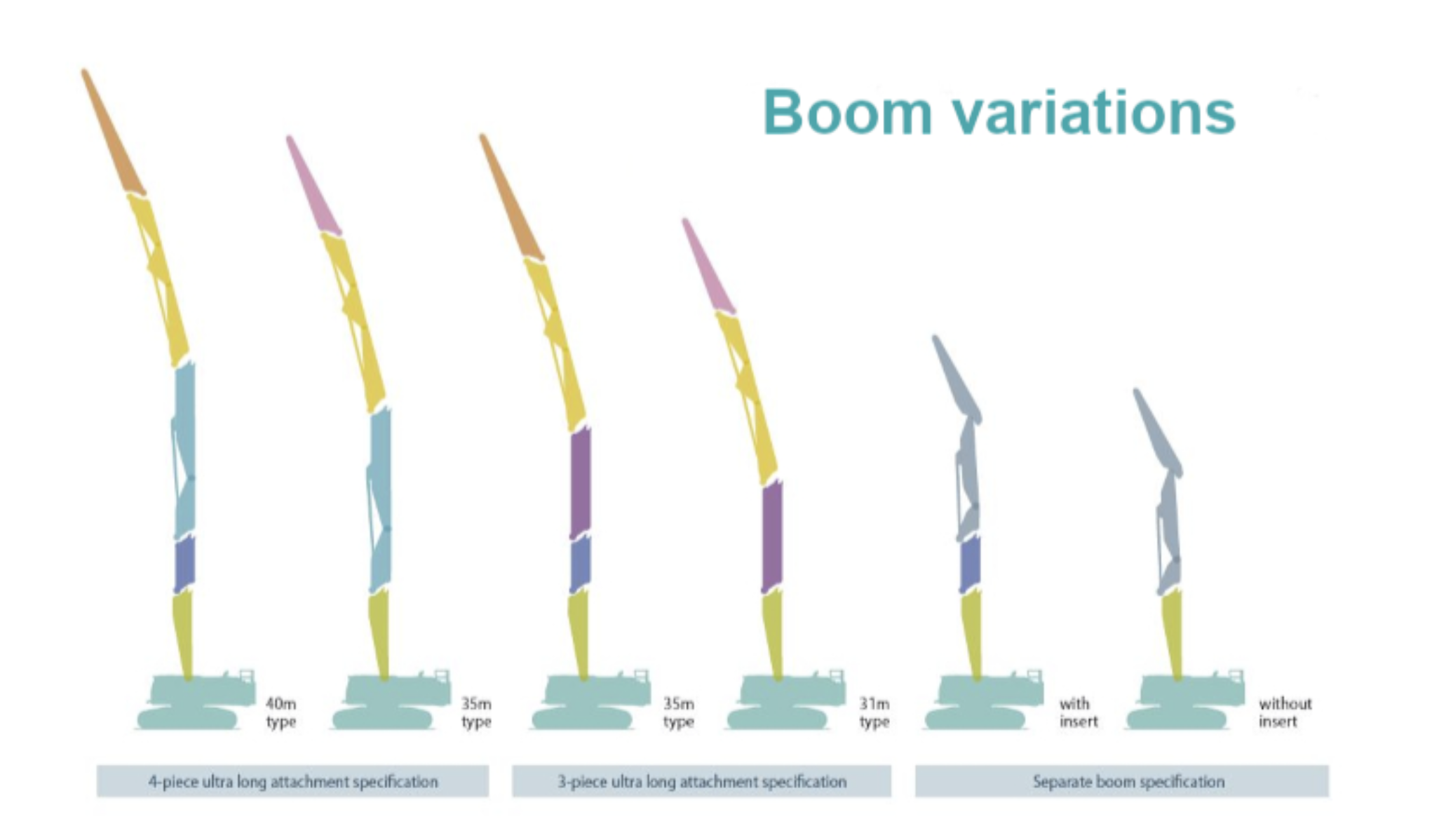

Dimensions
Triple Articulated 19810 - 24090 mm
Demolition Boom 18800 - 21350 mm
Over Triple Articulated Boom 4980 - 11920 mm
Over Demolition Boom 5310 - 5330 mm
Overall Width 5190 mm
Max Machine Width 5190 mm
Tailswing Radius 4820 mm
Undercarriage Length 6880 mm
Superstructure Width 3420 mm
Superstructure With Catwalks 3420 mm
Max Reach 16400 - 21400 mm
Max Height 30700 - 39570 mm
Max Reach At Max Height 13000 - 16400 mm
Max Reach 15100 mm
Ground Level Reach 15100 mm
Max Height 21020 - 23560 mm
Max Depth 7980 mm
Max Reach At Max Height 13500 - 13600 mm
Capacities
Fuel Tank 960 L
DEF Tank 83 L
Hydraulic Tank 599 L
Hydraulic System 1070 L
Engine Oil 57 L
Swing Oil 32 L
Cooling System 87.9 L
Performance
Slew Speed 3.3 - 6 rpm
Slew Torque 315 kNm
Travel Speed Low 2.6 kph
Travel Speed High 4.2 kph
Hydraulic System
Pump Type Variable axial piston
Main Pumps 2
Max Flow Per Pump 504 L/min
Main Pumps Max Flow 1008 L/min
Pilot Pump Flow 30.1 L/min
Hydraulic System Max Pressure 330 bar
Boost Pressure 340 bar
Travel Pressure 330 bar
Slew Pressure 259 bar
Attachment Pressure 330 bar
Pilot Pressure 50 bar
Weights
Operating Weight 127300 - 137700 kg
Ground Bearing Pressure 158 - 171 kPa
Demolition Boom Specification Weight 127300 - 137700 kg
Demolition Boom Ground Pressure 158 - 171 kPa
Counterweight 21900 kg
Max Tool Weight For Demolition Boom 4300 - 9600 kg
For more detailed specifications and lifting capacities, please download the brochure
Download brochure
