Conventional Excavators

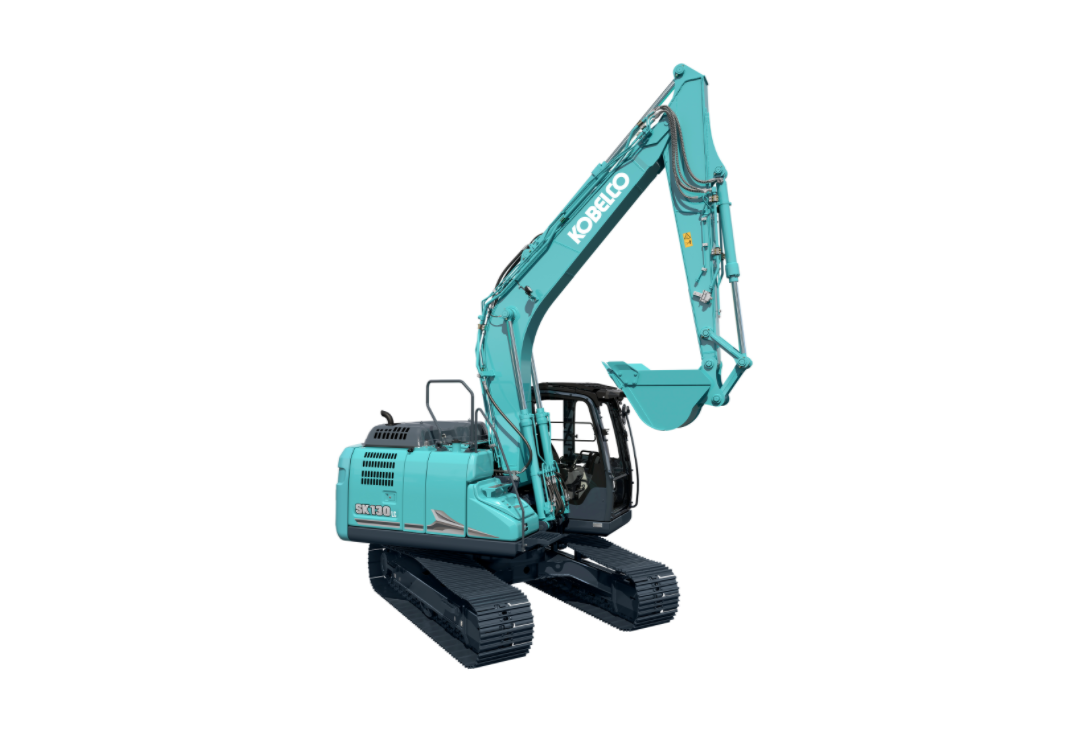

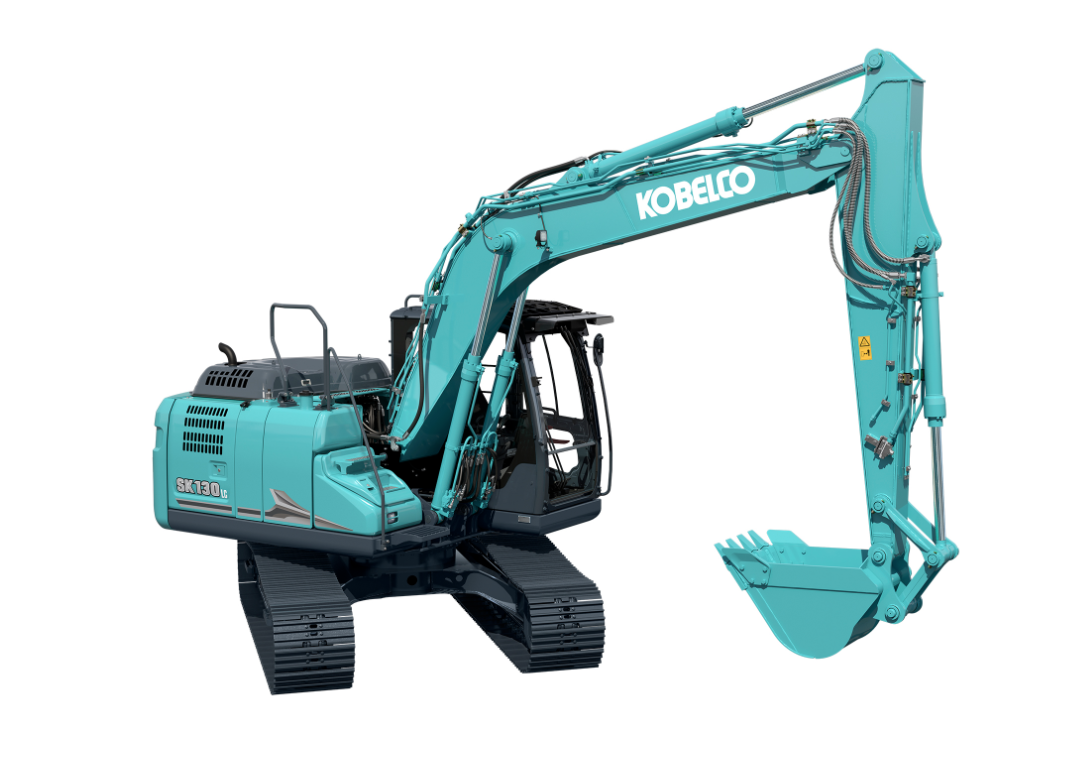

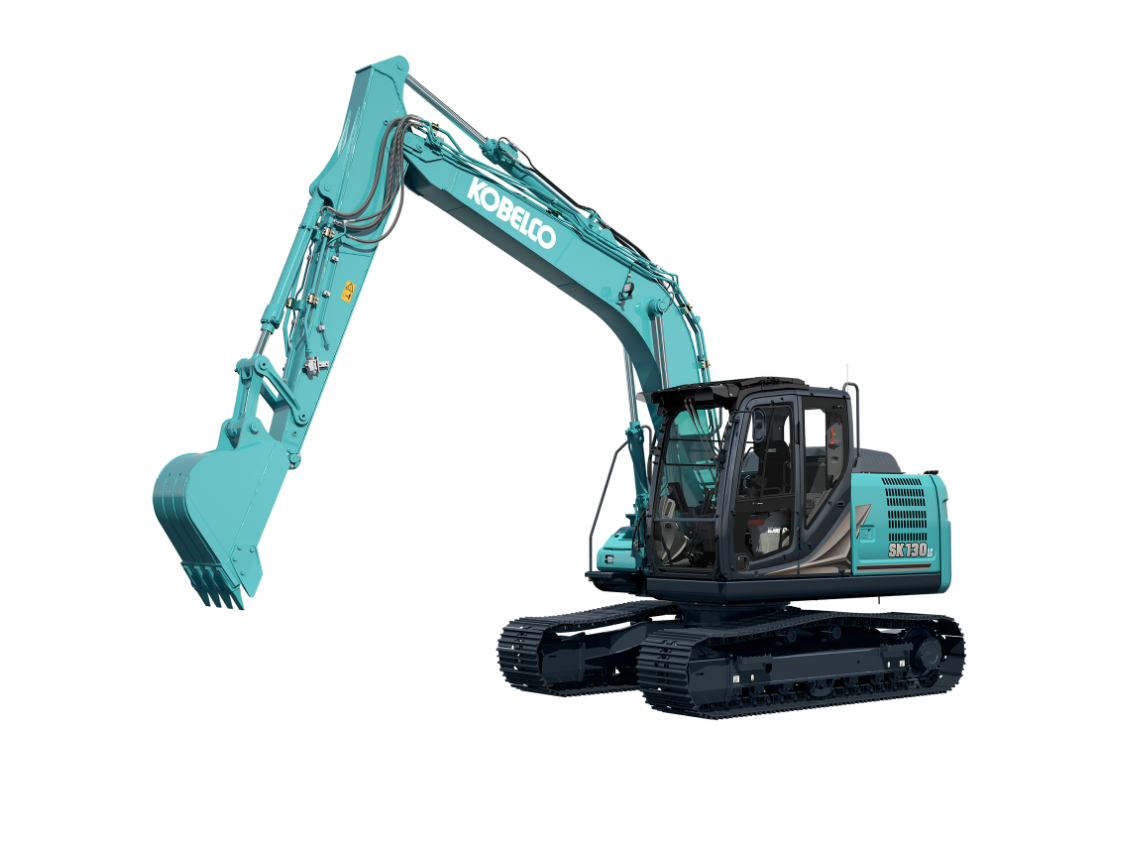

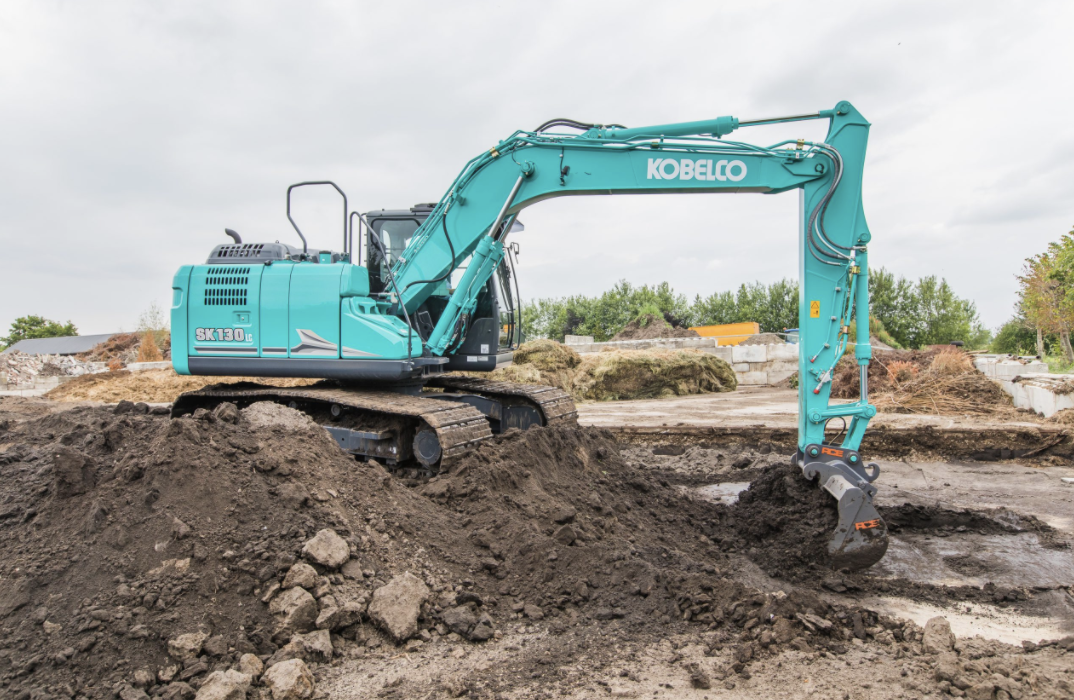

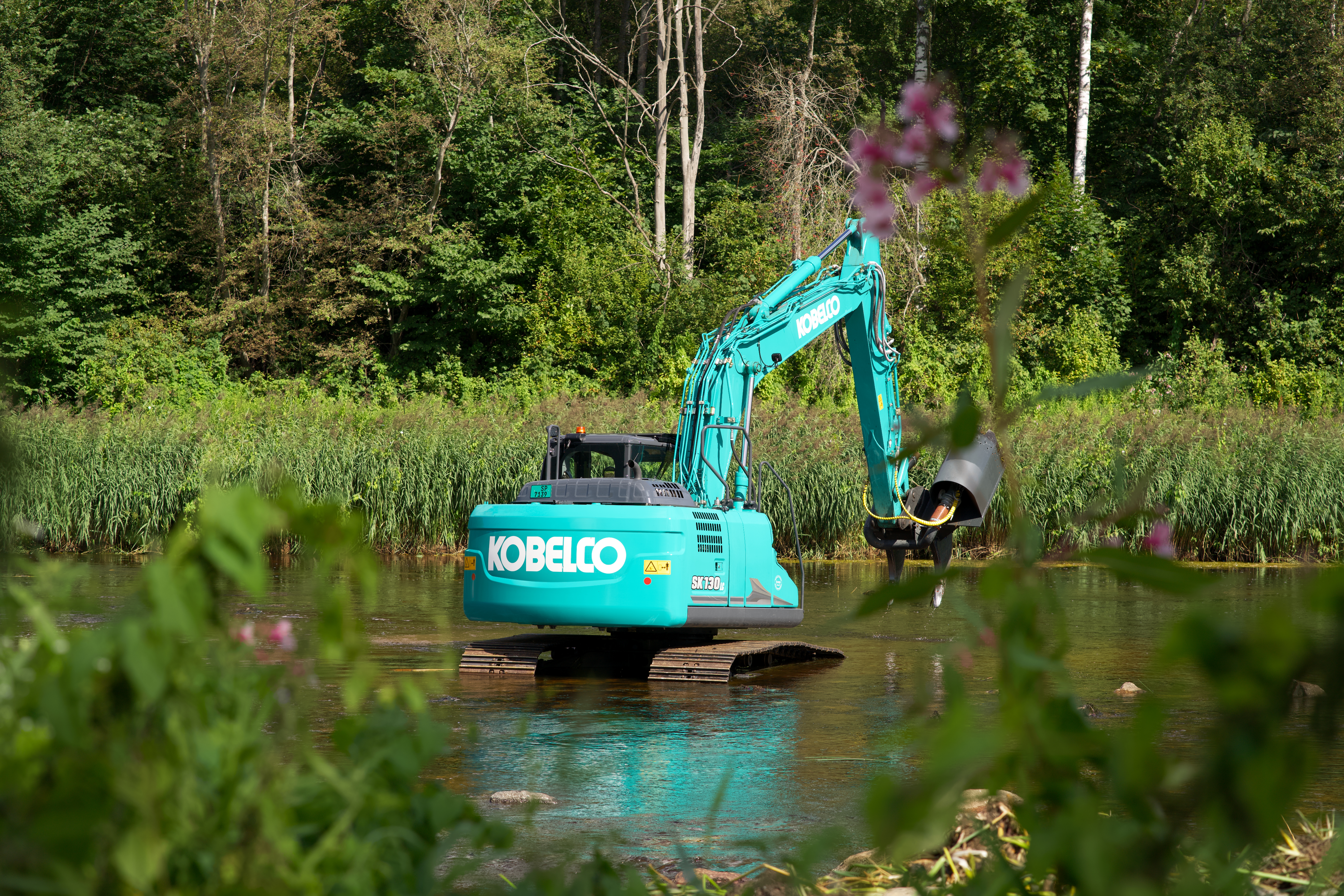

Powered by a 78.5 kW (107 hp) Stage V compliant Isuzu engine and backed by a high force bucket digging capability, the SK130LC-11 delivers strong productivity without compromise. Designed with a balanced chassis, next generation hydraulic system and a spacious cab featuring a 10 inch colour monitor and intuitive controls, the SK130LC-11 is built for demanding jobs where reliability, efficiency and operator ease matter most.

Industry Construction
Operating weight 10 - 18 t
Power 78.5 kW / 2,000 min-1
SPECIFICATIONS

Key specifications for SK130LC-11

Description
Number Of Boom Options 2
Rear View Camera Yes
Number Of Mono Booms 1
Boom Size 4.68 m
Number Of Dipper Options 2
Min Dipper Length 2380 mm
Max Dipper Length 2840 mm
Number Of Articulated Booms 1
Number Of Dipper Options 2
Min Dipper Length 2380 mm
Max Dipper Length 2840 mm
Dipper Length 2380 mm
Operating Weight 14700 - 15400 kg
Counterweight 2400 kg
Telematics
Available Standard
Driveline
Emission Rating Stage V
Manufacturer Isuzu
Model 4JJ1XDDV A01
Aspiration Turbo
Cooling Water
Cylinders 4
Displacement 2.999 L
Rated Speed 2000 rpm
Net Rating Standard ISO 9249
Net Output 71.3 kW
Gross Rating Standard ISO 14396
Carrier Rollers Per Side 2
Track Rollers Per Side 7
Shoe Width 600 mm
Shoe Type Triple grouser
Track Shoes Per Side 46
Dimensions
Mono Boom 7770 mm
Articulated Boom 8260 mm
Over Boom 2770 mm
Without Boom 2920 mm
Max Height 3100 - 3150 mm
Over Articulated Boom 2780 mm
Superstructure 2490 mm
Undercarriage 2590 mm
Overall Width 2590 mm
Track Length On Ground 3040 mm
Undercarriage Length 3780 mm
Tailswing Radius 2190 mm
Tail Length 2170 mm
Zero Tailswing No
Cab 2920 mm
Counterweight Clearance 915 mm
Ground Clearance 445 mm
Reference Capacity 0.5
Reference Weight 380 kg
Available Optional
Width 2590 mm
Raised Height 515 mm
Dig Depth 575 mm
Width Over Tracks 2590 mm
Track Gauge 1990 mm
Variable Undercarriage Available No
Digging Reach 8340 mm
Ground Level Reach 8170 mm
Dig Height 8450 mm
Dump Height 6080 mm
Vertical Wall 4450 mm
Dig Depth - 2.44m (8ft) Flat Bottom 5280 mm
Dig Depth 5520 mm
Front Slew Radius 2750 mm
Digging Reach 8800 mm
Ground Level Reach 8640 mm
Dig Height 8830 mm
Dump Height 6480 mm
Vertical Wall 4590 mm
Dig Depth - 2.44m (8ft) Flat Bottom 5580 mm
Dig Depth 5700 mm
Front Slew Radius 2940 mm
Rating Standard ISO 10567
Reach At Ground Level 6.91 m
Reach At Ground Level 7.38 m
Capacities
Fuel Tank 280 L
DEF Tank 33.9 L
Engine Oil 17 L
Cooling System 16 L
Hydraulic Tank 96.7 L
Hydraulic System 180 L
Performance
Ground Bearing Pressure 36.4 - 38.2 kPa
Slew Speed 11 rpm
Slew Torque 40.4 kNm
Travel Speed - Low 3.4 kph
Travel Speed - High 5.6 kph
Tractive Force 141 kN
Boost Pressure Used For Breakout Unlisted
Dipper Tearout 64 kN
Bucket Breakout 105.4 kN
Gradeability 35 °
Gradeability 70 %
Internal Noise - LpA 70 dB(A)
External Noise - LwA 101 dB(A)
Lift Quoted With Bucket No
Lift Quoted With Quick-Hitch No
Lift Quoted With Dozer-Up/Down Down
End Lift - 3.0m 6260 kg
Side Lift - 3.0m 5830 kg
End Lift - 4.5m 5480 kg
Side Lift - 4.5m 3230 kg
End Lift - 6.0m 3570 kg
Side Lift - 6.0m 2180 kg
End Lift - Max 1990 kg
Side Lift - Max 1800 kg
End Lift - 3.0m 3990 kg
Side Lift - 3.0m 3990 kg
End Lift - 4.5m 5220 kg
Side Lift - 4.5m 2940 kg
End Lift - 6.0m 3410 kg
Side Lift - 6.0m 1990 kg
End Lift - Max 2100 kg
Side Lift - Max 1490 kg
Main Pumps 2
Main Pump - Total 260 L/min
Boom 343 bar
Dipper 343 bar
Attachment 343 bar
Weights
Mono Boom 14700 - 15400 kg
For more detailed specifications and lifting capacities, please download the brochure
