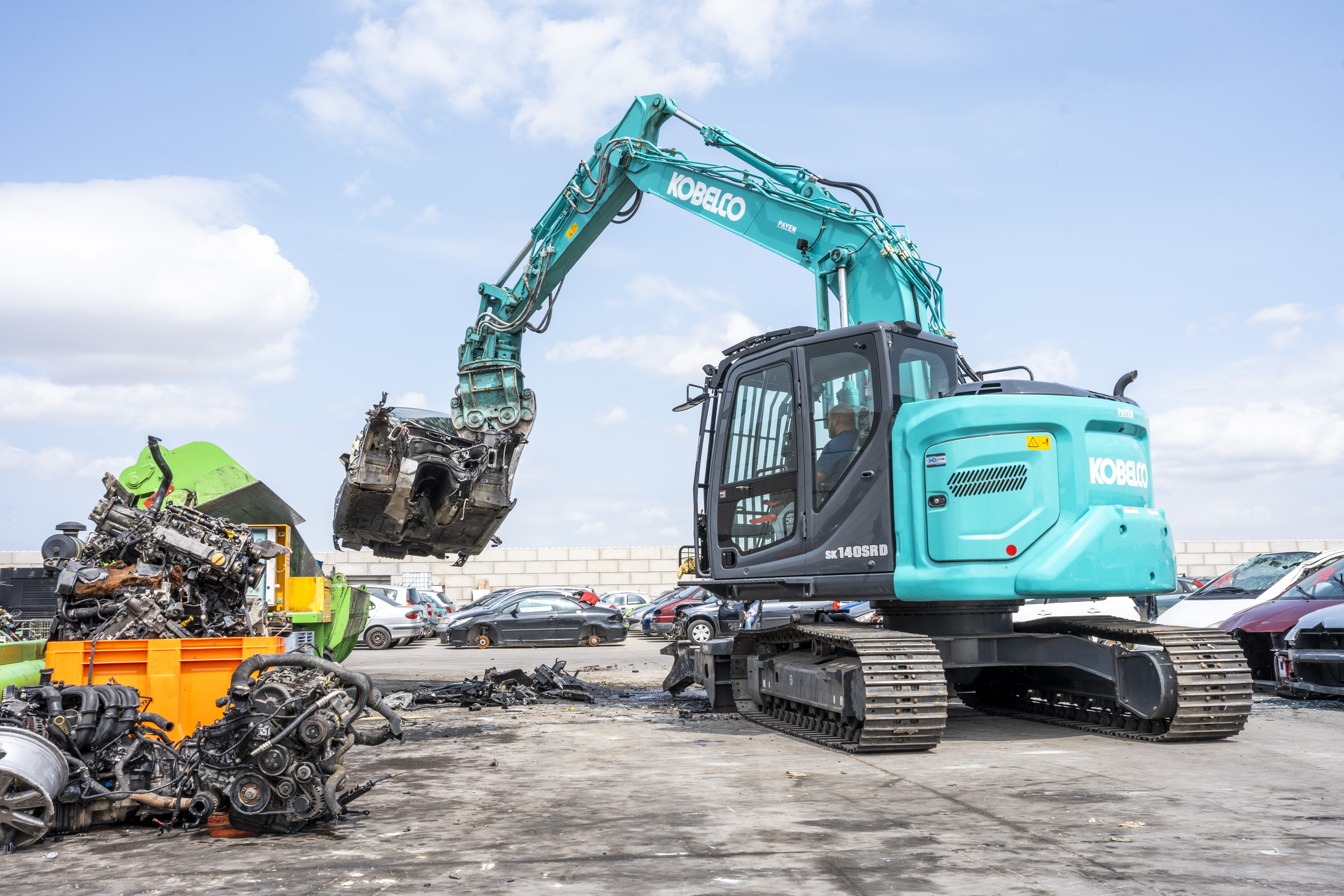

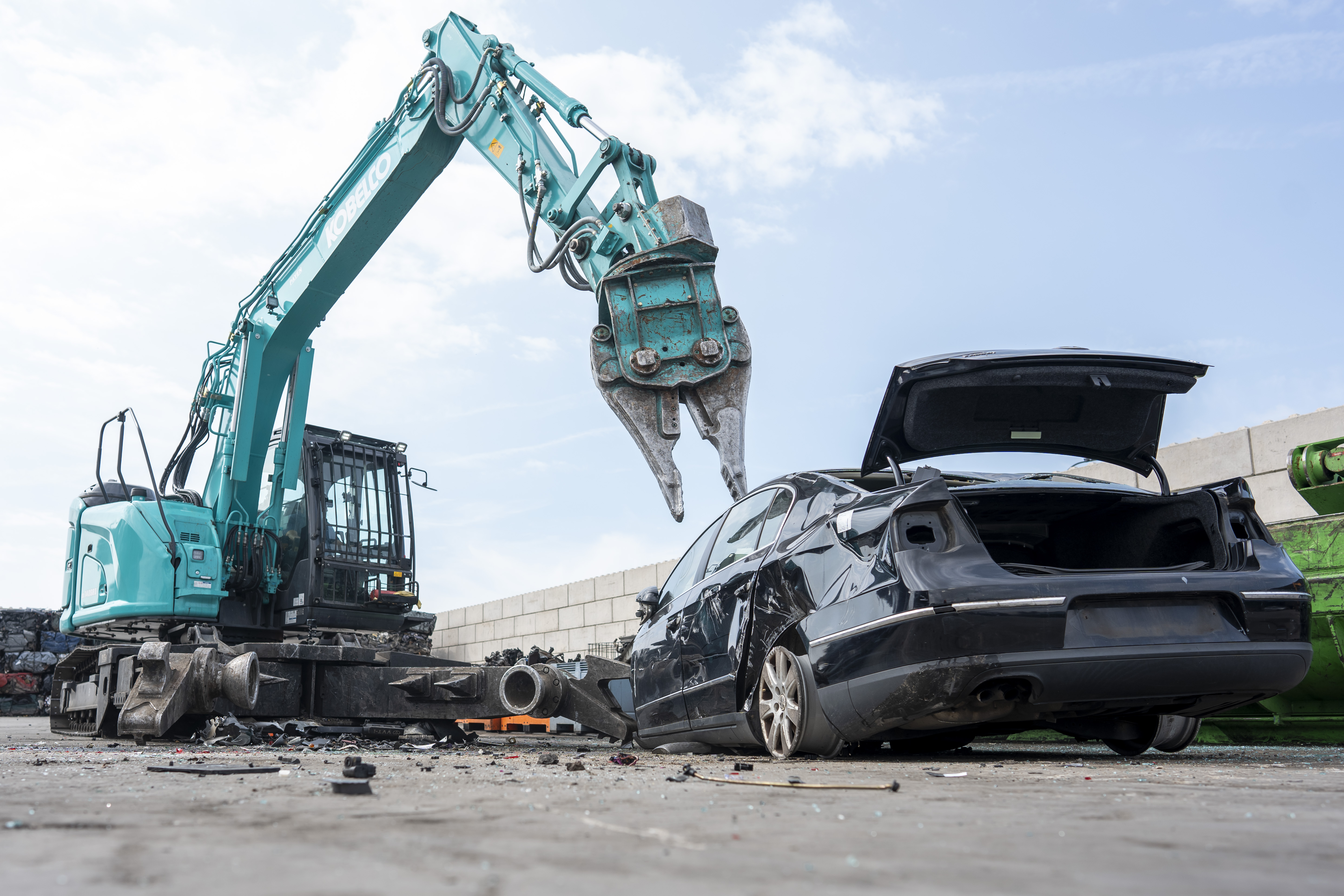

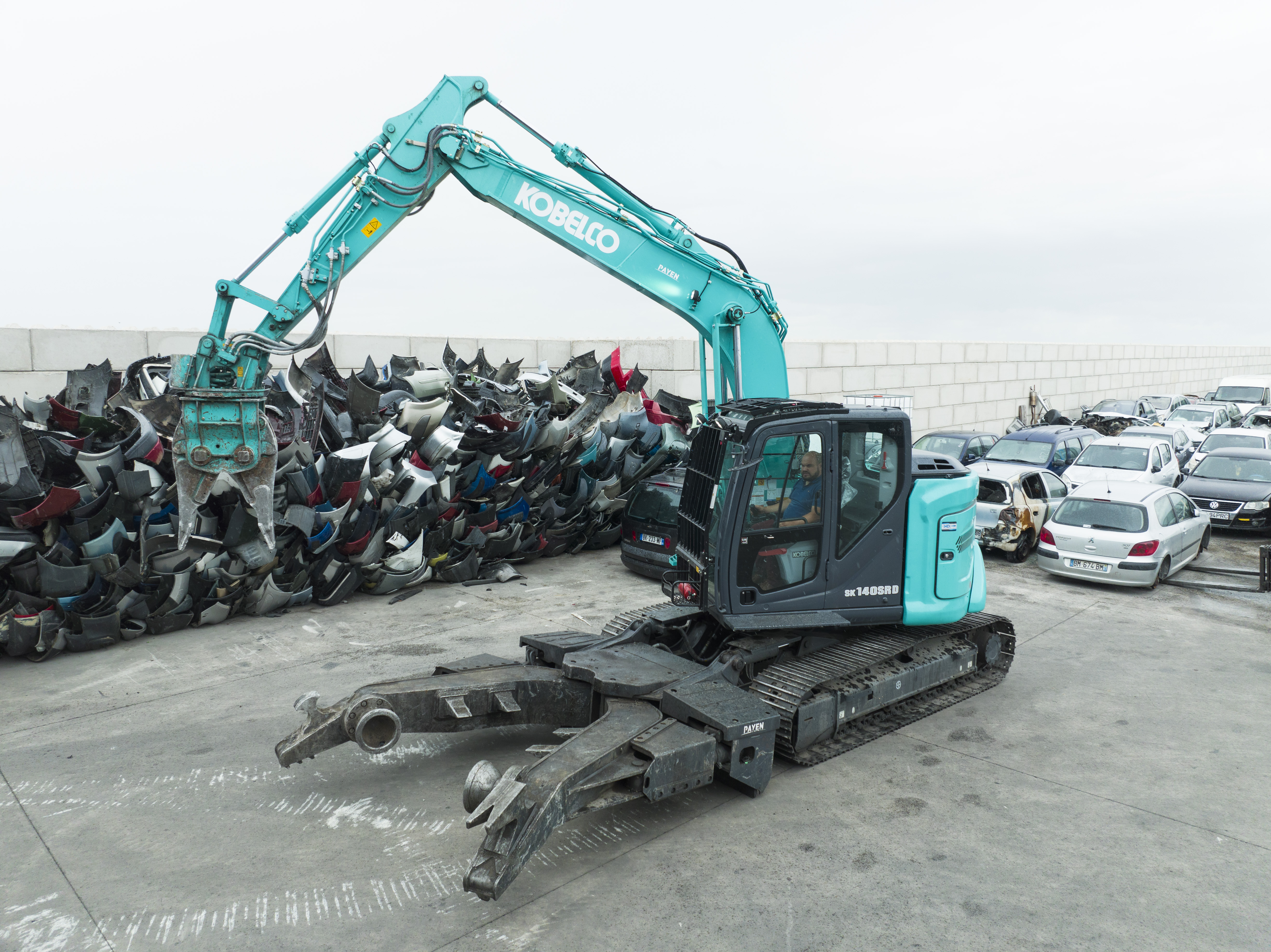

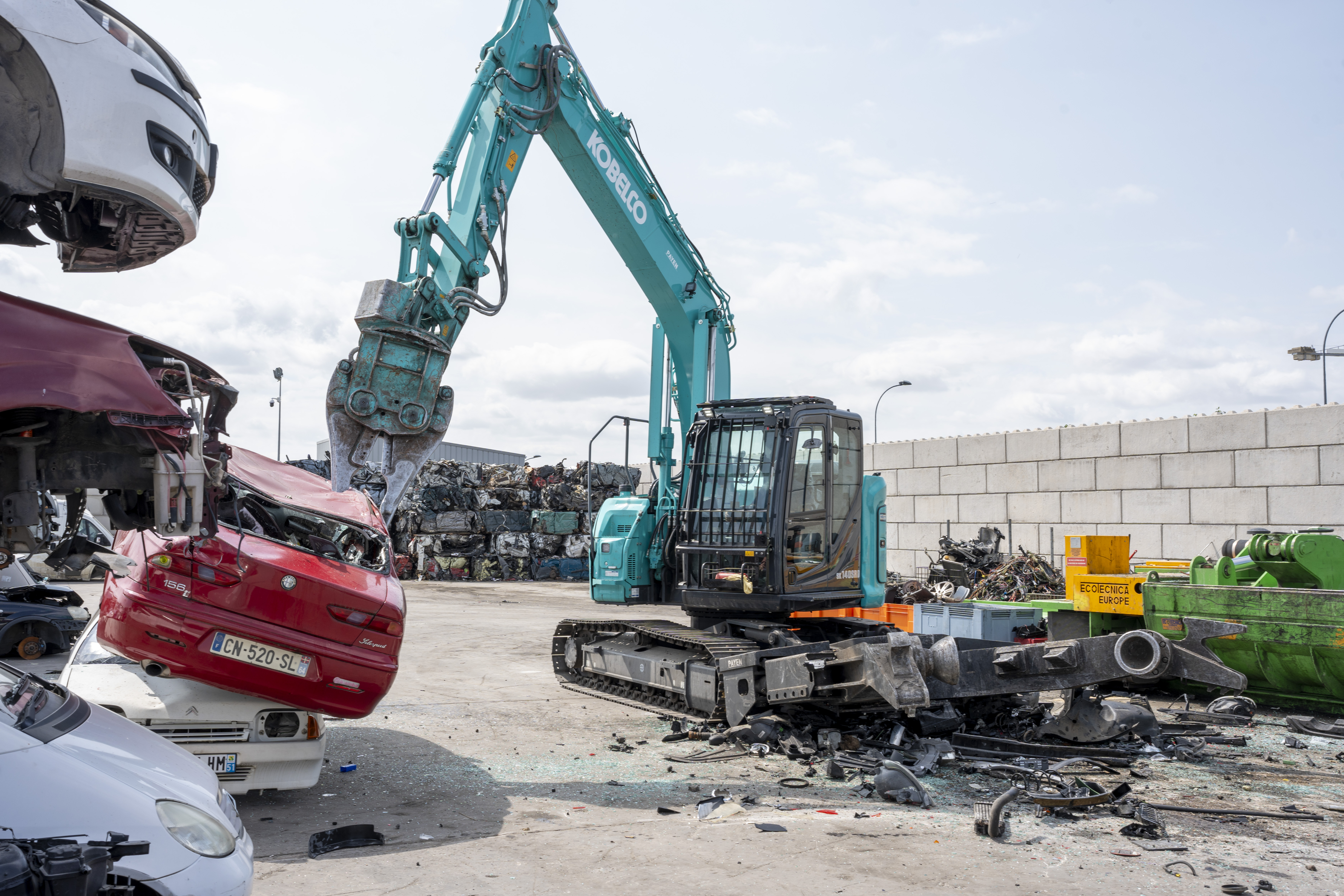

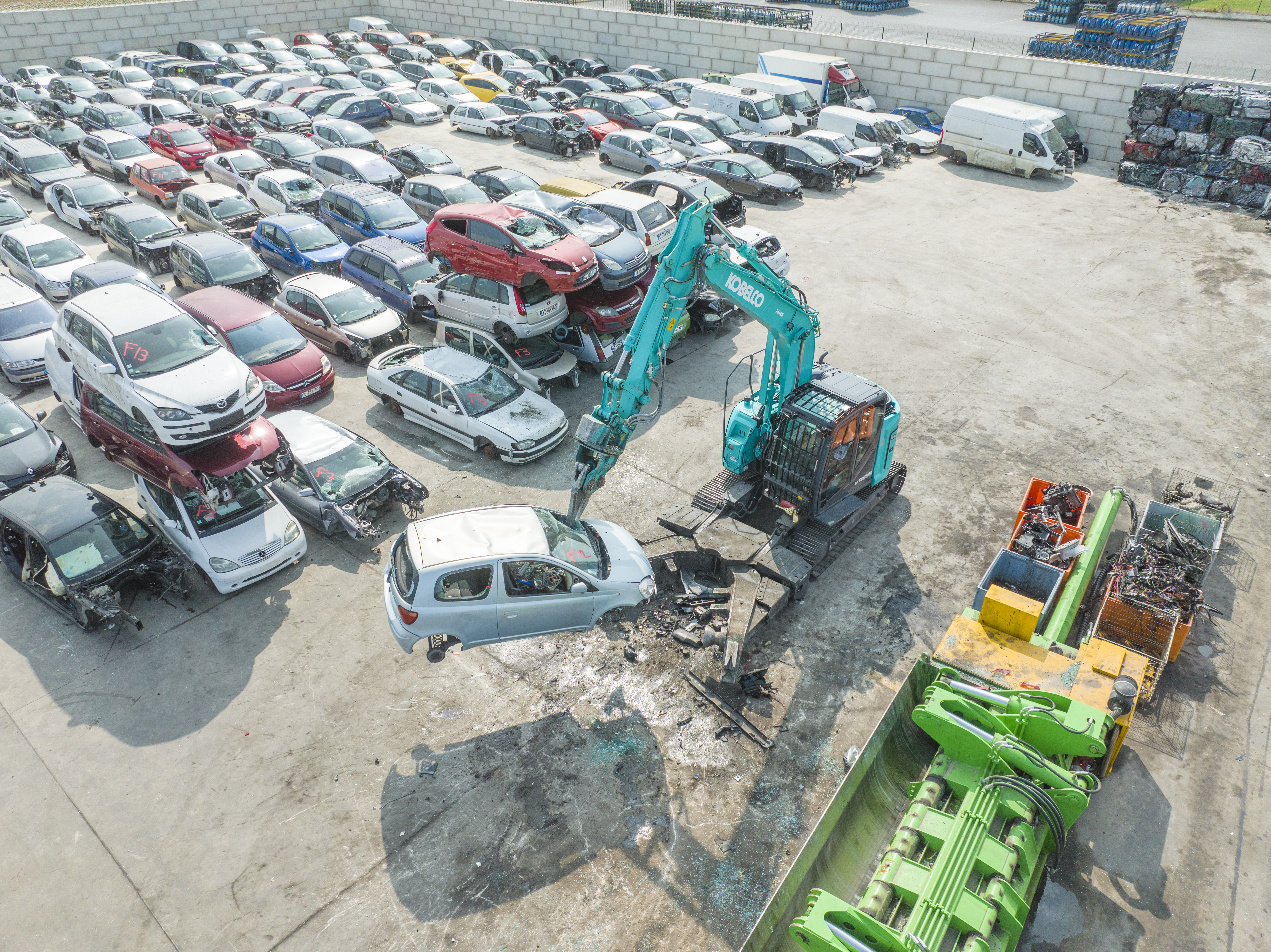

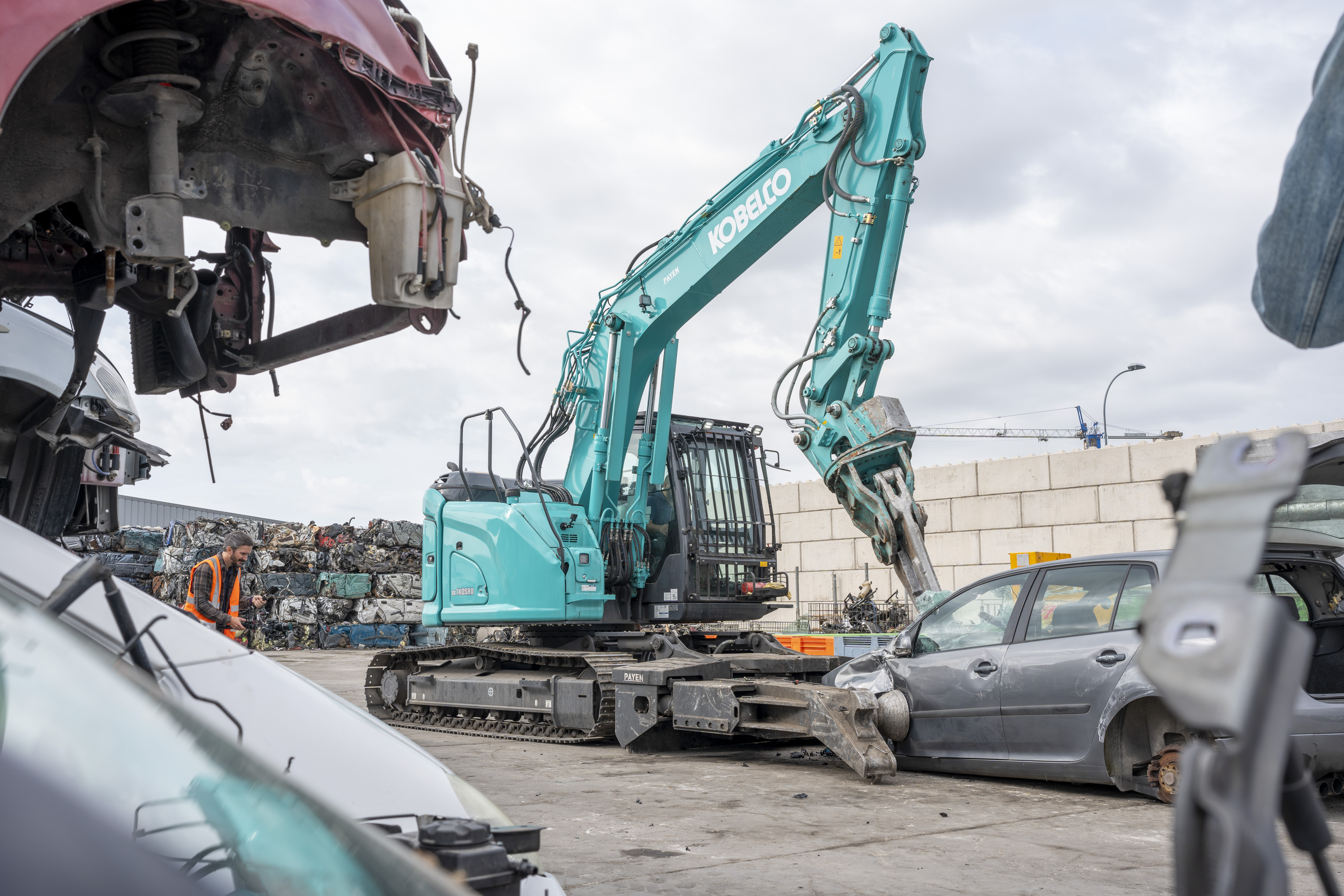

Demolition and Recycling

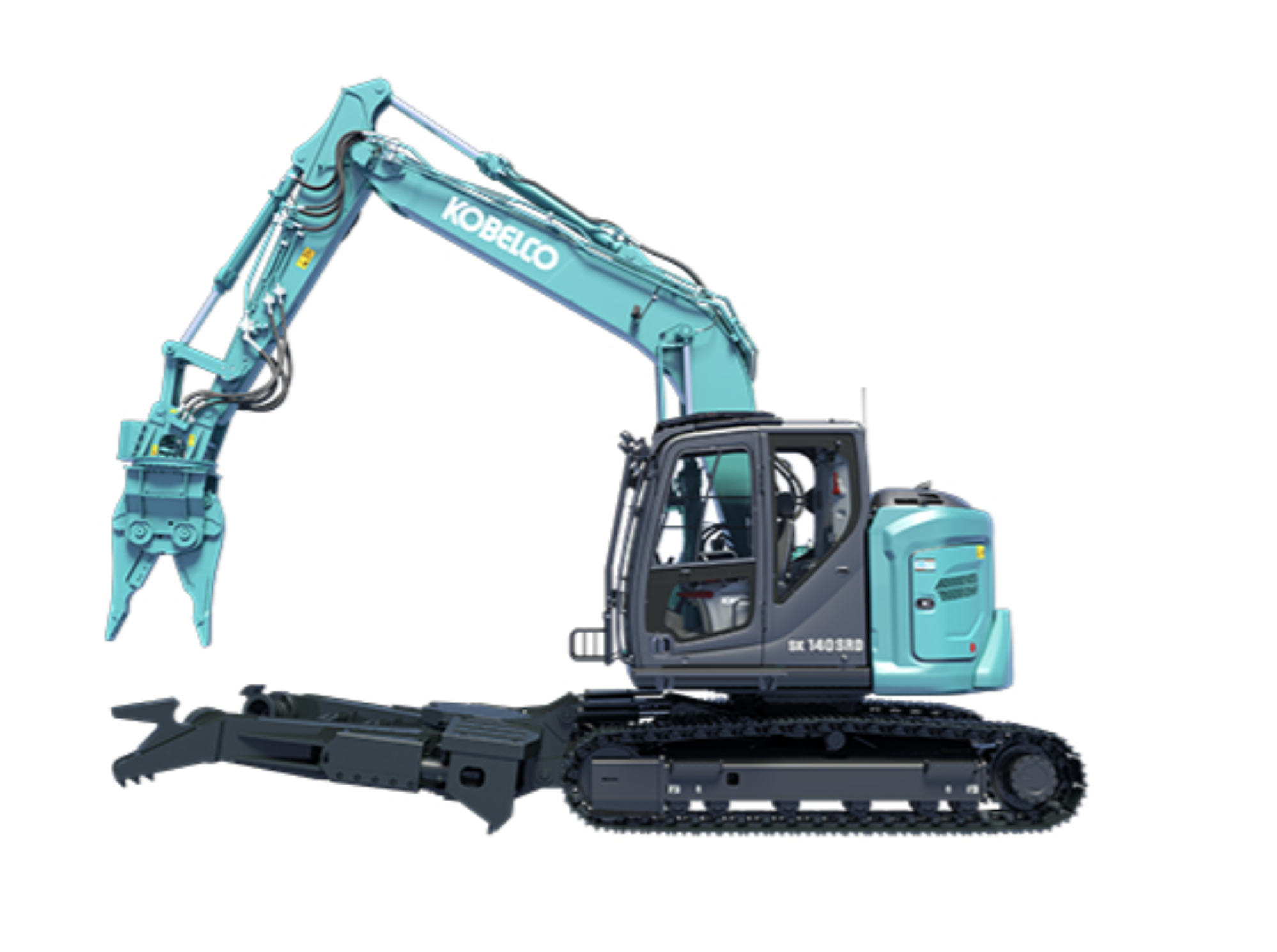

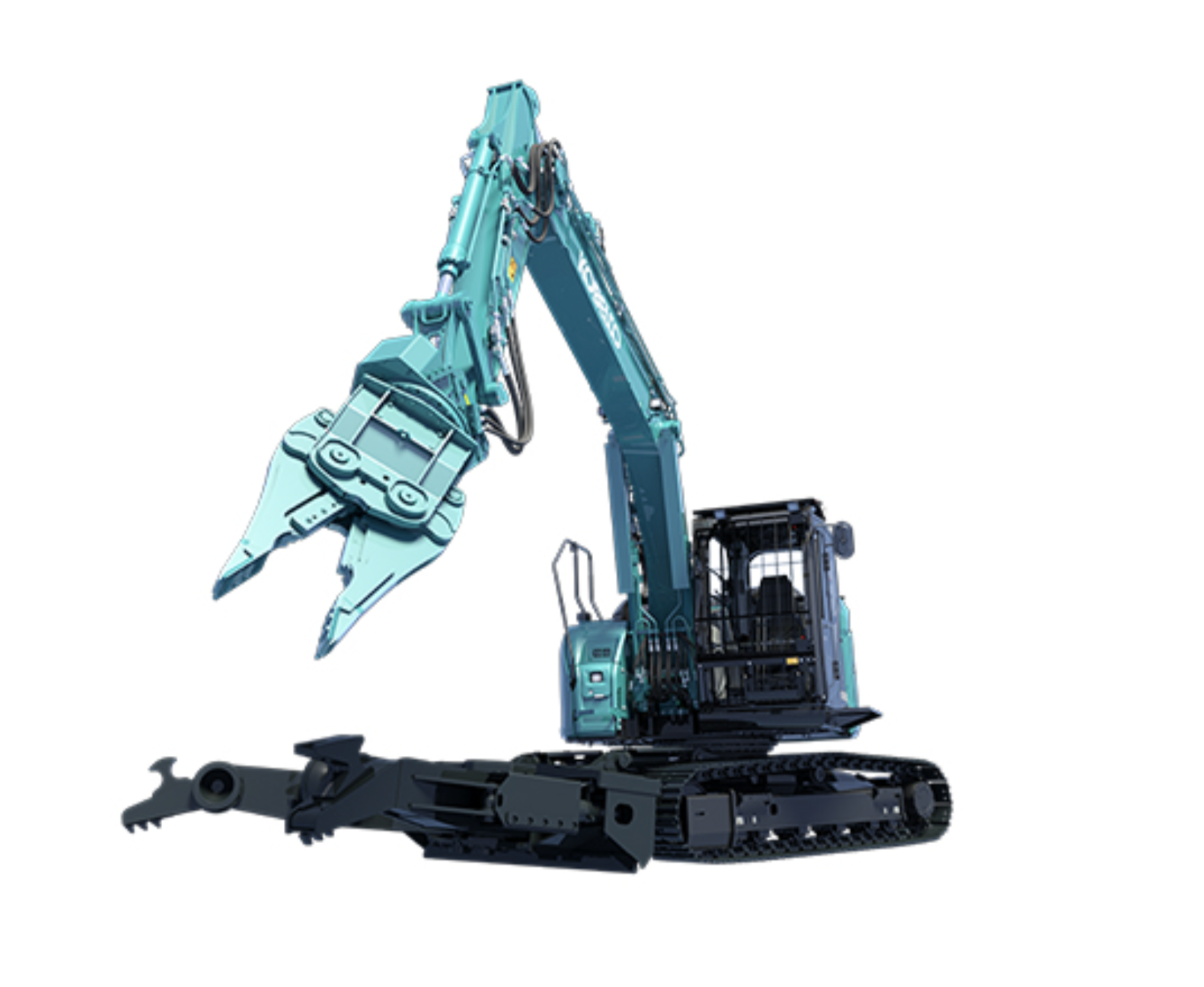

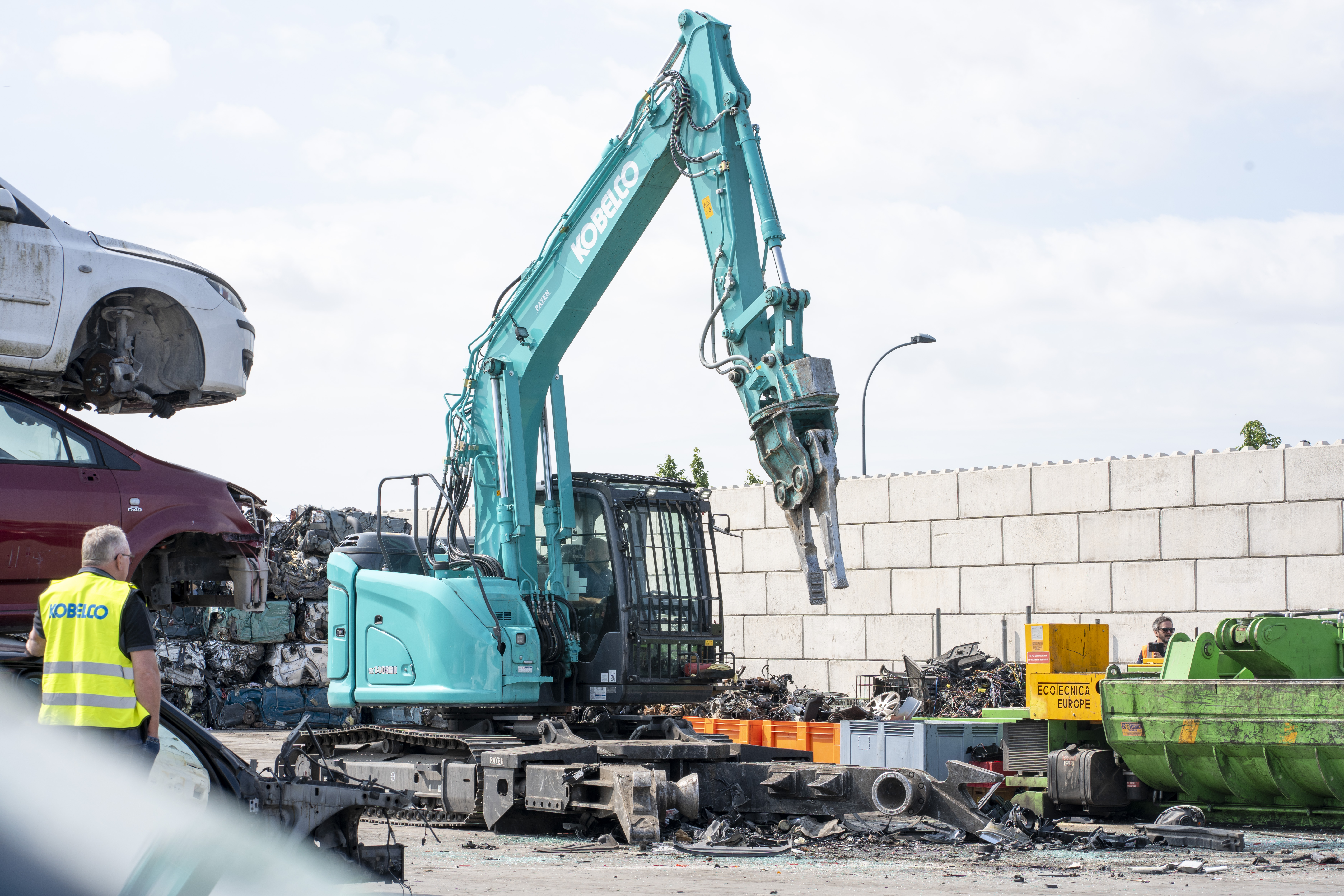

The SK140SRD-7 is engineered for precision, power, and durability in material dismantling and recycling applications. Featuring advanced safety systems, efficient hydraulics, and robust handling performance, it delivers exceptional productivity and control in demanding work environments.

Industry Recycling
Operating weight 18 - 30 t
Power 78.5 kW / 2,000 min-1
SPECIFICATIONS

Key specifications for SK140SRD-7

Description
Telematics Available Yes
Rear View Camera Yes
Number Of Dipper Options 1
Cab Riser No
Engine
Engine Manufacturer Isuzu
Engine Model 4JJ1XDDV A01
Cylinders 4
Aspiration Turbo
Exhaust System DOC-DPF-SCR
Cooling Water
Displacement 2.999 L
Rated Speed 2000 rpm
Net Rating Standard ISO 9249
Net Output 71.3 kW
Gross Rating Standard ISO 14396
Gross Output 78.5 kW
Torque 375 Nm
Driveline
Variable Undercarriage Available No
Width Over Tracks 2490 mm
Shoe Type Triple grouser
Shoe Width 500 mm
Dimensions
Demolition Boom 7440 mm
Over Demolition Boom 2830 mm
Overall Width 2710 mm
Max Machine Width 2710 mm
Tailswing Radius 1600 mm
Track Length On Ground 2870 mm
Undercarriage Length 3580 mm
Min Cab Height 2890 mm
Max Cab Height 2890 mm
Counterweight Clearance 905 mm
Ground Clearance 240 mm
Superstructure Width 2480 mm
Max Reach 9080 mm
Ground Level Reach 4150 mm
Max Height 9960 mm
Min Dump Height 6210 mm
Capacities
Fuel Tank 186 L
DEF Tank 26 L
Hydraulic Tank 89.9 L
Hydraulic System 192 L
Engine Oil 17 L
Swing Oil 1.65 L
Cooling System 17 L
Performance
Slew Speed 11 rpm
Slew Torque 40.4 kNm
Drawbar Pull 138 kN
Travel Speed Low 3.4 kph
Travel Speed High 5.6 kph
Hydraulic System
Pump Type Variable axial piston
Main Pumps 2
Max Flow Per Pump 130 L/min
Main Pumps Max Flow 260 L/min
Hydraulic System Max Pressure 343 bar
Attachment Pressure 245 bar
Weights
Operating Weight 20500 kg
Ground Bearing Pressure 64 kPa
Attachment Type Nibbler
Attachment Weight 970 kg
For more detailed specifications and lifting capacities, please download the brochure
