Mini Excavators

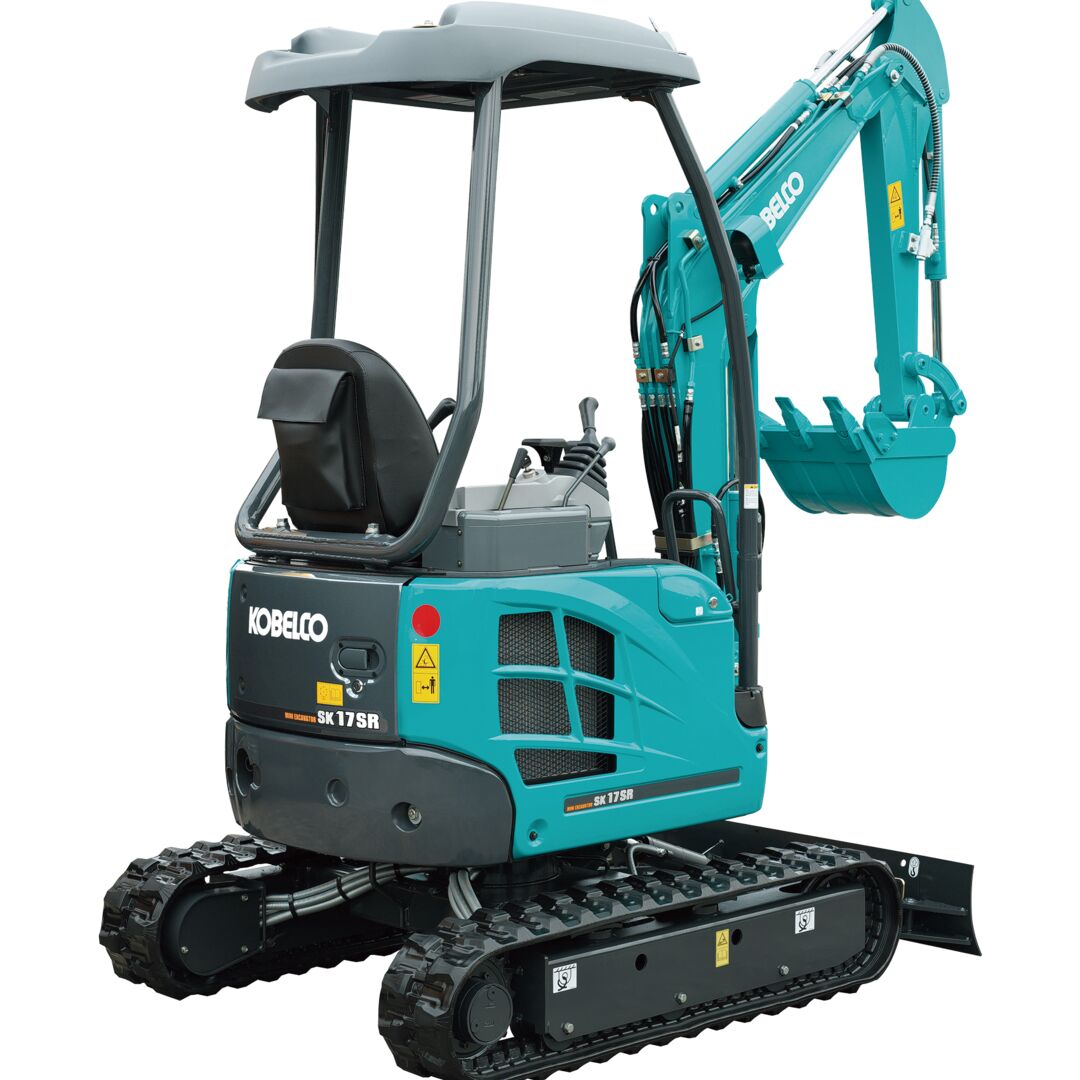

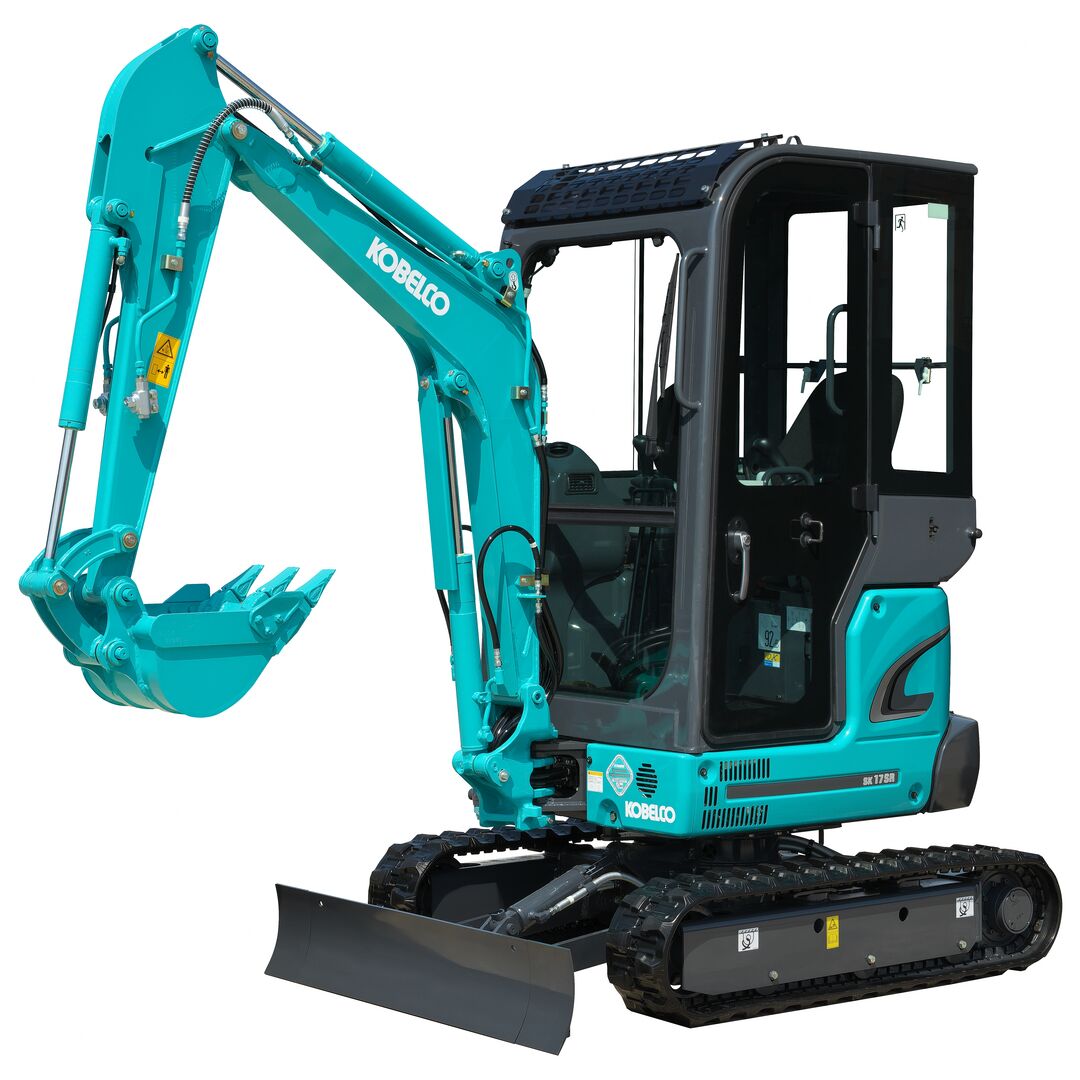

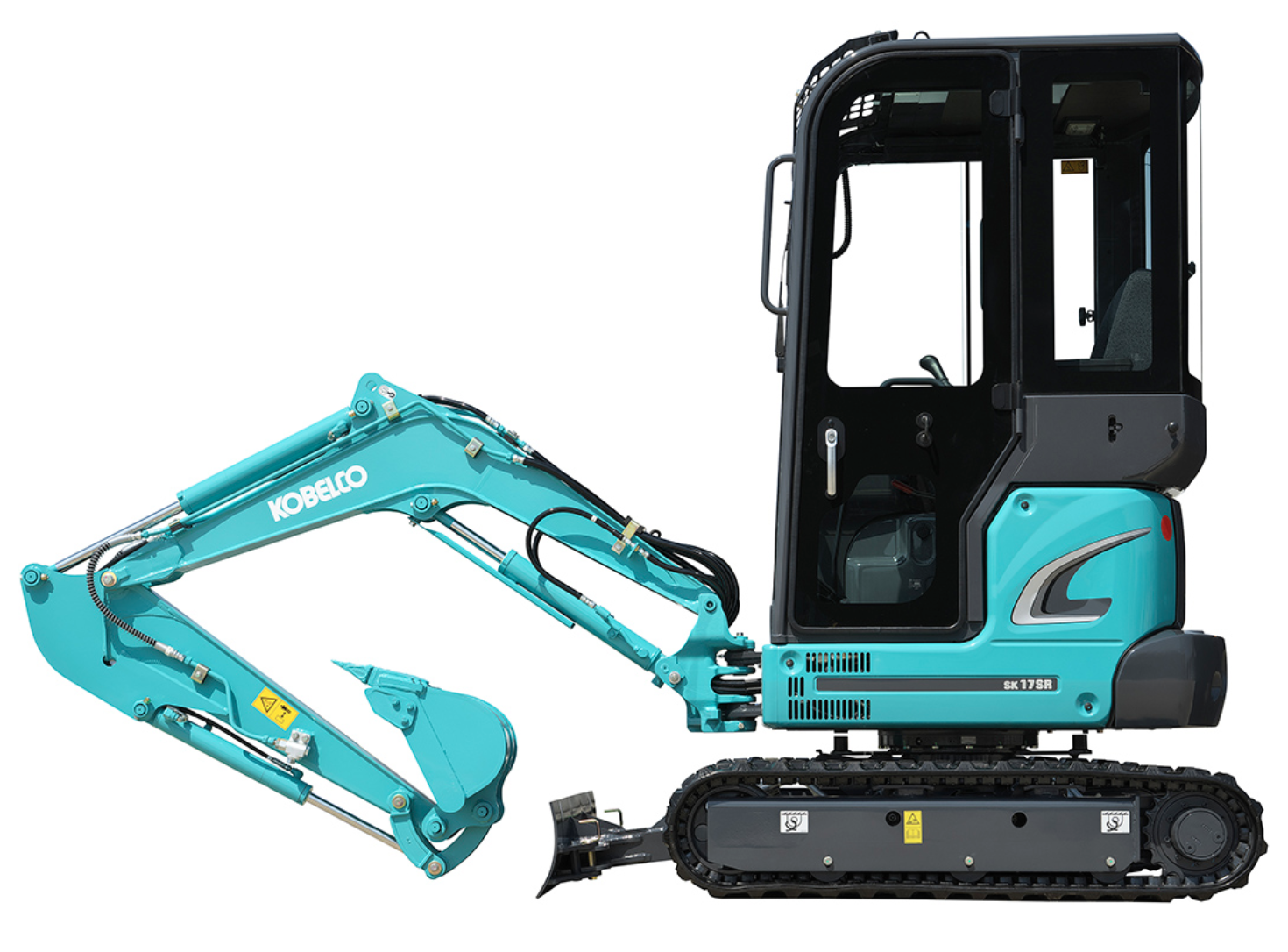

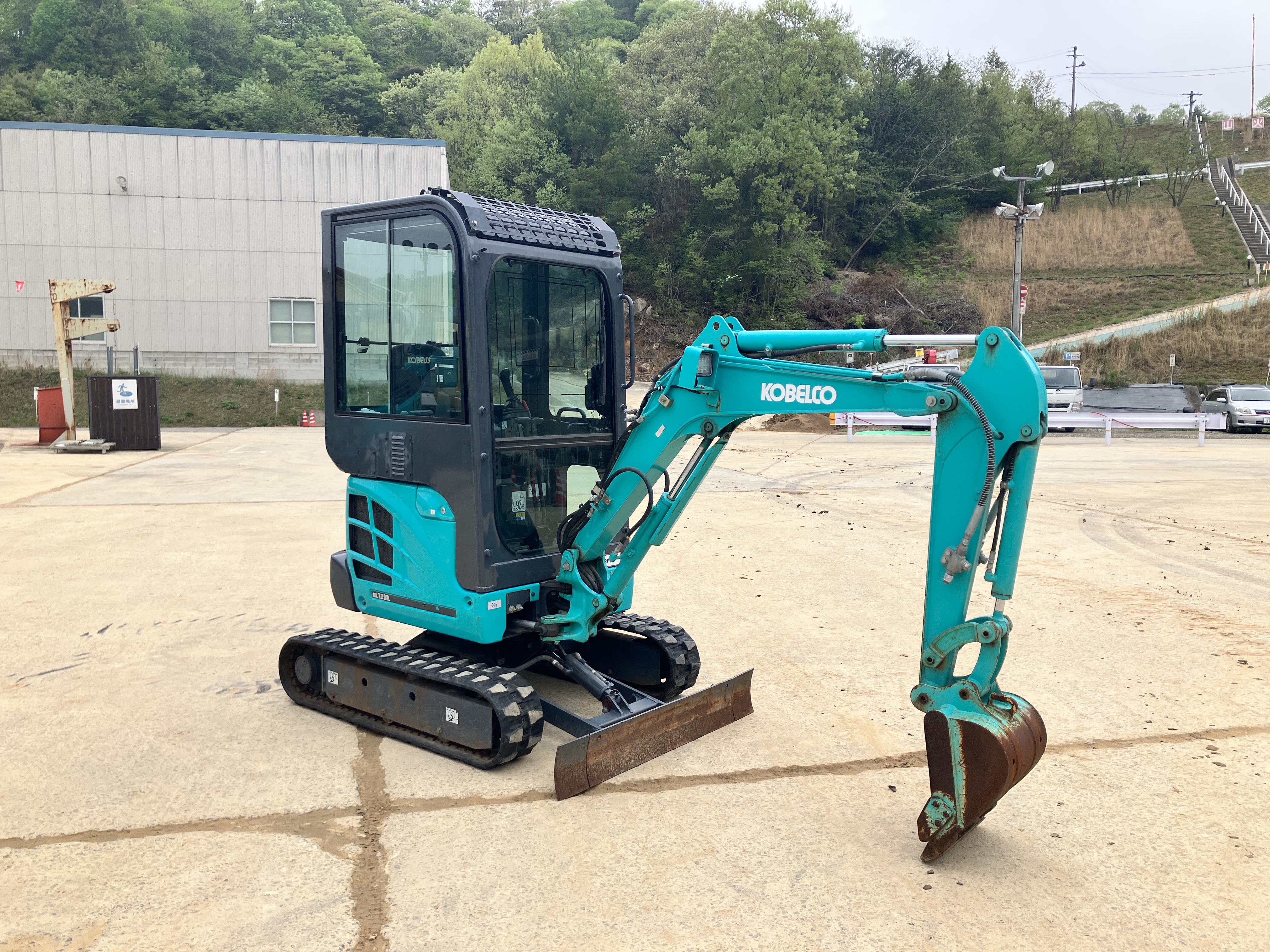

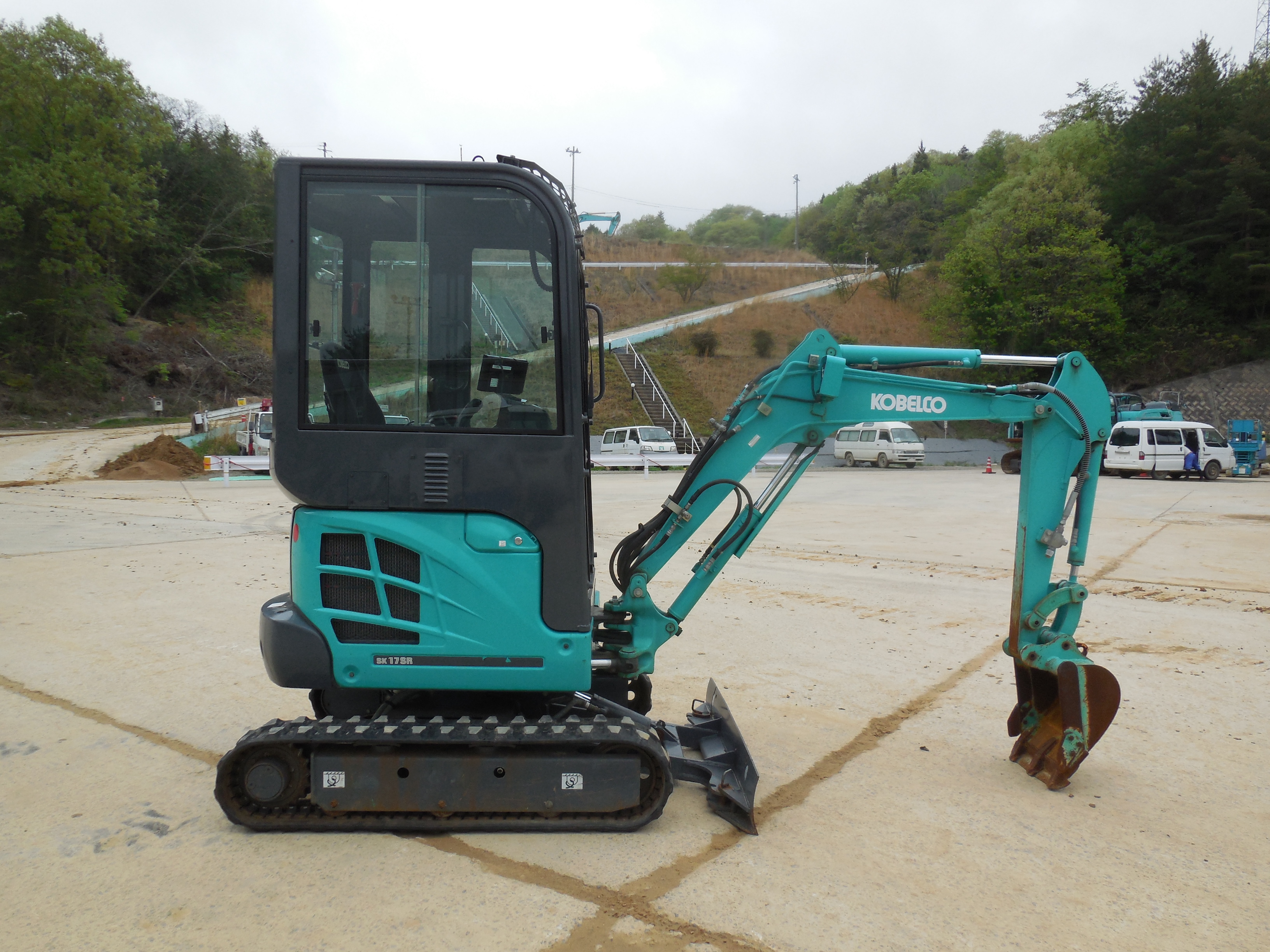

The KOBELCO SK17SR‑3E is a compact mini excavator, designed for efficient work in areas where space is restricted, such as residential and urban job sites. Combining short‑radius agility with a wide working range, it delivers powerful digging performance, excellent manoeuvrability and outstanding stability.

Industry Construction Landscaping
Operating weight 0 - 6 t
Power 10.4 kW / 2,200 min-1
SPECIFICATIONS

Key specifications for SK17SR-3E

Description
Rear View Camera No
Number Of Mono Booms 1
Number Of Dipper Options 2
Min Dipper Length 980 mm
Max Dipper Length 1200 mm
Dipper Length 980 mm
Operating Weight 1780 - 1910 kg
Telematics
Available No
Driveline
Manufacturer Yanmar
Model 3TNV 70-SYB
Aspiration Naturally Aspirated
Cooling Water
Cylinders 3
Displacement 0.854 L
Rated Speed 2200 rpm
Net Rating Standard ISO 9249
Net Output 9.9 kW
Gross Rating Standard ISO 14396
Gross Output 10.4 kW
Torque 47.5 Nm
Torque Rated Speed 1600 rpm
Track Rollers Per Side 3
Shoe Width 230 mm
Shoe Type Rubber
Dimensions
Mono Boom 3470 - 3490 mm
Without Boom 2350 mm
Max Height 2350 mm
Superstructure 990 mm
Undercarriage 990 mm
Overall Width 1320 mm
Track Length On Ground 1210 mm
Undercarriage Length 1560 mm
Tailswing Radius 660 - 755 mm
Tail Length 640 - 660 mm
Zero Tailswing No
Cab 2350 mm
Canopy 2350 mm
Counterweight Clearance 445 mm
Capacity Rating Standard ISO 7451
Reference Capacity 0.044
Available Standard
Type Straight
Height 250 mm
Width 990 mm
Raised Height 280 mm
Dig Depth 270 mm
Track Gauge 990 mm
Variable Undercarriage Available Yes
Track Width - Retracted 990 mm
Track Width - Extended 1320 mm
Digging Reach 3890 mm
Ground Level Reach 3790 mm
Dig Height 3240 - 3680 mm
Dump Height 2280 - 2650 mm
Vertical Wall 1660 mm
Dig Depth 2150 mm
Front Slew Radius 1560 - 1890 mm
Front Slew Radius - Swing Boom 1260 - 1600 mm
Boom Swing - Left 65 °
Boom Swing - Right 55 °
Left Digging Offset 540 mm
Right Digging Offset 530 mm
Rating Standard ISO 10567
Reach At Ground Level 3.23 m
Capacities
Fuel Tank 22 L
Hydraulic Tank 9 L
Hydraulic System 23 L
Performance
Ground Bearing Pressure 28.5 - 30.7 kPa
Slew Speed 8.6 rpm
Travel Speed - Low 2 kph
Travel Speed - High 4 kph
Tractive Force 19.8 kN
Boost Pressure Used For Breakout No
Dipper Tearout 8.7 kN
Bucket Breakout 15.2 kN
Gradeability 30 °
Gradeability 58 %
Lift Quoted With Bucket No
Lift Quoted With Quick-Hitch No
Lift Quoted With Dozer-Up/Down Up
End Lift - 2.0m 380 - 410 kg
Side Lift - 2.0m 380 - 400 kg
End Lift - 3.0m 210 - 220 kg
Side Lift - 3.0m 210 - 220 kg
End Lift - Max 190 - 200 kg
Side Lift - Max 190 - 200 kg
Main Pumps 1
Main Pump - Total 32.6 L/min
Boom 216 bar
Dipper 216 bar
Attachment 216 bar
Weights
Mono Boom 1780 - 1910 kg
For more detailed specifications and lifting capacities, please download the brochure
Download brochure
