SR Series

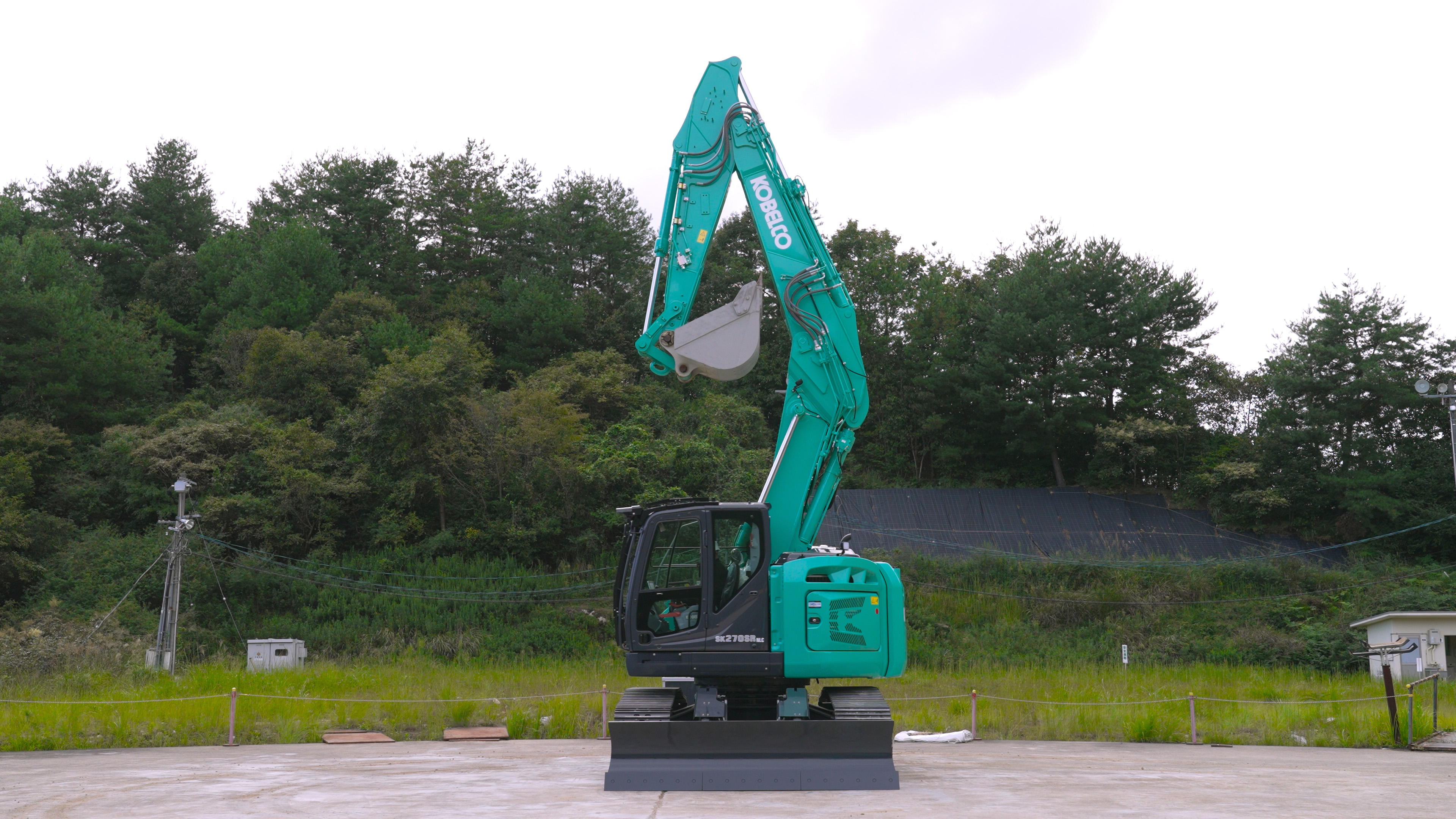

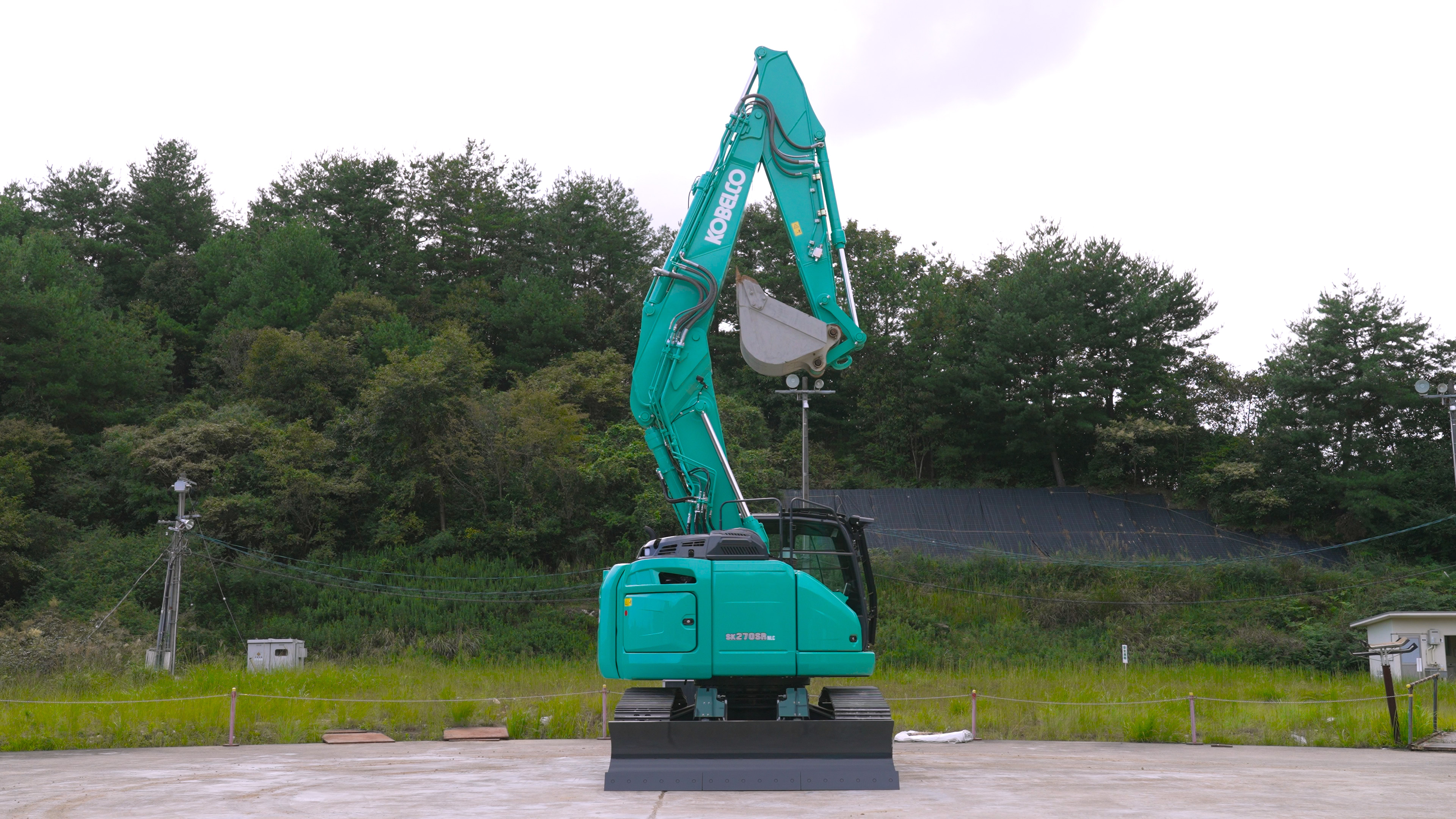

The SK270SRLC-7 merges robust power with a short-radius profile, creating a versatile excavator built for demanding job sites. With a reinforced construction, impressive reach and compact swing dimensions, this model offers strength, precision, and maneuverability where space is tight.

Industry Construction
Operating weight 18 - 30 t
Power 127 kW / 2,000 min-1
SPECIFICATIONS

Key specifications for SK270SRLC-7

Description
Number Of Boom Options 2
Rear View Camera Yes
Number Of Mono Booms 1
Boom Size 5.6 m
Number Of Dipper Options 1
Min Dipper Length 2940 mm
Number Of Articulated Booms 1
Number Of Dipper Options 1
Min Dipper Length 2940 mm
Dipper Length 2940 mm
Operating Weight 25700 - 26800 kg
Counterweight 5910 kg
Telematics
Available Yes
Driveline
Manufacturer Yanmar
Model 4TNV107FTT
Aspiration Turbo
Charged Air Cooling Intercooler
DOC Yes
SCR Yes
DPF Yes
Cooling Water
Cylinders 4
Displacement 4.567 L
Rated Speed 2000 rpm
Net Rating Standard ISO 9249
Net Output 122 kW
Gross Rating Standard ISO 14396
Gross Output 127 kW
Torque 805 Nm
Torque Rated Speed 1500 rpm
Carrier Rollers Per Side 2
Track Rollers Per Side 9
Shoe Width 600 mm
Shoe Type Triple grouser
Track Shoes Per Side 51
Dimensions
Mono Boom 8970 mm
Articulated Boom 9510 mm
Over Boom 3060 mm
Without Boom 3180 mm
Max Height 3180 mm
Over Articulated Boom 3020 mm
Superstructure 2990 mm
Undercarriage 3190 mm
Overall Width 3190 mm
Track Length On Ground 3850 mm
Undercarriage Length 4640 mm
Tailswing Radius 1720 mm
Tail Length 1720 mm
Zero Tailswing No
Cab 3180 mm
Counterweight Clearance 1050 mm
Ground Clearance 440 mm
Capacity Rating Standard ISO
Reference Capacity 0.8
Min Capacity 0.51
Max Capacity 0.93
Reference Weight 650 kg
Min Weight 520 kg
Max Weight 710 kg
Width Over Tracks 3190 mm
Track Gauge 2590 mm
Variable Undercarriage Available No
Digging Reach 9850 mm
Ground Level Reach 9680 mm
Dig Height 11210 mm
Dump Height 8330 mm
Vertical Wall 6060 mm
Dig Depth - 2.44m (8ft) Flat Bottom 6470 mm
Dig Depth 6650 mm
Front Slew Radius 1960 mm
Digging Reach 10360 mm
Ground Level Reach 10200 mm
Dig Height 11950 mm
Dump Height 9070 mm
Vertical Wall 5930 mm
Dig Depth - 2.44m (8ft) Flat Bottom 6890 mm
Dig Depth 6990 mm
Front Slew Radius 1490 mm
Rating Standard ISO 10567
Reach At Ground Level 8.19 m
Reach At Ground Level 8.72 m
Capacities
Fuel Tank 330 L
DEF Tank 33.9 L
Engine Oil 20 L
Cooling System 23 L
Hydraulic Tank 114 L
Hydraulic System 230 L
Performance
Ground Bearing Pressure 51 - 53 kPa
Slew Speed 10.2 rpm
Slew Torque 87.7 kNm
Travel Speed - Low 3.2 kph
Travel Speed - High 5.2 kph
Tractive Force 244 kN
Boost Pressure Used For Breakout Yes
Dipper Tearout 112 kN
Bucket Breakout 157 kN
Gradeability 35 °
Gradeability 70 %
Internal Noise - LpA 71 dB(A)
External Noise - LwA 99 dB(A)
Lift Quoted With Bucket No
Lift Quoted With Quick-Hitch No
End Lift - 3.0m 6640 kg
Side Lift - 3.0m 6640 kg
End Lift - 4.5m 11020 kg
Side Lift - 4.5m 7220 kg
End Lift - 6.0m 7810 kg
Side Lift - 6.0m 4780 kg
End Lift - 7.5m 5580 kg
Side Lift - 7.5m 3490 kg
End Lift - Max 4600 kg
Side Lift - Max 3090 kg
End Lift - 3.0m 11500 kg
Side Lift - 3.0m 11500 kg
End Lift - 4.5m 9850 kg
Side Lift - 4.5m 6560 kg
End Lift - 6.0m 7450 kg
Side Lift - 6.0m 4370 kg
End Lift - 7.5m 5560 kg
Side Lift - 7.5m 3410 kg
End Lift - Max 4260 kg
Side Lift - Max 2560 kg
Main Pumps 2
Main Pump - Total 440 L/min
Boom 343 bar
Dipper 343 bar
Attachment 343 bar
Boost 378 bar
Weights
Mono Boom 25700 - 26800 kg
For more detailed specifications and lifting capacities, please download the brochure
