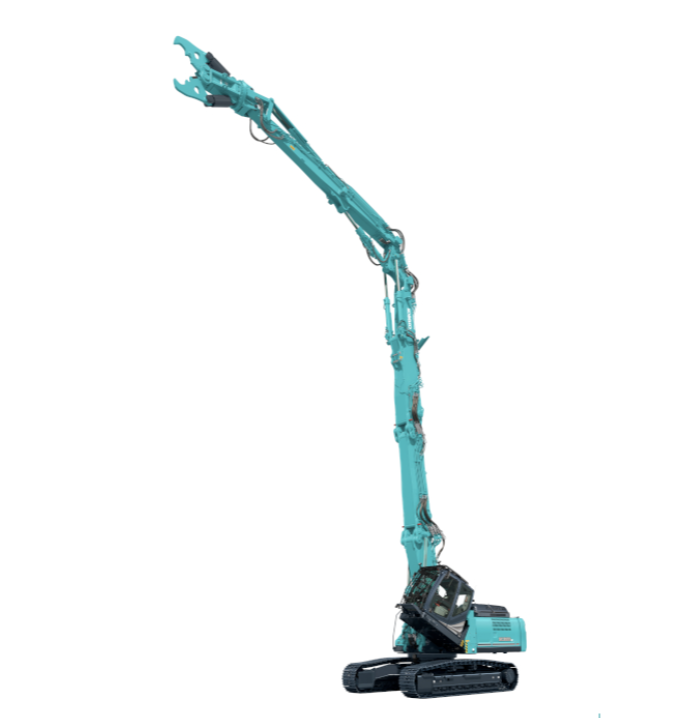

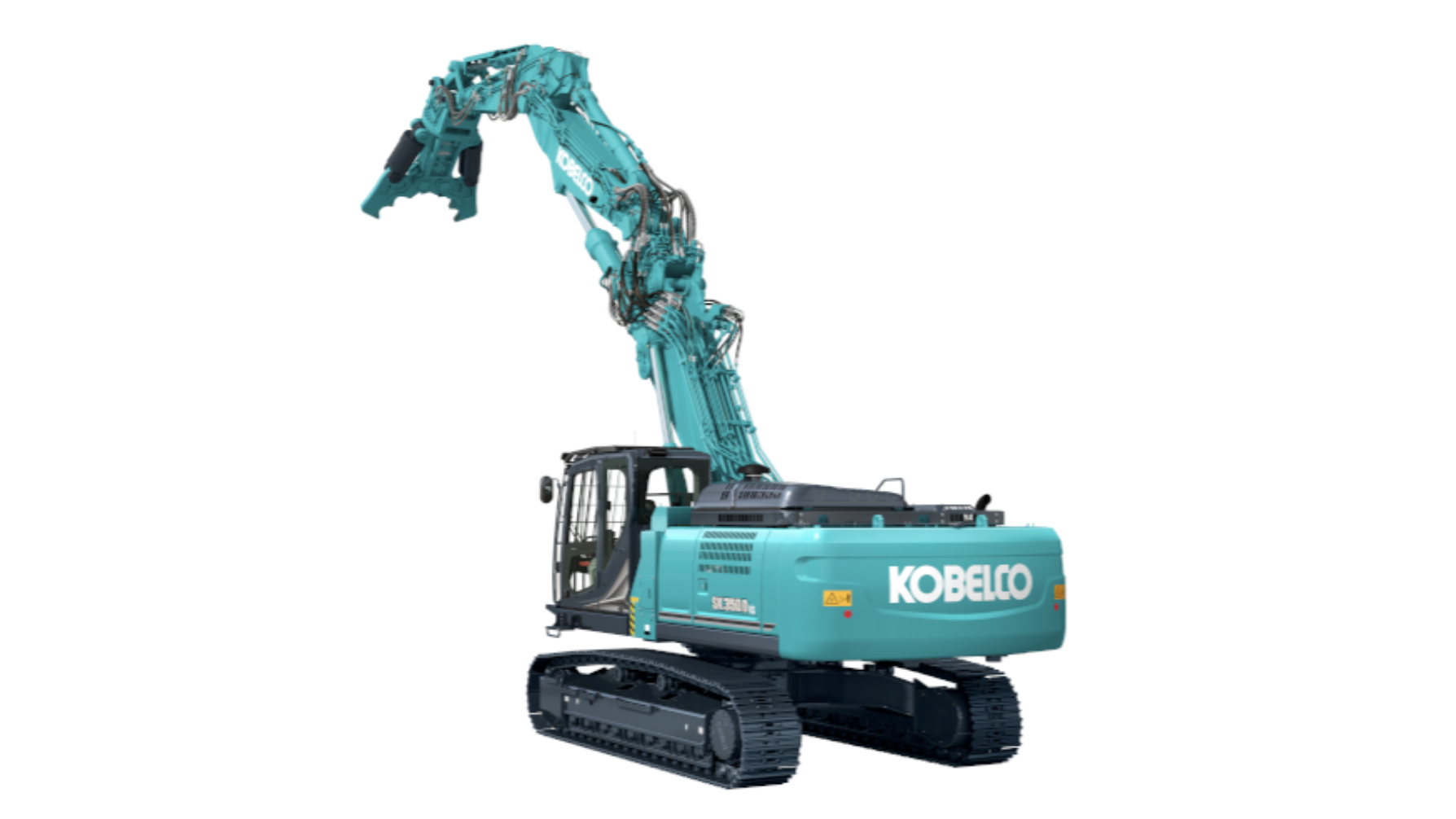

SK350DLC-11E
SK350DLC-11E

SK350DLC-11E

Demolition and Recycling

The SK350DLC-11E is a highly efficient, purpose-built demolition excavator designed for precision, stability, and maximum productivity on demanding job sites. Engineered with advanced hydraulics, robust structural strength, and exceptional operator visibility, it delivers reliable performance for medium- to high-reach dismantling projects. With demolition-specific features and a focus on safety and control, the SK350DLC-11E is the ideal choice for contractors seeking a powerful, versatile, and durable machine for professional demolition work.

Industry Demolition
Operating weight 30 - 50 t
Power 210 kW / 1,900 min-1
SPECIFICATIONS

Key specifications for SK350DLC-11E

Description
Telematics Available Yes
Rear View Camera Yes
Cab Tilt 30 °
Dipper Type Straight demolition
Number Of Booms 2
Boom Size 6.1 m
Cab Riser Hydraulic tilt back
Engine
Engine Manufacturer Isuzu
Engine Model 6HK1
Cylinders 6
Aspiration Turbo intercooler
Exhaust System DOC-DPF-SCR
Cooling Water
Displacement 7.79 L
Rated Speed 1900 rpm
Gross Rating Standard ISO 14396
Gross Output 210 kW
Torque 1080 Nm
Driveline
Number Of Speeds 2
Variable Undercarriage Available No
Width Over Tracks 3190 mm
Shoe Type Triple grouser
Shoe Width 600 mm
Dimensions
Triple Articulated 12310 mm
Demolition Boom 13350 mm
Over Triple Articulated Boom 2630 mm
Over Demolition Boom 3290 mm
Overall Width 3190 mm
Max Machine Width 3190 mm
Tailswing Radius 3600 mm
Tail Length - Over End 1120 mm
Undercarriage Length 4960 mm
Ground Clearance 485 mm
Superstructure Width 2980 mm
Max Height 20130 mm
Max Reach 13060 mm
Ground Level Reach 11400 mm
Max Height 13560 mm
Max Depth 6320 mm
Capacities
Fuel Tank 503 L
DEF Tank 83 L
Hydraulic Tank 245 L
Hydraulic System 410 L
Engine Oil 48.6 L
Final Drive Oil 16 L
Swing Oil 7.4 L
Cooling System 41.4 L
Performance
Slew Speed 5.5 - 10 rpm
Slew Torque 119.6 kNm
Drawbar Pull 317 kN
Travel Speed Low 3.3 kph
Travel Speed High 5.6 kph
Reverse Speed Low 3.3 kph
Reverse Speed High 5.6 kph
Hydraulic System
Pump Type Variable axial piston
Main Pumps 2
Max Flow Per Pump 294 L/min
Main Pumps Max Flow 588 L/min
Auxiliary Flow 42.6 L/min
Pilot Pump Flow 21 L/min
Hydraulic System Max Pressure 314 bar
Boost Pressure 343 bar
Travel Pressure 343 bar
Slew Pressure 290 bar
Attachment Pressure 314 bar
Weights
Operating Weight 45300 - 45700 kg
Ground Bearing Pressure 85 - 86 kPa
Triple Articulated Boom Specification Weight 45300 kg
Triple Articulated Boom Ground Pressure 85 kPa
Demolition Boom Specification Weight 45700 kg
Demolition Boom Ground Pressure 86 kPa
Counterweight 9460 kg
Max Tool Weight For Demolition Boom 2600 - 4000 kg
Attachment Type Shear Jaws
Attachment Weight 2600 kg
For more detailed specifications and lifting capacities, please download the brochure
