Conventional Excavators

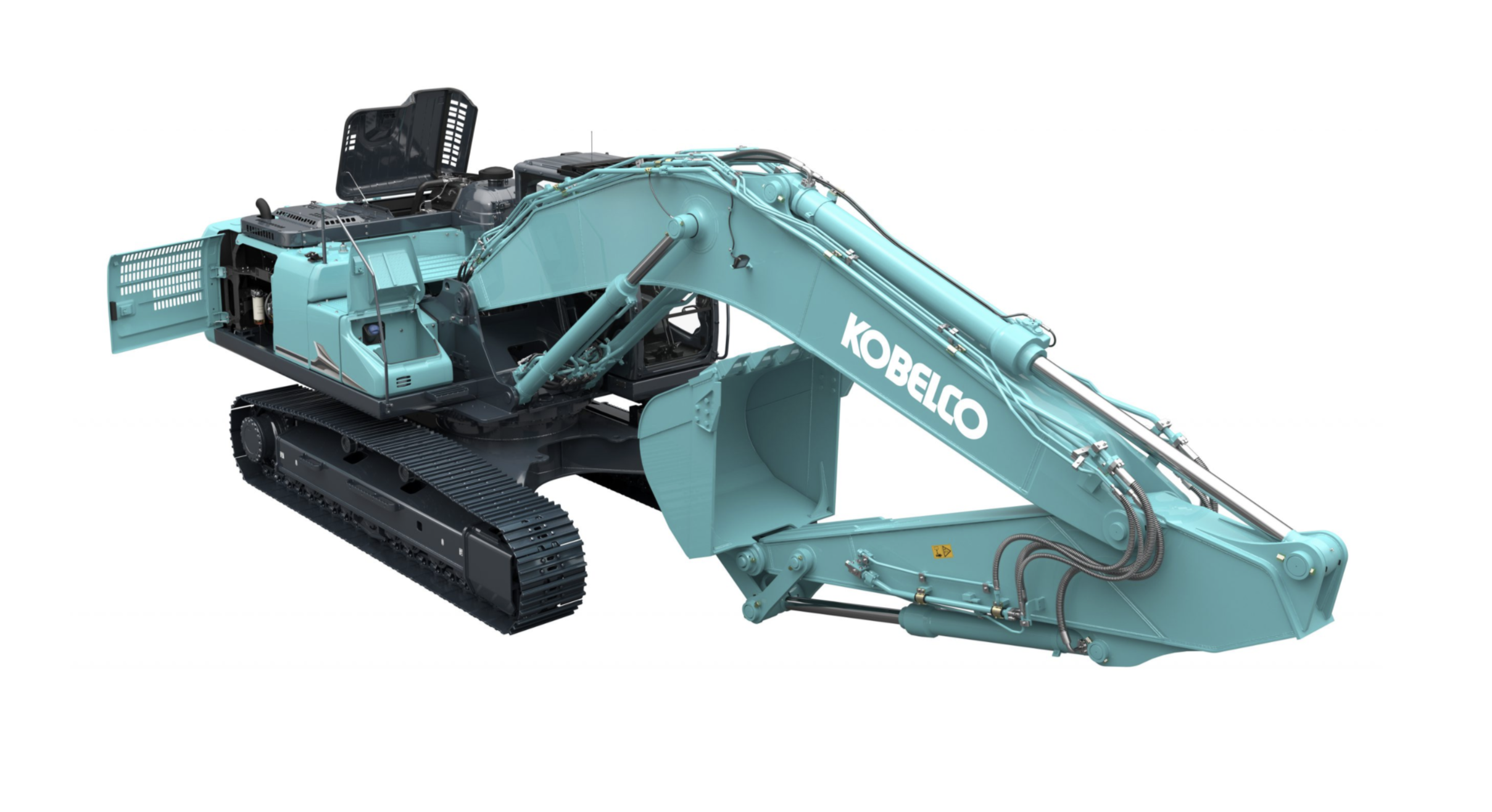

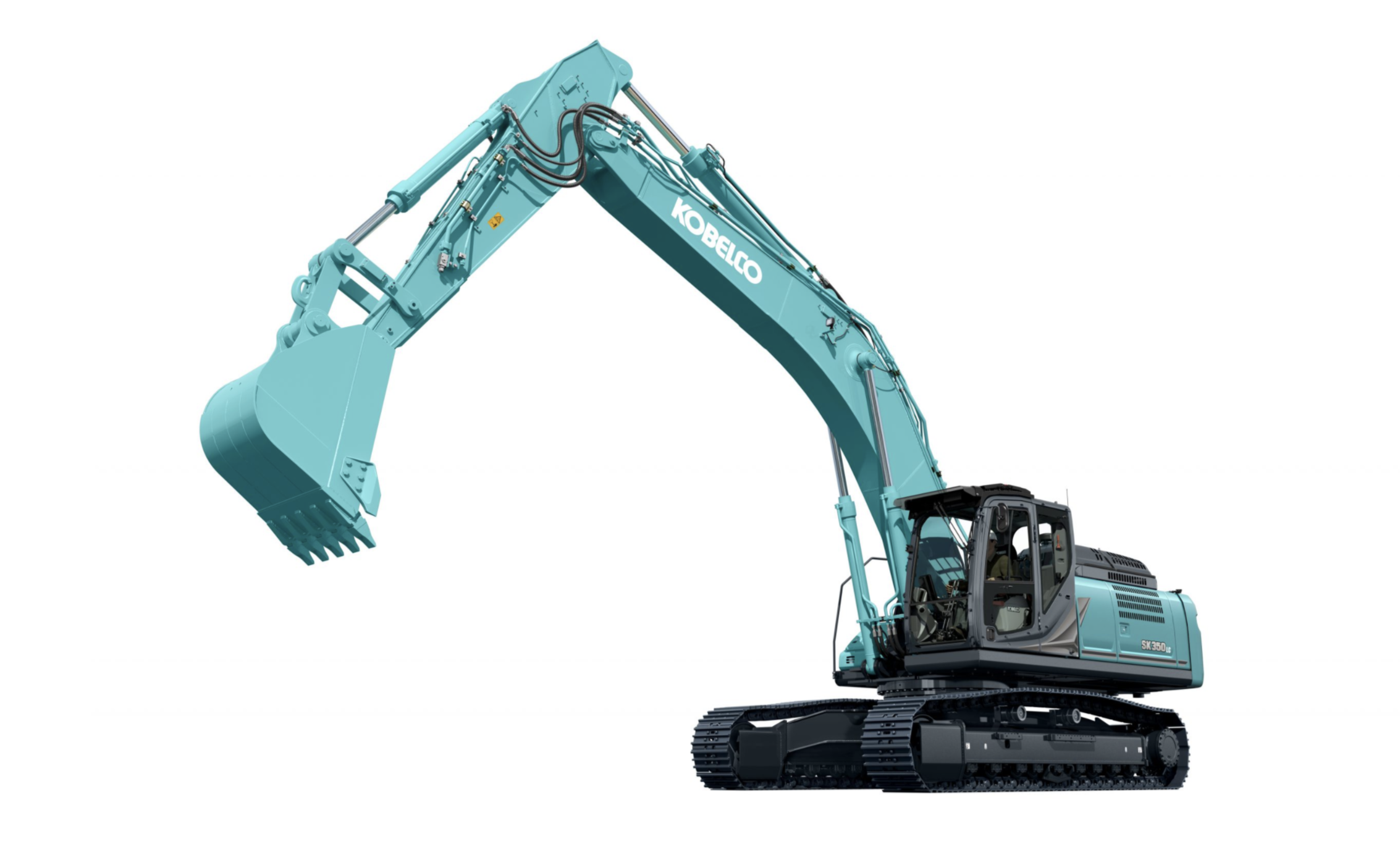

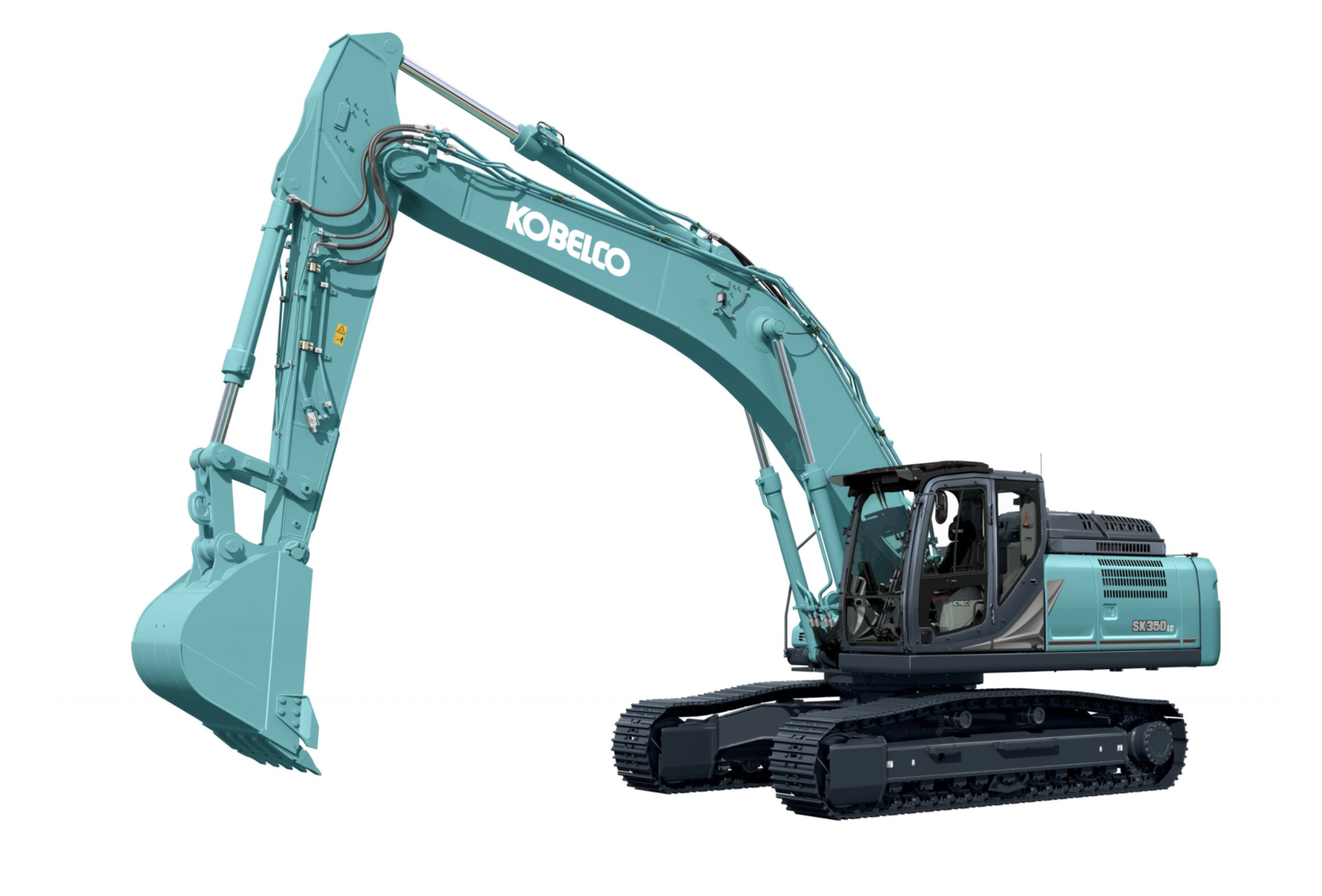

The SK350NLC-11E is a 37 tonne narrow track crawler excavator designed for heavy construction and restricted width job sites. It combines high power, strong digging performance and efficient hydraulics with a reduced machine width, delivering maximum productivity, stability and operator comfort in demanding conditions.

Industry Construction
Operating weight 30 - 50 t
Power 210 kW / 1,900 min-1
SPECIFICATIONS

Key specifications for SK350NLC-11E

Description
Number Of Boom Options 2
Rear View Camera Yes
Number Of Mono Booms 1
Boom Size 6.5 m
Number Of Dipper Options 3
Min Dipper Length 2600 mm
Max Dipper Length 4150 mm
Number Of Articulated Booms 1
Boom Size 6.47 m
Number Of Dipper Options 3
Min Dipper Length 2600 mm
Max Dipper Length 4150 mm
Dipper Length 3300 mm
Operating Weight 36900 - 37700 kg
Telematics
Available Yes
Driveline
Emission Rating Stage V
Manufacturer Isuzu
Model 6HK1
Aspiration Turbo
Charged Air Cooling Intercooler
EGR Cooled EGR
DOC Yes
SCR Yes
DPF Yes
Cooling Water
Cylinders 6
Displacement 7.79 L
Rated Speed 1900 rpm
Net Rating Standard ISO 9249
Net Output 198 kW
Gross Rating Standard ISO 14396
Gross Output 210 kW
Torque 1011 Nm
Torque Rated Speed 1500 rpm
Carrier Rollers Per Side 2
Track Rollers Per Side 9
Shoe Width 600 mm
Shoe Type Triple grouser
Track Shoes Per Side 48
Dimensions
Mono Boom 11300 mm
Articulated Boom 11270 mm
Over Boom 3420 mm
Without Boom 3200 - 3210 mm
Max Height 3670 - 3690 mm
Over Articulated Boom 3360 mm
Superstructure 2980 mm
Undercarriage 2990 mm
Overall Width 2990 mm
Track Length On Ground 4050 mm
Undercarriage Length 4960 mm
Tailswing Radius 3600 mm
Tail Length 3600 mm
Zero Tailswing No
Cab 3200 - 3210 mm
Counterweight Clearance 1190 mm
Ground Clearance 485 mm
Capacity Rating Standard ISO
Reference Capacity 1.4
Reference Weight 1070 kg
Width Over Tracks 2990 mm
Track Gauge 2390 mm
Variable Undercarriage Available No
Digging Reach 11260 mm
Ground Level Reach 11060 mm
Dig Height 10580 mm
Dump Height 7370 mm
Vertical Wall 6610 mm
Dig Depth - 2.44m (8ft) Flat Bottom 7400 mm
Dig Depth 7560 mm
Front Slew Radius 4310 mm
Digging Reach 11350 mm
Ground Level Reach 11160 mm
Dig Height 12650 mm
Dump Height 9280 mm
Vertical Wall 4460 mm
Dig Depth - 2.44m (8ft) Flat Bottom 7110 mm
Dig Depth 7200 mm
Front Slew Radius 3000 mm
Rating Standard ISO 10567
Reach At Ground Level 9.33 m
Reach At Ground Level 9.43 m
Capacities
Fuel Tank 503 L
DEF Tank 83 L
Engine Oil 48.6 L
Cooling System 41.4 L
Hydraulic Tank 245 L
Hydraulic System 410 L
Performance
Ground Bearing Pressure 69 - 71 kPa
Slew Speed 10 rpm
Slew Torque 119.6 kNm
Travel Speed - Low 3.3 kph
Travel Speed - High 5.6 kph
Tractive Force 321 kN
Boost Pressure Used For Breakout Yes
Dipper Tearout 180 kN
Bucket Breakout 244 kN
Gradeability 35 °
Gradeability 70 %
Internal Noise - LpA 72 dB(A)
External Noise - LwA 105 dB(A)
Lift Quoted With Bucket No
Lift Quoted With Quick-Hitch No
Lift Quoted With Dozer-Up/Down Down
End Lift - 4.5m 18060 kg
Side Lift - 4.5m 12500 kg
End Lift - 6.0m 13170 kg
Side Lift - 6.0m 8430 kg
End Lift - 7.5m 10400 kg
Side Lift - 7.5m 6260 kg
End Lift - 9.0m 8240 kg
Side Lift - 9.0m 4890 kg
End Lift - Max 6830 kg
Side Lift - Max 4660 kg
End Lift - 3.0m 22850 kg
Side Lift - 3.0m 22850 kg
End Lift - 4.5m 16900 kg
Side Lift - 4.5m 12320 kg
End Lift - 6.0m 12910 kg
Side Lift - 6.0m 8290 kg
End Lift - 7.5m 6850 kg
Side Lift - 7.5m 6150 kg
End Lift - 9.0m 6790 kg
Side Lift - 9.0m 4810 kg
End Lift - Max 6410 kg
Side Lift - Max 4530 kg
Main Pumps 2
Main Pump - Total 588 L/min
Boom 343 bar
Dipper 343 bar
Attachment 343 bar
Boost 378 bar
Weights
Mono Boom 36900 - 37700 kg
For more detailed specifications and lifting capacities, please download the brochure
