SR Series

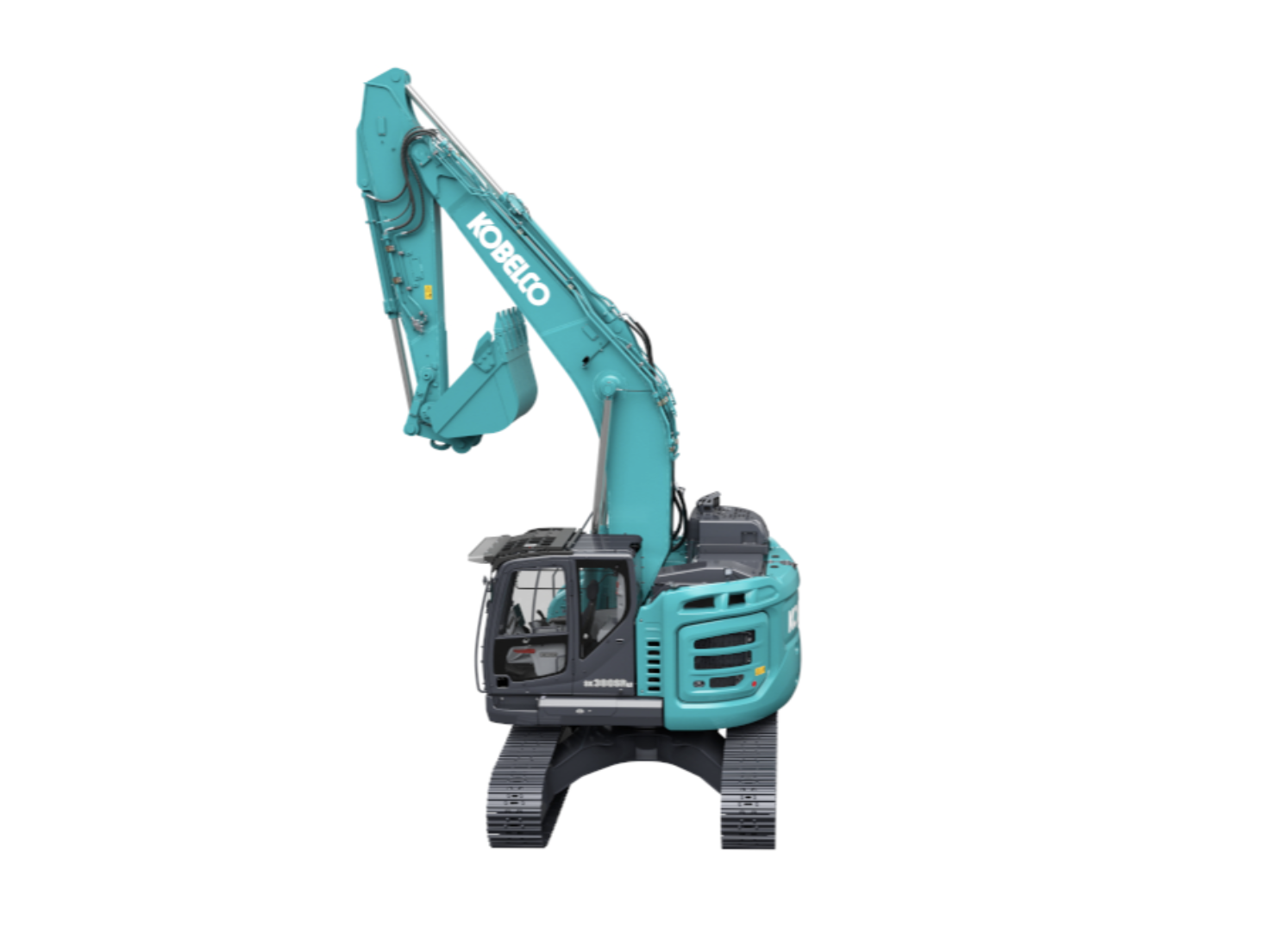

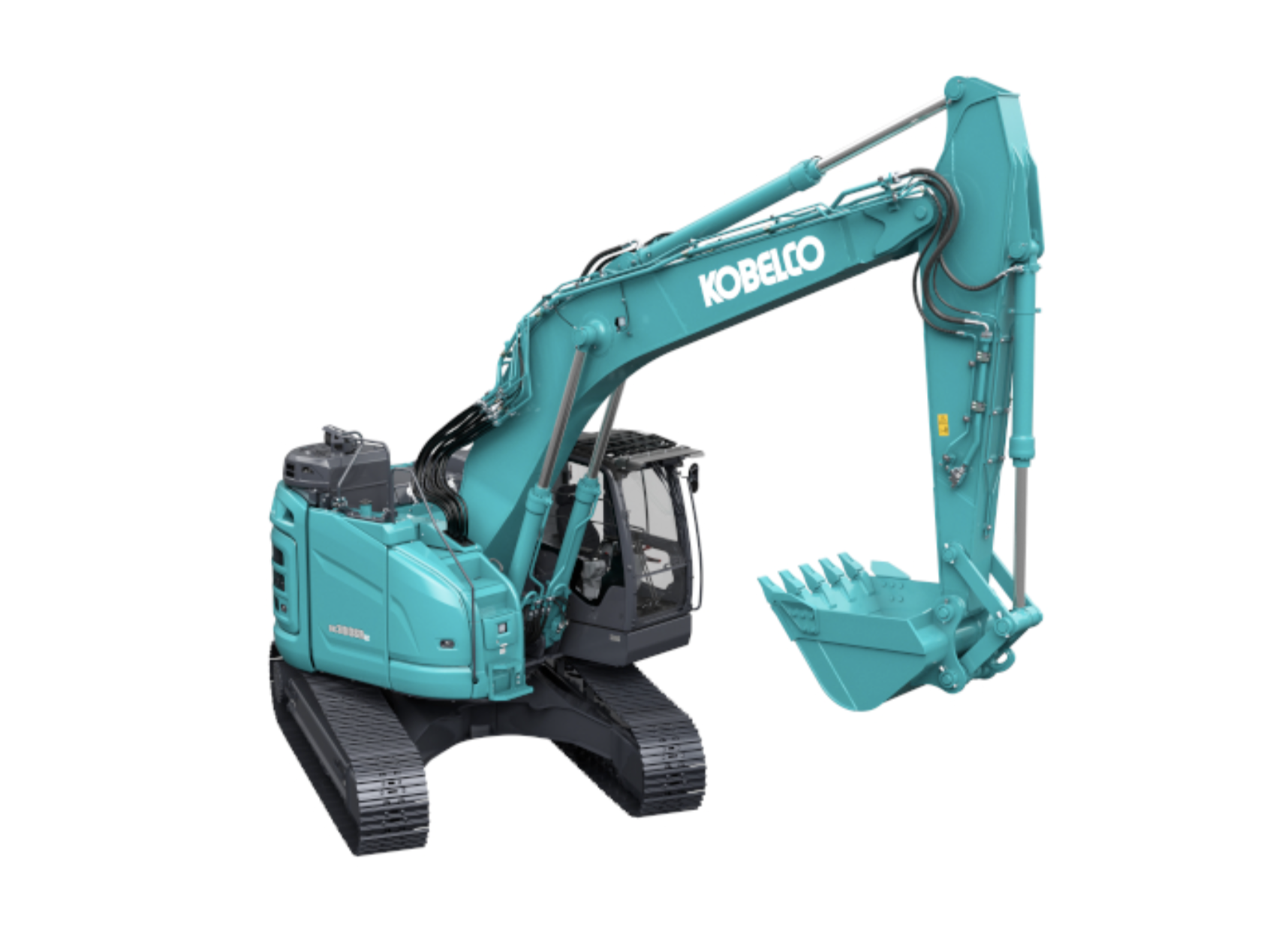

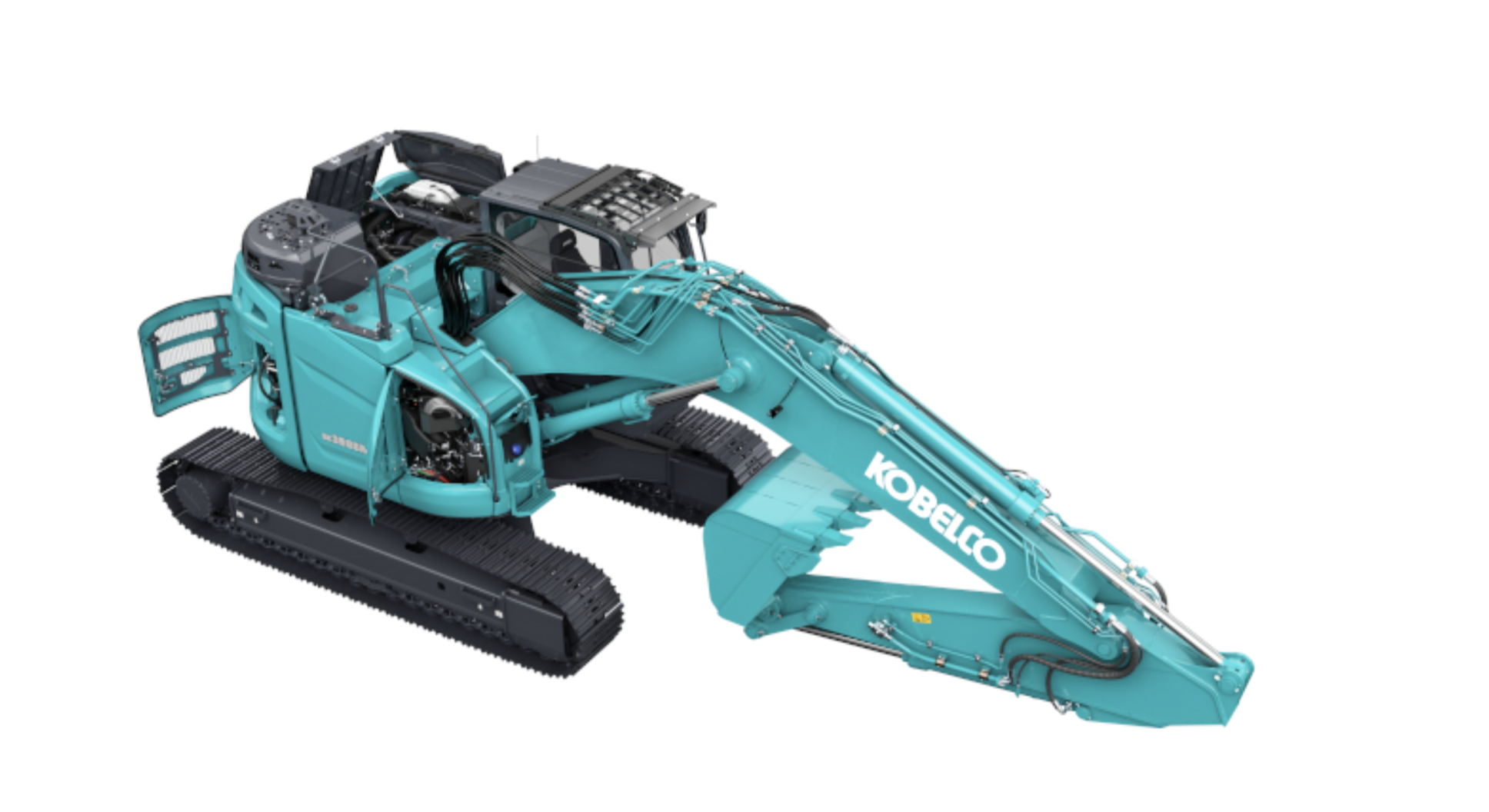

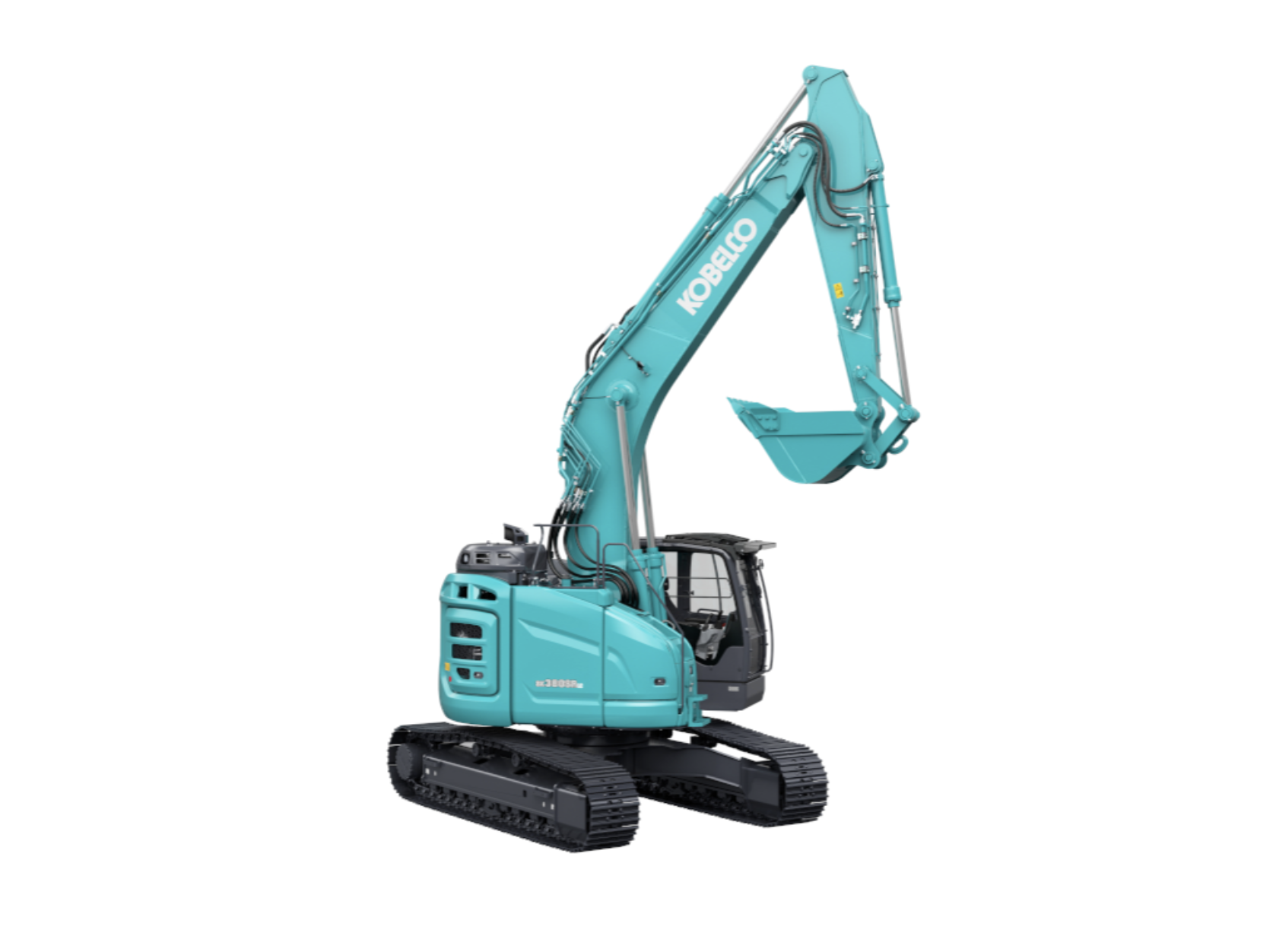

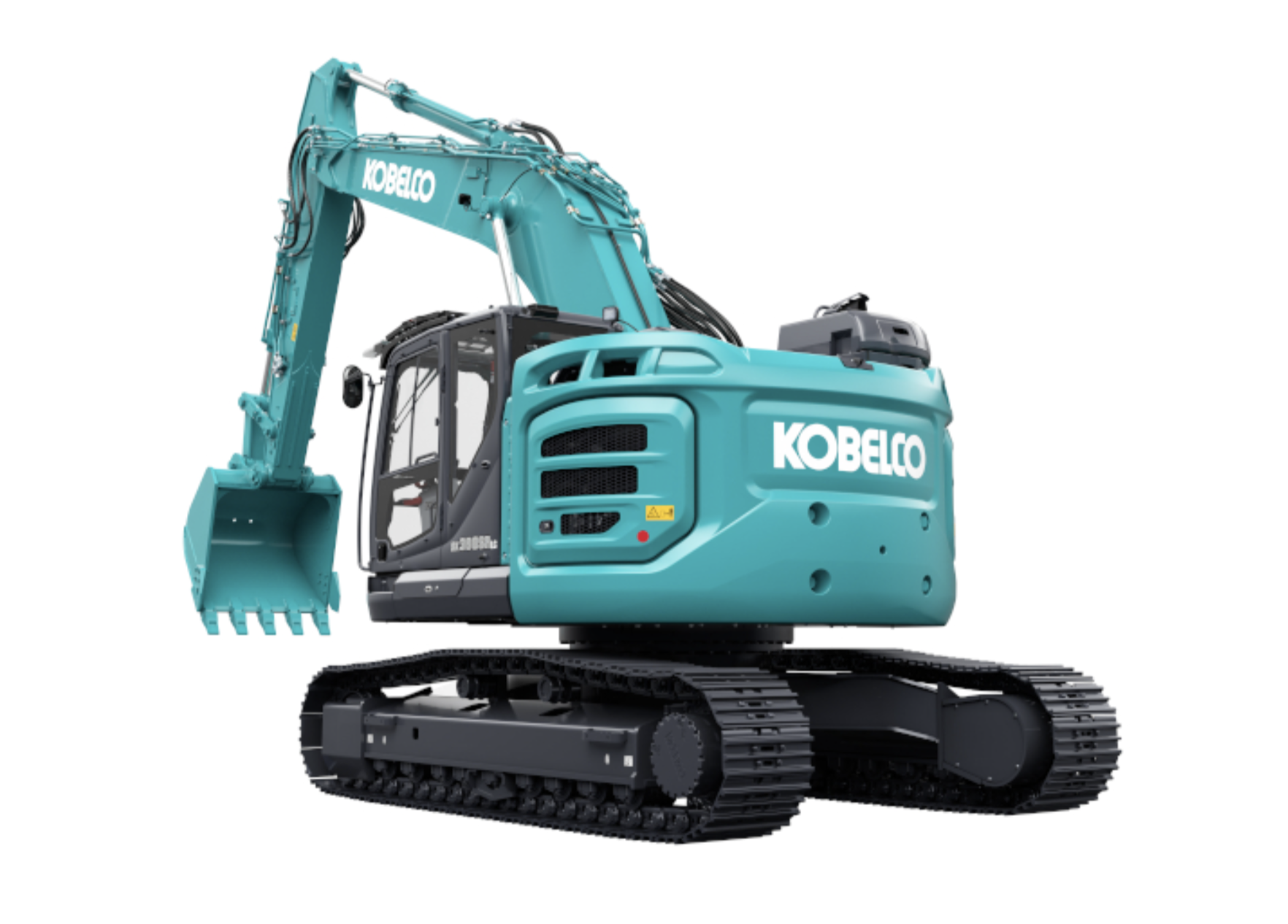

Powered by a 210 kW Stage V engine and engineered for high digging and lifting performance, the KOBELCO SK380SRLC-7 combines the strength of a large machine with the manoeuvrability of a short-tail model. With its minimal rear overhang and refined operator environment, the SK380SRLC-7 is perfectly suited for demanding work in urban and infrastructure environments.

Industry Construction
Operating weight 30 - 50 t
Power 210 kW / 1,900 min-1
SPECIFICATIONS

Key specifications for SK380SRLC-7

Description
Number Of Boom Options 2
Number Of Mono Booms 1
Boom Size 6.2 m
Number Of Dipper Options 2
Min Dipper Length 2400 mm
Max Dipper Length 3100 mm
Number Of Articulated Booms 1
Number Of Dipper Options 2
Min Dipper Length 2400 mm
Max Dipper Length 3100 mm
Dipper Length 3100 mm
Operating Weight 37000 - 37700 kg
Counterweight 9000 kg
Driveline
Manufacturer ISUZU
Model 6HK1
Aspiration Turbo
Charged Air Cooling Intercooler
DOC Yes
SCR Yes
DPF Yes
Cooling Water
Cylinders 6
Displacement 7.79 L
Rated Speed 1900 rpm
Net Rating Standard ISO 9249
Net Output 198 kW
Gross Rating Standard ISO 14396
Gross Output 210 kW
Torque 1011 Nm
Torque Rated Speed 1500 rpm
Carrier Rollers Per Side 2
Track Rollers Per Side 9
Shoe Width 600 mm
Shoe Type Triple grouser
Track Shoes Per Side 48
Dimensions
Mono Boom 9980 mm
Articulated Boom 10050 mm
Over Boom 3310 mm
Without Boom 3510 mm
Max Height 3510 mm
Over Articulated Boom 3110 mm
Superstructure 3180 mm
Undercarriage 3190 mm
Overall Width 3190 mm
Track Length On Ground 4050 mm
Undercarriage Length 4960 mm
Tailswing Radius 1900 mm
Tail Length 1900 mm
Zero Tailswing No
Cab 3350 mm
Counterweight Clearance 1160 mm
Ground Clearance 485 mm
Capacity Rating Standard ISO
Reference Capacity 1.2
Reference Weight 1060 kg
Width Over Tracks 3190 mm
Track Gauge 2590 mm
Variable Undercarriage Available No
Digging Reach 10930 mm
Ground Level Reach 10740 mm
Dig Height 11170 mm
Dump Height 8150 mm
Vertical Wall 6110 mm
Dig Depth - 2.44m (8ft) Flat Bottom 6830 mm
Dig Depth 6990 mm
Front Slew Radius 3450 mm
Digging Reach 11010 mm
Ground Level Reach 10820 mm
Dig Height 11770 mm
Dump Height 8680 mm
Vertical Wall 4920 mm
Dig Depth - 2.44m (8ft) Flat Bottom 6760 mm
Dig Depth 6860 mm
Front Slew Radius 2990 mm
Rating Standard ISO 10567
Reach At Ground Level 9.13 m
Reach At Ground Level 9.21 m
Capacities
Fuel Tank 350 L
DEF Tank 20.7 L
Engine Oil 48.6 L
Cooling System 41.2 L
Hydraulic Tank 245 L
Hydraulic System 440 L
Performance
Ground Bearing Pressure 69 - 71 kPa
Slew Speed 8.4 rpm
Slew Torque 122.1 kNm
Travel Speed - Low 2.8 kph
Travel Speed - High 4.6 kph
Tractive Force 314 kN
Boost Pressure Used For Breakout Yes
Dipper Tearout 139 kN
Bucket Breakout 208 kN
Gradeability 35 °
Gradeability 70 %
Internal Noise - LpA 72 dB(A)
External Noise - LwA 106 dB(A)
Lift Quoted With Bucket No
End Lift - 4.5m 17670 kg
Side Lift - 4.5m 10320 kg
End Lift - 6.0m 12390 kg
Side Lift - 6.0m 6870 kg
End Lift - 7.5m 8860 kg
Side Lift - 7.5m 5070 kg
End Lift - 9.0m 6450 kg
Side Lift - 9.0m 3940 kg
End Lift - Max 4770 kg
Side Lift - Max 3860 kg
End Lift - 3.0m 24510 kg
Side Lift - 3.0m 20530 kg
End Lift - 4.5m 16740 kg
Side Lift - 4.5m 10020 kg
End Lift - 6.0m 11920 kg
Side Lift - 6.0m 6660 kg
End Lift - 7.5m 8520 kg
Side Lift - 7.5m 4910 kg
End Lift - 9.0m 6560 kg
Side Lift - 9.0m 3820 kg
End Lift - Max 4620 kg
Side Lift - Max 3700 kg
Main Pumps 2
Main Pump - Total 490 L/min
Boom 343 bar
Dipper 343 bar
Attachment 343 bar
Boost 378 bar
Weights
Mono Boom 37000 - 37700 kg
For more detailed specifications and lifting capacities, please download the brochure
