Conventional Excavators

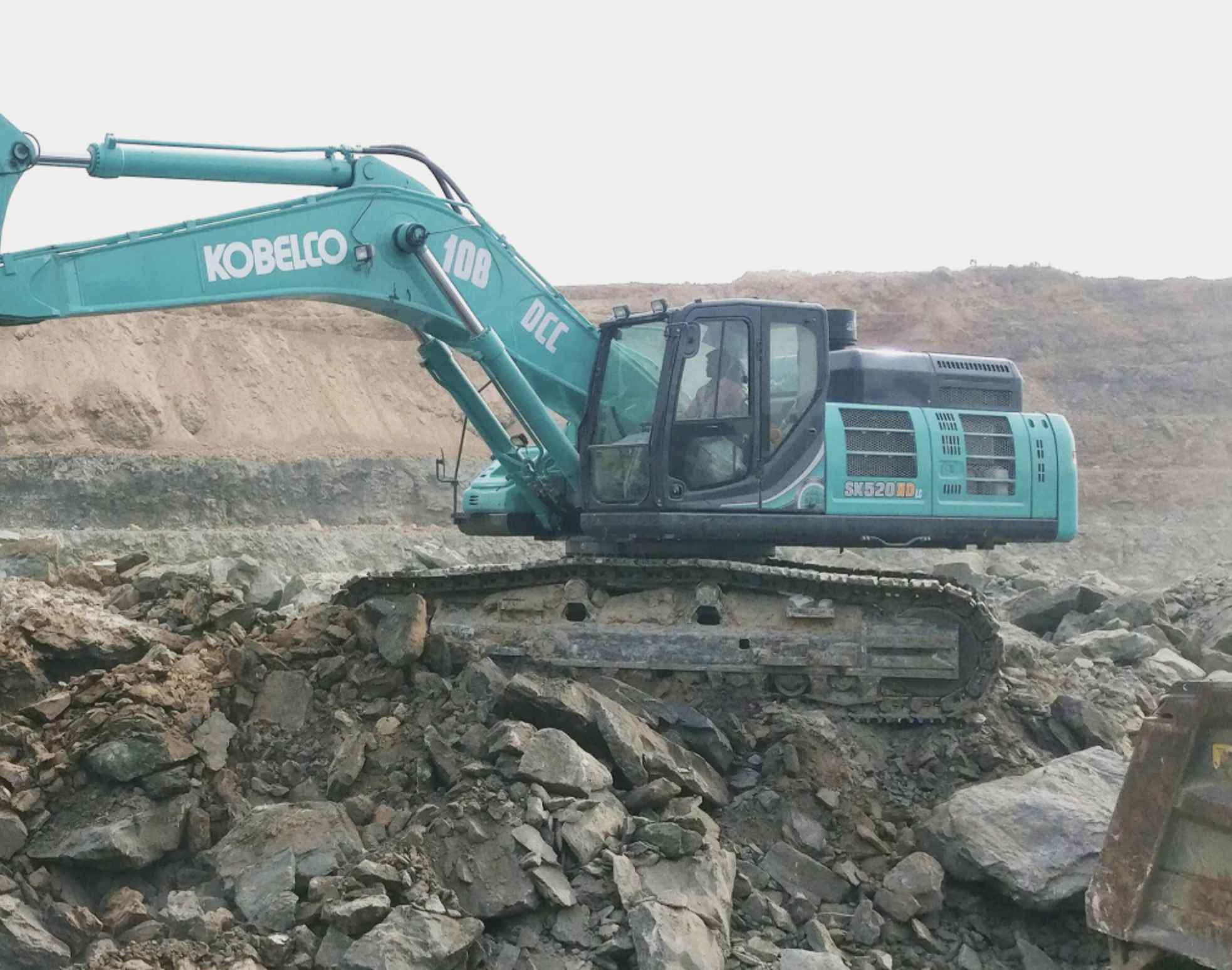

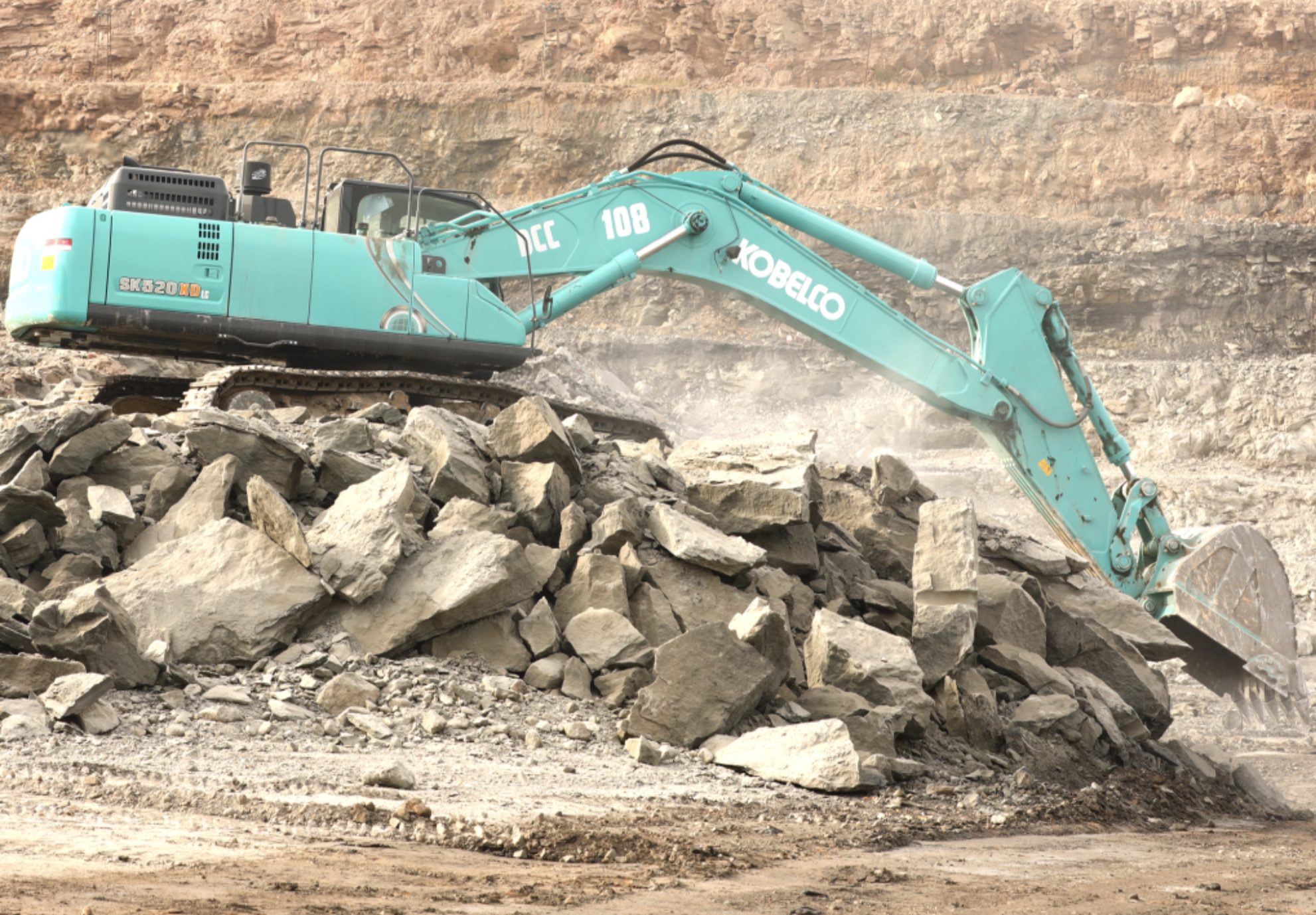

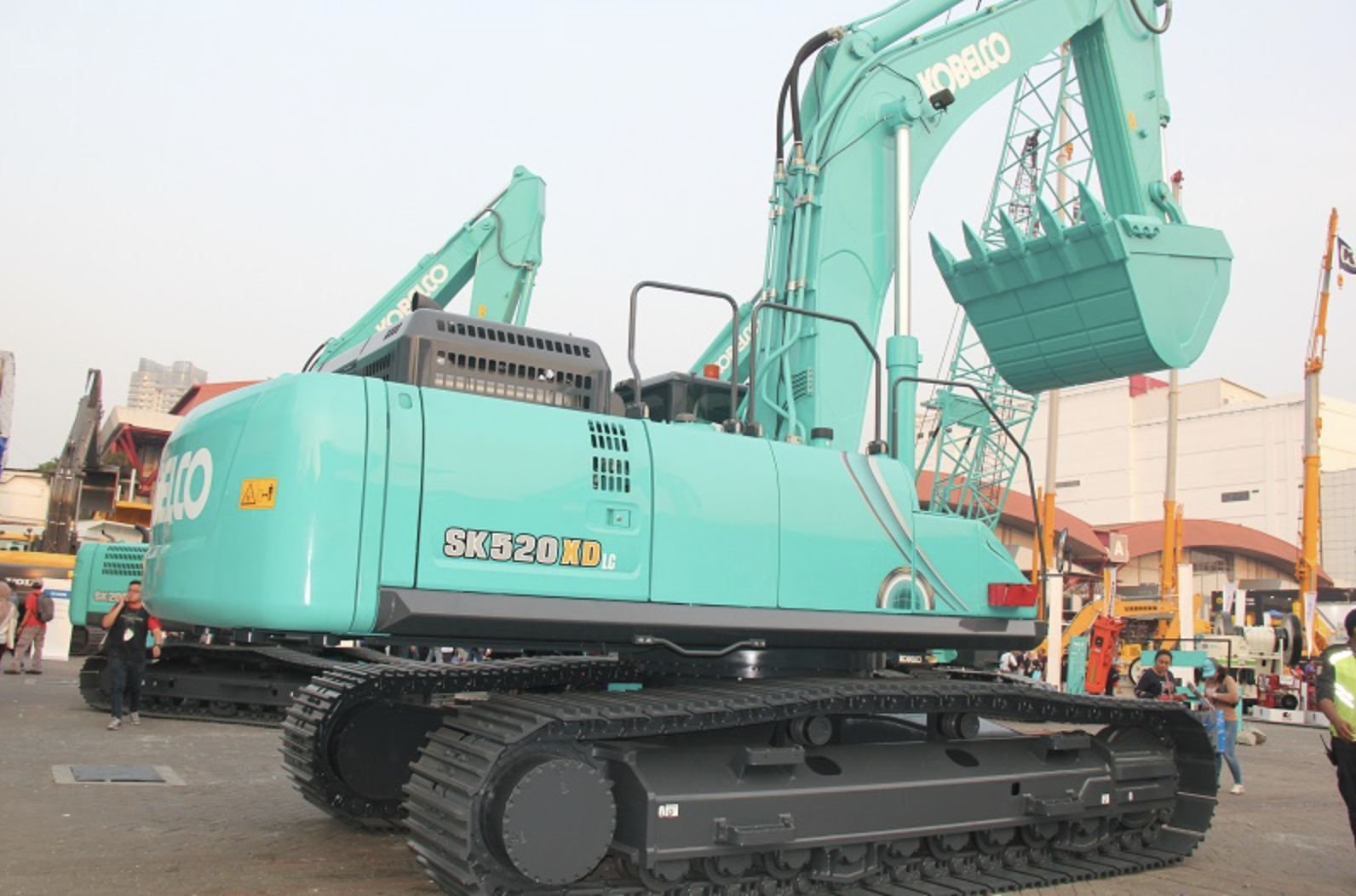

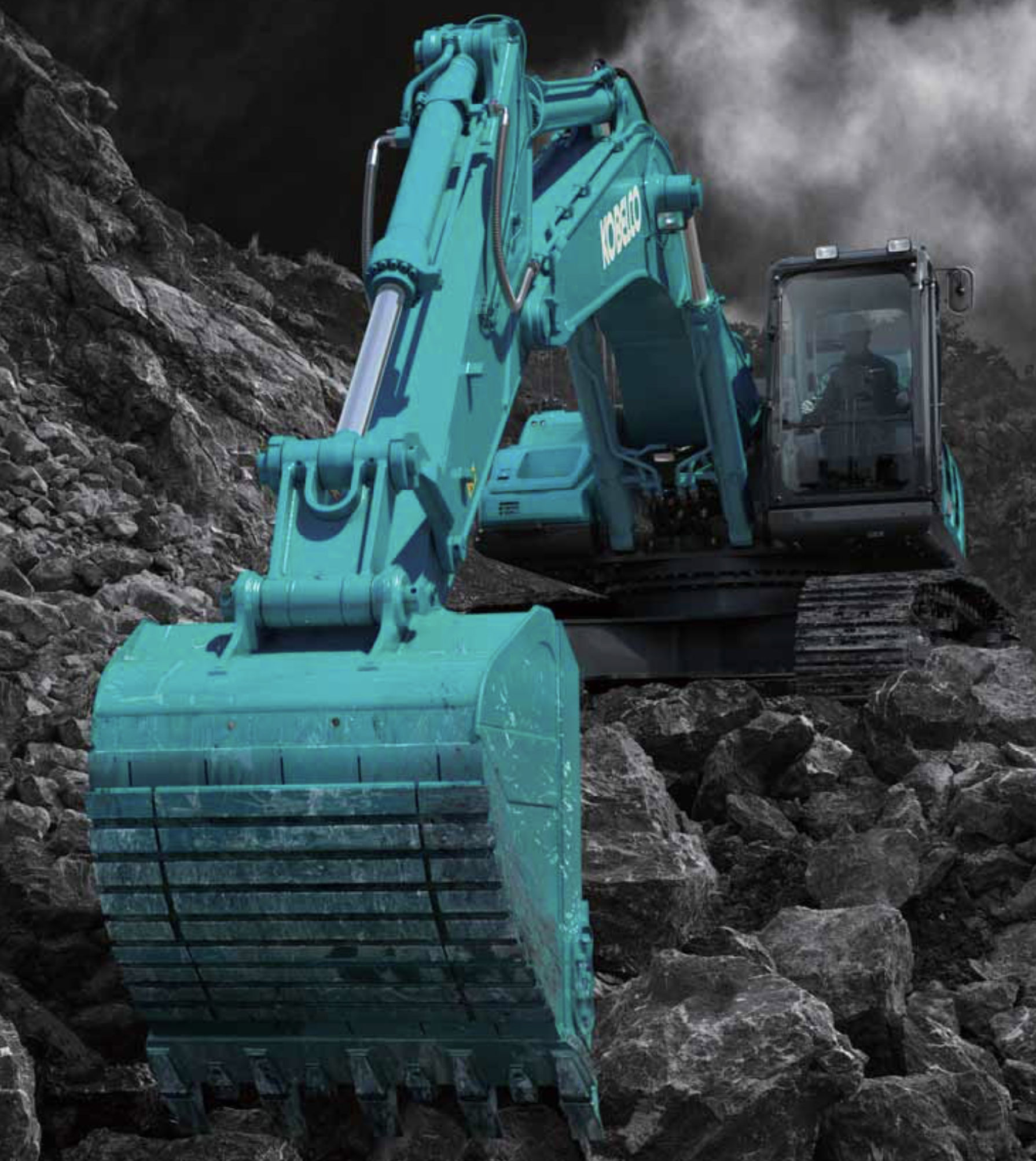

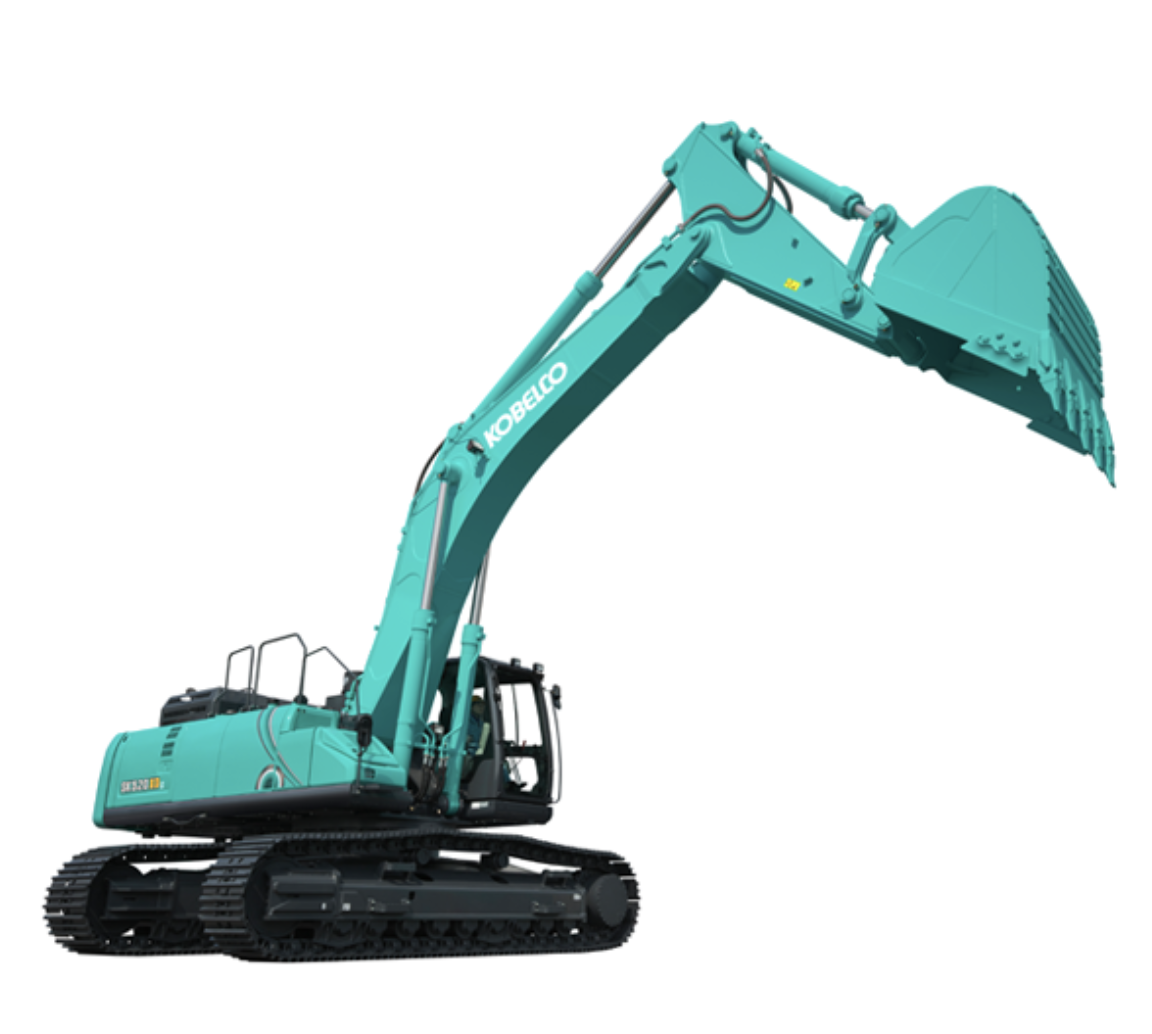

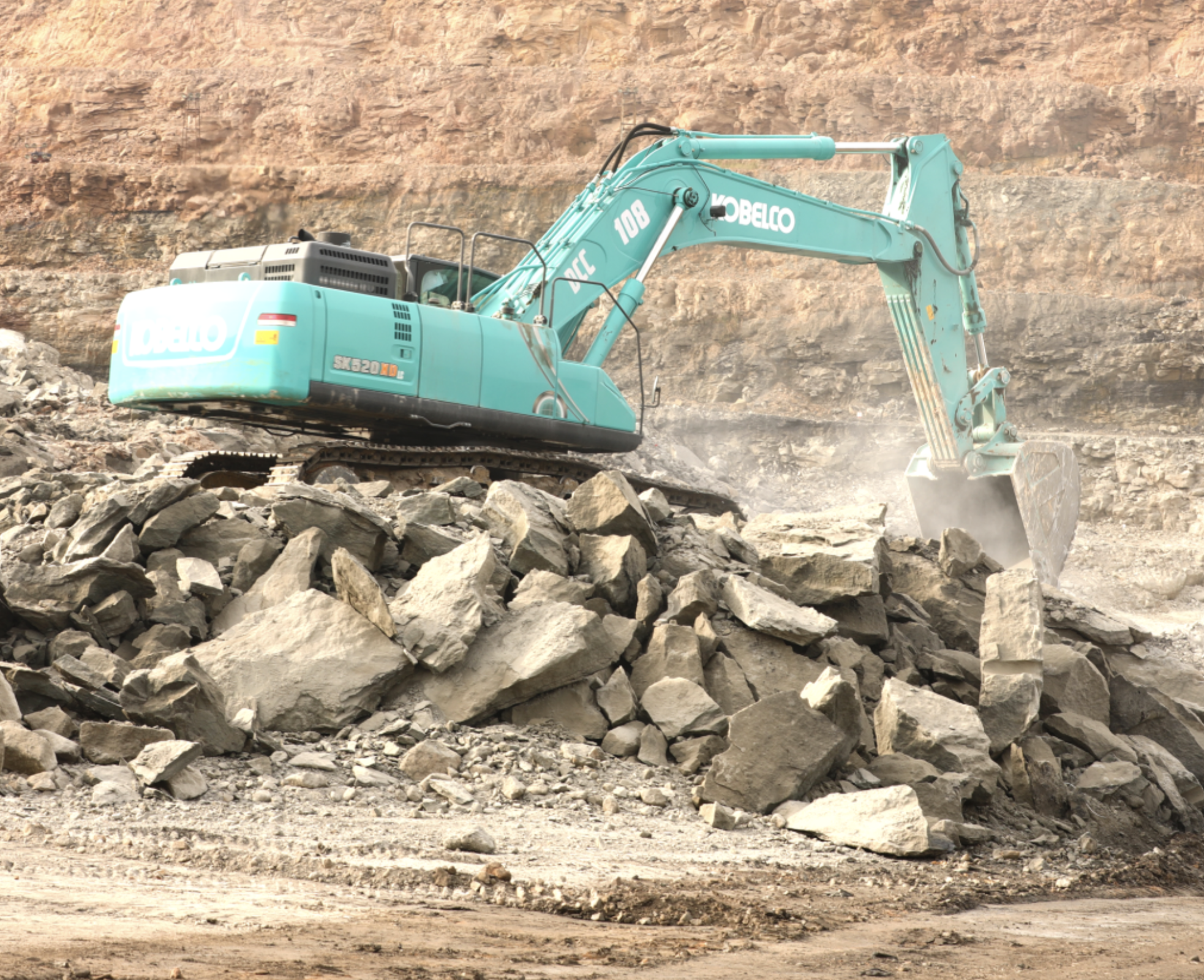

The KOBELCO SK520XDLC-10 is a heavy duty crawler excavator built for maximum performance in the toughest conditions. Featuring a reinforced structure, powerful hydraulics and high lifting capacity, it delivers outstanding productivity and durability for large scale earthmoving, quarrying and infrastructure projects.

Industry Construction Quarrying
Operating weight + 50 t
Power 257 kW / 1,850 min-1
SPECIFICATIONS

Key specifications for SK520XDLC-10

Description
Number Of Boom Options 2
Rear View Camera Optional
Number Of Mono Booms 2
Boom Size 7 m
Number Of Dipper Options 2
Min Dipper Length 2600 mm
Max Dipper Length 3000 mm
Dipper Length 3000 mm
Operating Weight 52600 kg
Counterweight 11200 kg
Telematics
Available Yes
Driveline
Manufacturer Hino
Model P11C-WF
Aspiration Turbo
Charged Air Cooling Intercooler
Cooling Water
Cylinders 6
Displacement 10.52 L
Rated Speed 1850 rpm
Gross Rating Standard ISO 14396
Gross Output 257 kW
Torque 1400 Nm
Torque Rated Speed 1400 rpm
Carrier Rollers Per Side 2
Track Rollers Per Side 9
Shoe Width 600 mm
Shoe Type Triple grouser
Track Shoes Per Side 50
Dimensions
Mono Boom 12060 mm
Over Boom 4330 mm
Without Boom 3320 mm
Max Height 4330 mm
Superstructure 2980 mm
Undercarriage 3580 mm
Overall Width 3580 mm
Track Length On Ground 4400 mm
Undercarriage Length 5460 mm
Tailswing Radius 3880 mm
Tail Length 3880 mm
Zero Tailswing No
Cab 3320 mm
Counterweight Clearance 1260 mm
Ground Clearance 510 mm
Capacity Rating Standard ISO
Reference Capacity 3.1
Reference Weight 2320 kg
Width Over Tracks 3580 mm
Track Gauge 2750 mm
Variable Undercarriage Available No
Digging Reach 11250 mm
Ground Level Reach 11010 mm
Dig Height 11120 mm
Dump Height 7180 mm
Vertical Wall 6080 mm
Dig Depth - 2.44m (8ft) Flat Bottom 6660 mm
Dig Depth 6820 mm
Front Slew Radius 4960 mm
Rating Standard ISO 10567
Reach At Ground Level 8.88 m
Capacities
Fuel Tank 638 L
Engine Oil 42.5 L
Cooling System 47.4 L
Hydraulic Tank 371 L
Hydraulic System 631 L
Performance
Ground Bearing Pressure 90 kPa
Slew Speed 7.6 rpm
Travel Speed - Low 3.4 kph
Travel Speed - High 5.4 kph
Tractive Force 415 kN
Boost Pressure Used For Breakout Yes
Dipper Tearout 261 kN
Bucket Breakout 308 kN
Gradeability 35 °
Gradeability 70 %
Lift Quoted With Bucket No
End Lift - 6.0m 16670 kg
Side Lift - 6.0m 14050 kg
End Lift - 7.5m 13110 kg
Side Lift - 7.5m 10390 kg
End Lift - Max 9640 kg
Side Lift - Max 8370 kg
Main Pumps 2
Main Pump - Total 740 L/min
Boom 314 bar
Dipper 314 bar
Attachment 314 bar
Boost 343 bar
Weights
Mono Boom 52600 kg
For more detailed specifications and lifting capacities, please download the brochure
Download brochure
