SK58SRX-7E
SK58SRX-7E
SK58SRX-7E
SK58SRX-7E
SK58SRX-7E

SK58SRX-7E

SR Series

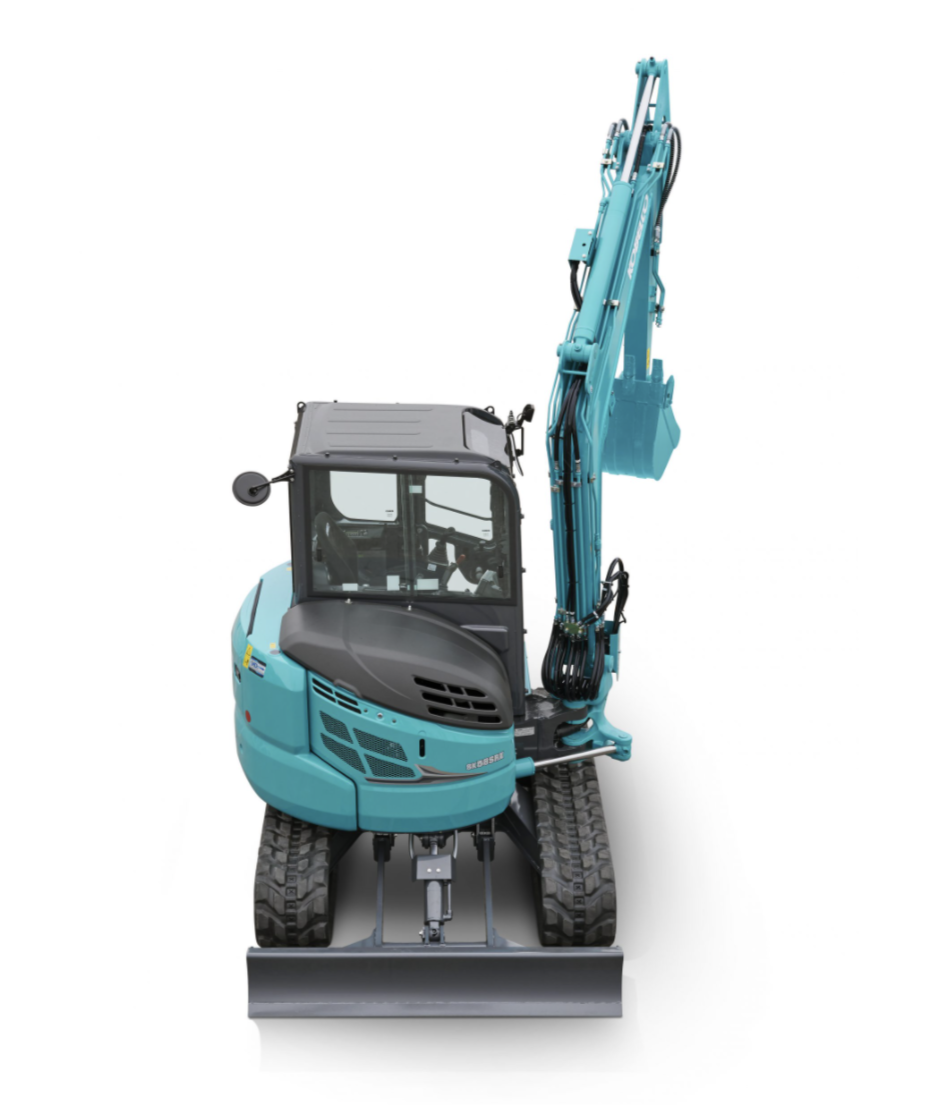

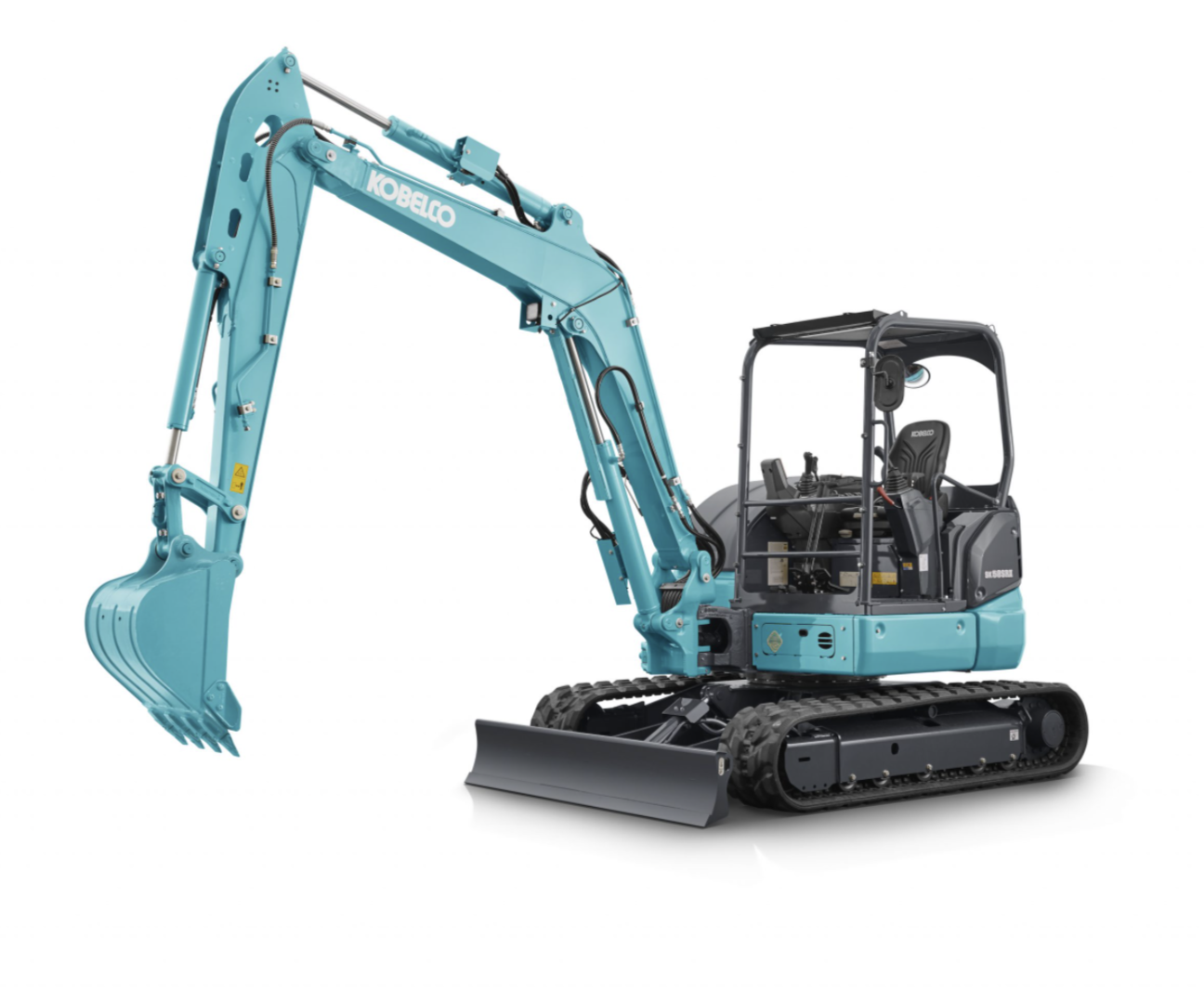

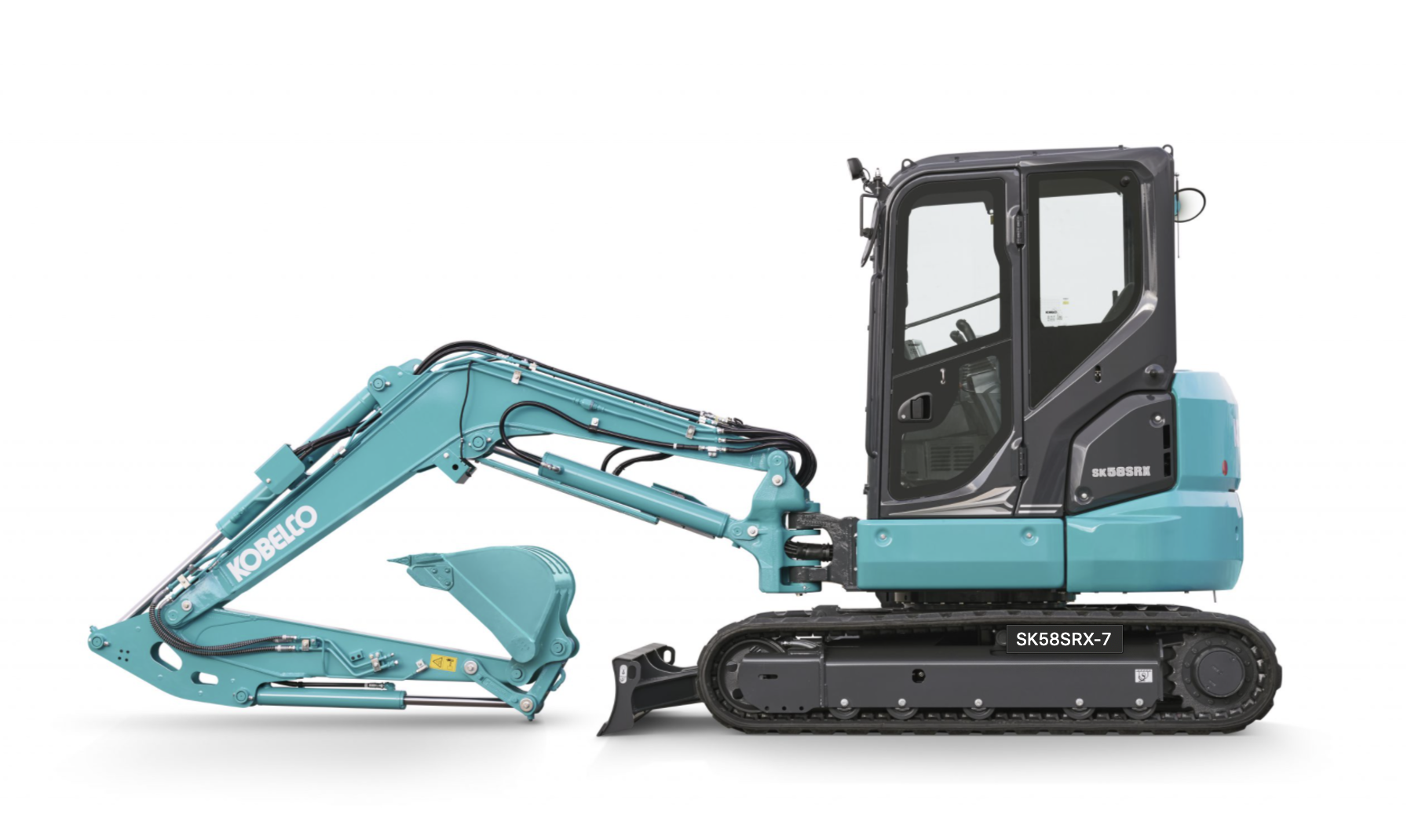

The SK58SRX-7E is a versatile, compact excavator engineered for maximum efficiency in confined spaces. Combining advanced hydraulic performance, with superior maneuverability, it delivers precise operation without compromising power. The SK58SRX-7E is ideal for construction, landscaping, and utility projects where performance and agility are key.

Industry Construction Landscaping
Operating weight 0 - 6 t
Power 33.6 kW / 2,400 min-1
SPECIFICATIONS

Key specifications for SK58SRX-7E

Description
Number Of Boom Options 1
Rear View Camera No
Number Of Mono Booms 1
Boom Size 2.99 m
Number Of Dipper Options 2
Min Dipper Length 1690 mm
Max Dipper Length 1920 mm
Dipper Length 1690 mm
Operating Weight 5140 - 5300 kg
Telematics
Available Yes
Driveline
Manufacturer Kubota
Model V2403-CR-TE5B
Cooling Water
Cylinders 4
Displacement 2.434 L
Rated Speed 2400 rpm
Net Rating Standard ISO 9249
Net Output 32.9 kW
Gross Rating Standard ISO 14396
Gross Output 33.6 kW
Torque 157.4 Nm
Torque Rated Speed 1500 rpm
Carrier Rollers Per Side 1
Track Rollers Per Side 5
Shoe Width 400 mm
Shoe Type Rubber
Track Shoes Per Side 38
Dimensions
Mono Boom 5500 mm
Without Boom 2530 - 2560 mm
Max Height 2530 - 2560 mm
Superstructure 1940 mm
Undercarriage 1960 mm
Overall Width 1960 mm
Track Length On Ground 2000 mm
Undercarriage Length 2500 mm
Tailswing Radius 1170 mm
Tail Length 1170 mm
Zero Tailswing No
Cab 2560 mm
Canopy 2530 mm
Counterweight Clearance 605 mm
Reference Capacity 0.14
Min Capacity 0.14
Max Capacity 0.16
Reference Weight 100 kg
Min Weight 100 kg
Max Weight 110 kg
Available Standard
Type Straight
Height 345 mm
Width 1960 mm
Raised Height 465 mm
Dig Depth 335 mm
Width Over Tracks 1960 mm
Track Gauge 1560 mm
Variable Undercarriage Available No
Digging Reach 6240 - 6460 mm
Ground Level Reach 6100 - 6330 mm
Dig Height 5950 - 6100 mm
Dump Height 4370 - 4520 mm
Vertical Wall 3120 - 3350 mm
Dig Depth - 2.44m (8ft) Flat Bottom 3470 - 3730 mm
Dig Depth 3890 - 4120 mm
Front Slew Radius 2250 - 2270 mm
Front Slew Radius - Swing Boom 1850 - 1870 mm
Boom Swing - Left 70 °
Boom Swing - Right 59 °
Left Digging Offset 745 mm
Right Digging Offset 735 mm
Rating Standard ISO 10567
Reach At Ground Level 5.27 m
Capacities
Fuel Tank 75 L
Engine Oil 7.8 L
Cooling System 9.8 L
Hydraulic Tank 27.9 L
Hydraulic System 59 L
Performance
Ground Bearing Pressure 29 - 29.9 kPa
Slew Speed 8.5 rpm
Slew Torque 12.4 kNm
Travel Speed - Low 2.4 kph
Travel Speed - High 4.5 kph
Tractive Force 54.5 kN
Boost Pressure Used For Breakout Unlisted
Dipper Tearout 24.8 kN
Bucket Breakout 35.6 kN
Gradeability 30 °
Gradeability 58 %
Internal Noise - LpA 76 dB(A)
External Noise - LwA 96 dB(A)
Lift Quoted With Bucket No
Lift Quoted With Quick-Hitch No
Lift Quoted With Dozer-Up/Down Up
End Lift - 2.0m 1260 kg
Side Lift - 2.0m 1260 kg
End Lift - 3.0m 1580 - 1650 kg
Side Lift - 3.0m 1270 - 1320 kg
End Lift - 4.0m 1030 - 1080 kg
Side Lift - 4.0m 850 - 890 kg
End Lift - 5.0m 760 - 790 kg
Side Lift - 5.0m 630 - 660 kg
End Lift - Max 700 - 730 kg
Side Lift - Max 590 - 610 kg
Main Pumps 2
Main Pump - Total 106 L/min
Boom 230 bar
Dipper 230 bar
Attachment 230 bar
Weights
Mono Boom 5140 - 5300 kg
For more detailed specifications and lifting capacities, please download the brochure
