SK650DLC-11
SK650DLC-11
SK650DLC-11
SK650DLC-11

SK650DLC-11

Demolition and Recycling

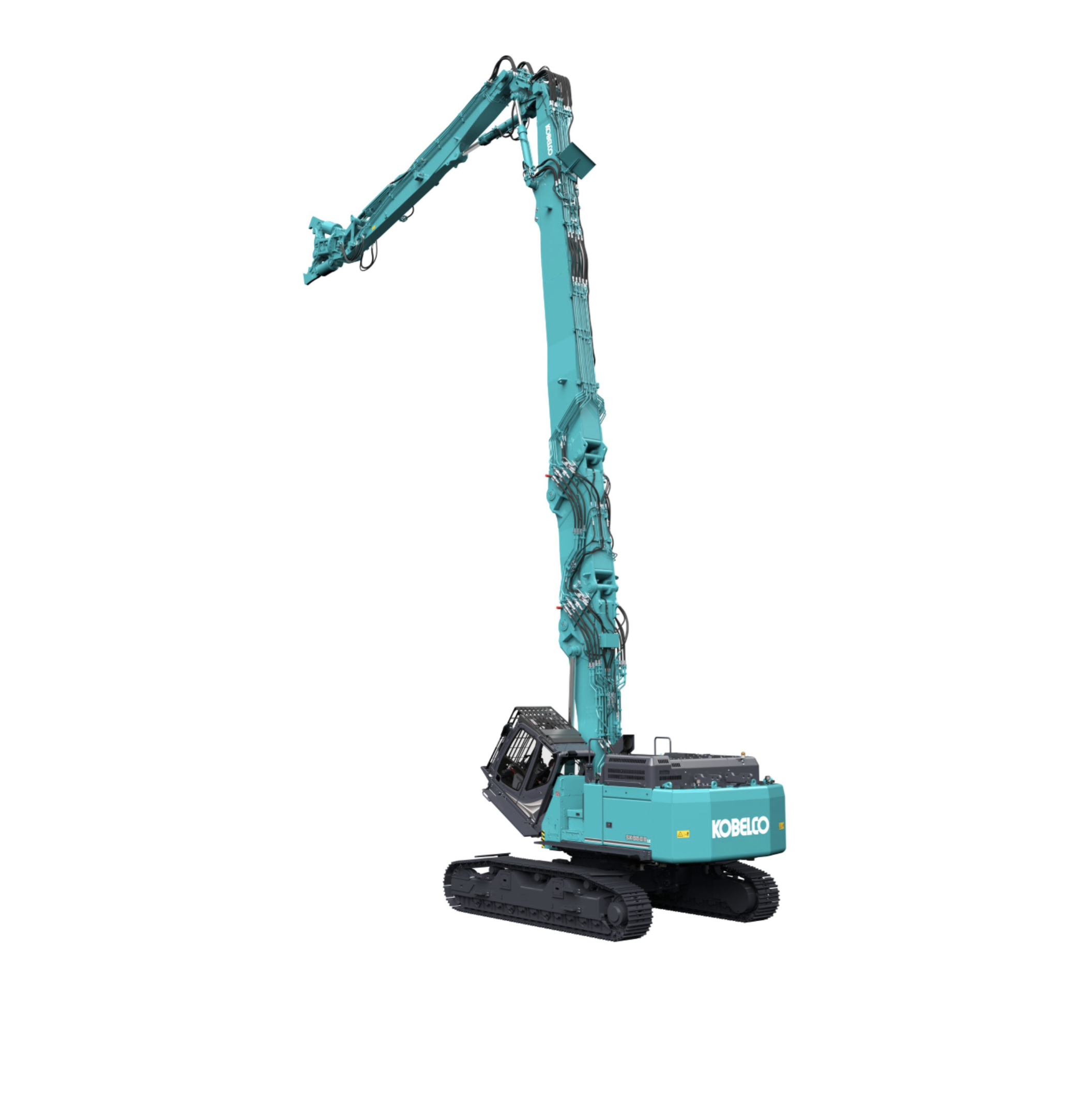

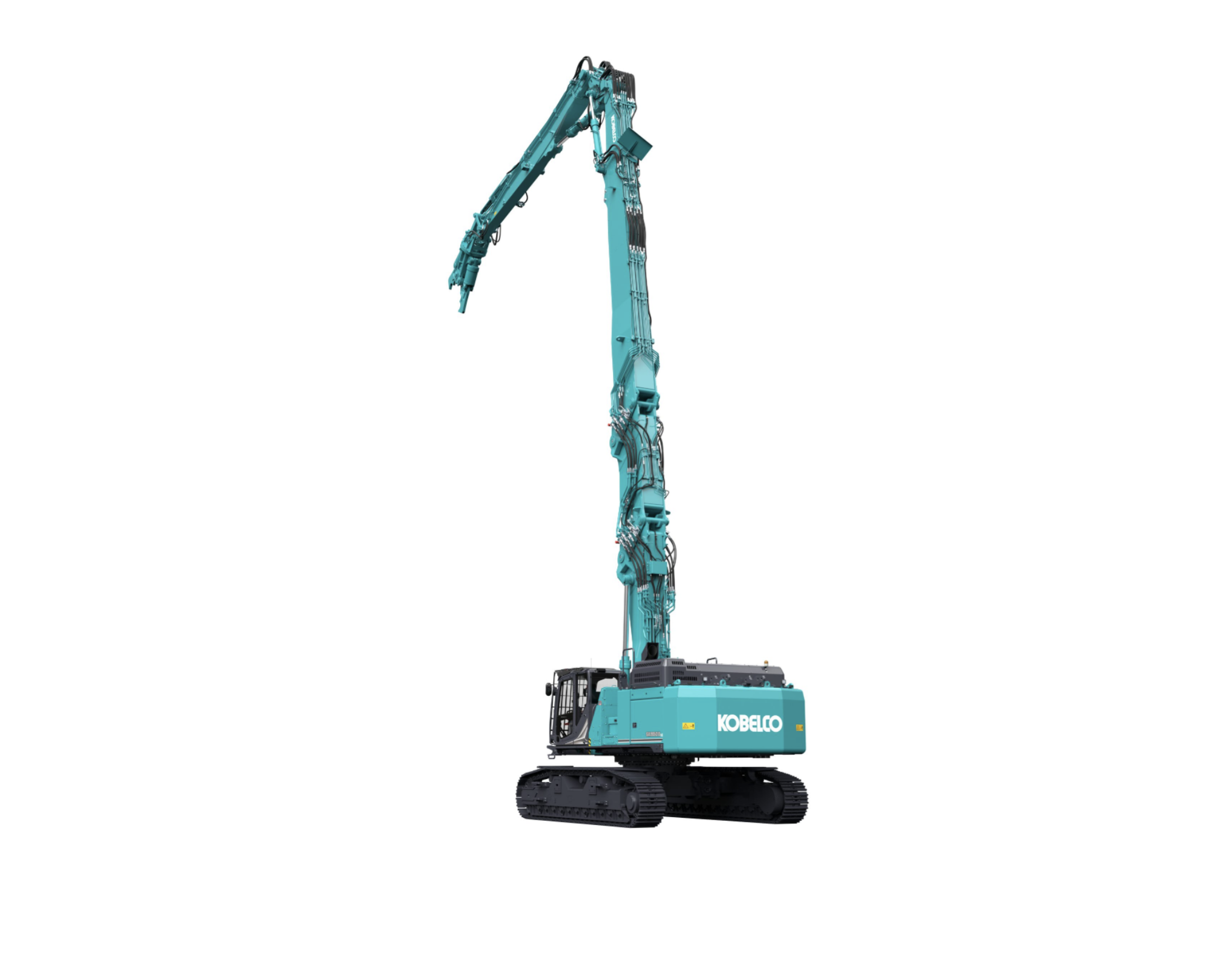

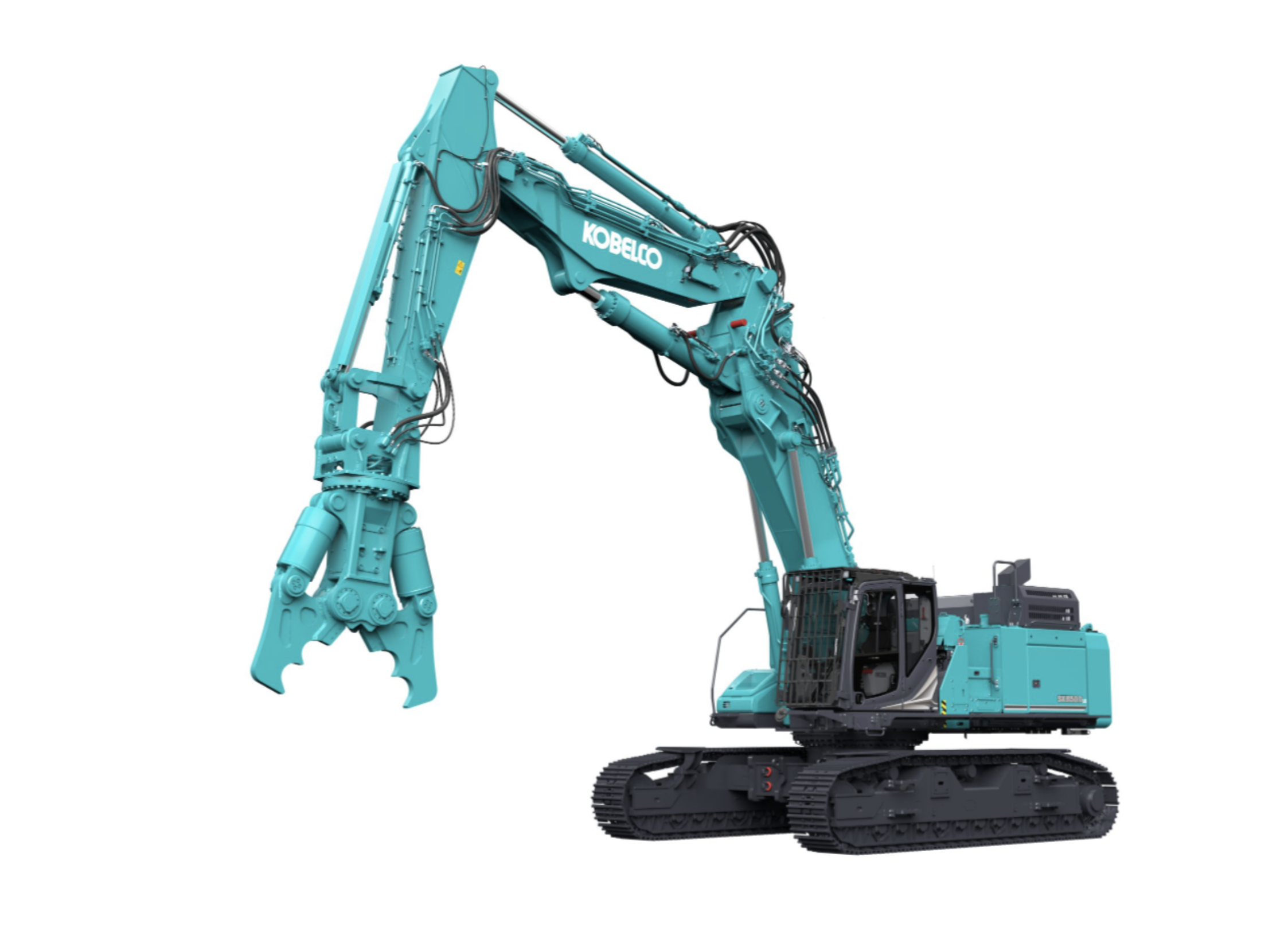

The KOBELCO SK650DLC-11 is a heavy-duty demolition excavator (63–80 tonne class) designed for high reach building demolition, industrial dismantling, and foundation work. It sits above the SK550DLC-11E in power and lifting capacity, but below the ultra large SK1300DLC series.

Industry Demolition Foundation
Operating weight + 50 t
Power 348 kW / 1,800 min-1
SPECIFICATIONS

Key specifications for SK650DLC-11

Description
Telematics Available Yes
Rear View Camera Yes
Cab Tilt 30 °
Number Of Booms 2
Boom Size 25.3 - 28.2 m
Number Of Dipper Options 1
Reference Dipper 3450 mm
Cab Riser Tilt back
Engine
Engine Manufacturer Isuzu
Engine Model 6WG1
Cylinders 6
Aspiration Turbo
Exhaust System DOC-SCR
Cooling Water
Displacement 15.681 L
Rated Speed 1800 rpm
Gross Rating Standard ISO 14396
Gross Output 348 kW
Driveline
Variable Undercarriage Available Yes
Track Width - Retracted 3180 mm
Track Width - Extended 4200 mm
Shoe Type Triple grouser
Shoe Width 600 mm
Dimensions
Triple Articulated 18030 - 21030 mm
Demolition Boom 15090 - 18090 mm
Over Triple Articulated Boom 3120 - 3180 mm
Over Demolition Boom 3520 - 3560 mm
Overall Width 4530 mm
Max Machine Width 4530 mm
Tailswing Radius 3900 mm
Undercarriage Length 6040 mm
Min Cab Height 3480 mm
Max Cab Height 3760 mm
Ground Clearance 470 mm
Superstructure Width 3190 mm
Superstructure With Catwalks 4090 mm
Max Reach 17000 - 18600 mm
Ground Level Reach 17000 - 18600 mm
Max Height 25270 - 28230 mm
Max Reach 12300 - 13200 mm
Ground Level Reach 12300 - 13000 mm
Max Height 15250 - 18220 mm
Max Depth 6250 mm
Capacities
Fuel Tank 720 L
DEF Tank 83 L
Hydraulic Tank 370 L
Hydraulic System 803 L
Engine Oil 57 L
Swing Oil 10 L
Cooling System 69 L
Performance
Slew Speed 4 - 6.4 rpm
Slew Torque 188 kNm
Drawbar Pull 473 - 474 kN
Travel Speed Low 2.7 kph
Travel Speed High 5.3 kph
Hydraulic System
Pump Type Variable axial piston
Main Pumps 2
Max Flow Per Pump 370 L/min
Main Pumps Max Flow 740 L/min
Hydraulic System Max Pressure 343 bar
Boost Pressure 378 bar
Travel Pressure 343 bar
Slew Pressure 260 bar
Attachment Pressure 343 bar
Weights
Operating Weight 76200 - 80700 kg
Ground Bearing Pressure 116 - 123 kPa
Triple Articulated Boom Specification Weight 76200 - 79000 kg
Triple Articulated Boom Ground Pressure 116 - 120 kPa
Demolition Boom Specification Weight 77900 - 80700 kg
Demolition Boom Ground Pressure 118 - 123 kPa
Counterweight 15200 kg
Max Tool Weight For Demolition Boom 3700 - 6100 kg
For more detailed specifications and lifting capacities, please download the brochure
Download brochure
