SL6000S

SL6000S

Large-Sized Crawler Cranes

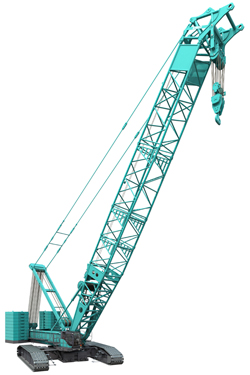

The KOBELCO SL6000S is a super heavy lift lattice boom crawler crane designed for the most demanding lifting applications. It delivers extreme lifting capacity, exceptional stability and flexible configurations, making it ideal for major infrastructure, offshore projects and large industrial installations where maximum power and reliability are critical.

Industry Foundation General lifting Marine
SPECIFICATIONS

Key specifications for SL6000S

Weights
Base Machine Weight 63530 kg
Ground Pressure 142 kPa
Performance
Swing Speed 0.9 rpm
Travel Speed Low 0.6 kph
Travel Speed High 1 kph
Max Line Speed 110 m/min
Rated Line Pull 137 kN
Wire Rope Diameter 28 mm
Main Rope Length 830 m
Hydraulic System
Main Pump Max Flow 7 L/min
Hydraulic System Max Pressure 320 bar
Capacities
Fuel Tank Capacity 600 L
Hydraulic Tank Capacity 710 L
Dimensions
Transportation Width 3000 mm
Transportation Height 3400 mm
Crawler Width 9900 mm
Tail Swing Radius 8340 mm
Shoe Width 1500 mm
Engine
Engine Manufacturer Hino
Engine Model E13C-WY
Engine Power 320 kW
Rated Speed 2000
Displacement 12.913 L
Cooling Water
Aspiration Turbocharged
Charged Air Cooling Intercooler
Main Boom
Main Boom Length 84 m
Main Boom Max Lifting Capacity 450000 kg
Other
Attribute 15340 50000 kg
For more detailed information, please download the brochure and specifications.
